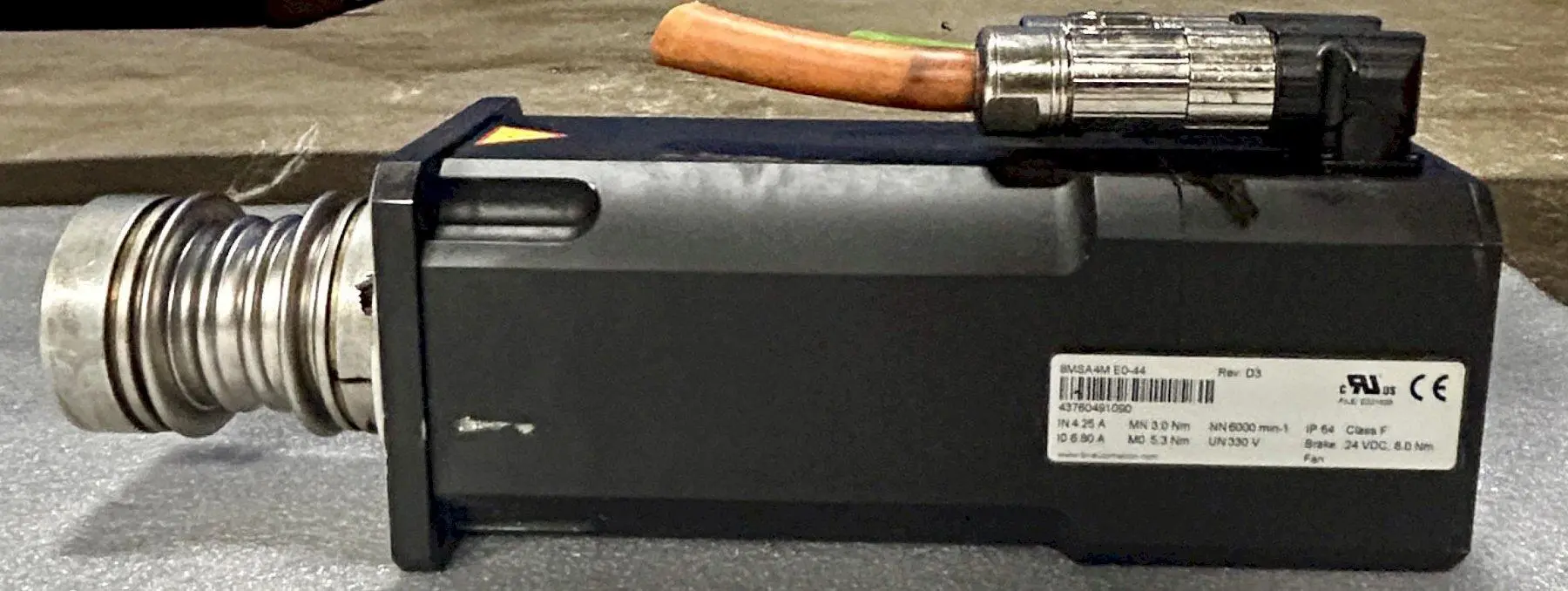

B&R SERVO MOTOR 8MSA4M.E0-44, 6000 RPM, Self-Cooling, Size 4, Medium Rated Torque, 3-Phase Synchronous.
| Current Type | AC | AC |
| Torque (Stall) | 5.3 N | 1.2 lbf |
| Amp (Stall) | 6.8 A | 6.8 A |
| Voltage | 330 V | 330 V |
| Max Speed | 6,000 RPM | 6,000 RPM |
| Power Rating | 1.45 kW | 1.45 kW |
| Motor Phase | 3-Phase | 3-Phase |
| Power | 1.9 hp | 1.4 kW |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Enclosure Rating | IP 64 | IP 64 |
| Encoder | EnDat Single-Turn, 512 lines | EnDat Single-Turn, 512 lines |
| Dimensions | 19" x 9" x 9" | 19" x 9" x 9" |
| Weight | 25 LBS | 25 LBS |
