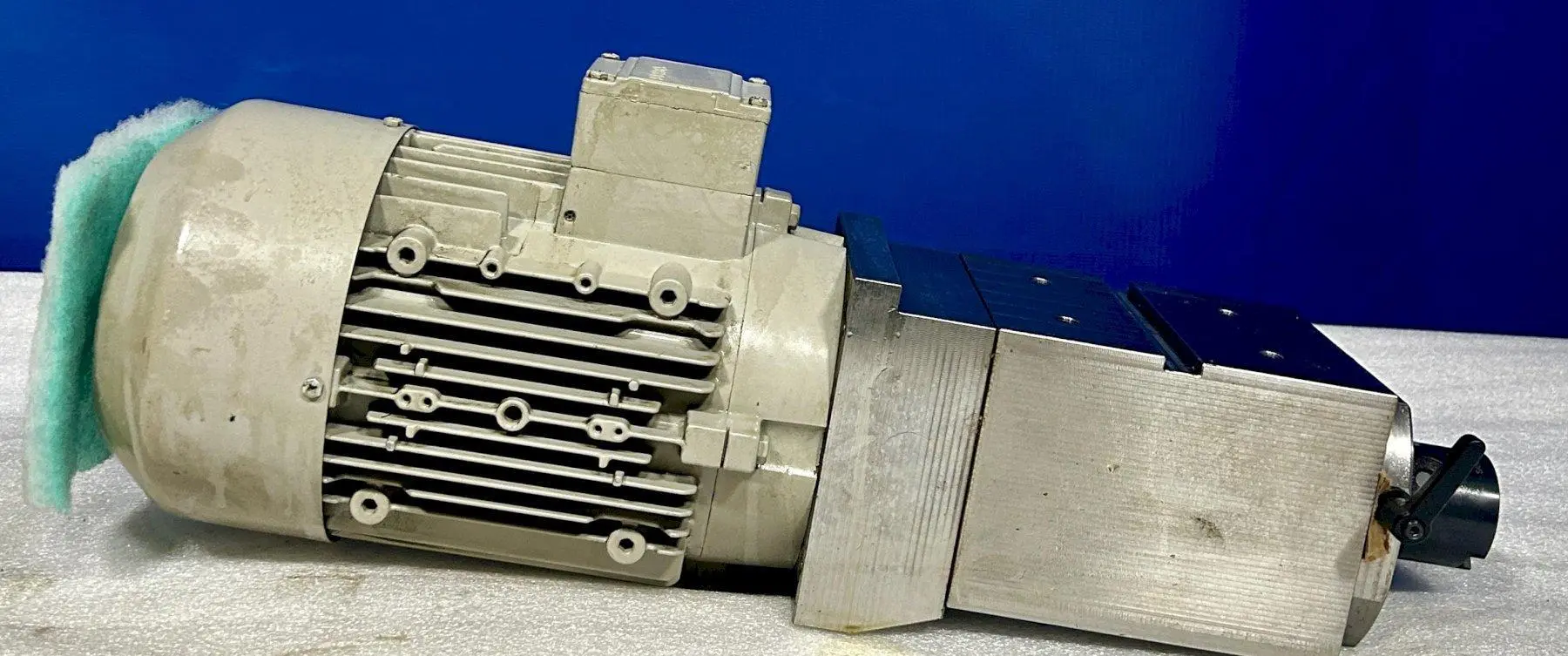

SIEMENS 1LA70904AA12-Z MOTOR, Squirrel Cage, 3-Phase, Low Voltage, 1715 RPM
| AC Motor Type | Induction | Induction |
| Spec Number | 1LA70904AA12-Z | 1LA70904AA12-Z |
| Rated/Full-Load Torque | 7.2 | 7.2 |
| Motor Power | 1.7 hp | 1.7 hp |
| Actual Rated Input Voltage | 460 V | 460 V |
| Full Load Amps | 2.5 A | 2.5 A |
| Base Speed | 1,715 RPM | 1,715 RPM |
| Frame | 090 S | 090 S |
| AC Frequency Rating | 60 Hz | 60 Hz |
| Motor Phase | -3 | -3 |
| NEMA Design Letter | Design A | Design A |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| NEMA-NOM Efficiency | 78.5 | 78.5 |
| Power Factor | 82 | 82 |
| Ambient and Time Rating | 40° C AMB-CONT | 40° C AMB-CONT |
| Enclosure Type | TEFC: Totally Enclosed Fan Cooled | TEFC: Totally Enclosed Fan Cooled |
| Enclosure Rating | IP 55 | IP 55 |
| Mounting Type | Base-Mounted | Base-Mounted |
| Dimensions | 25" x 11" x 12" | 25" x 11" x 12" |
| Weight | 85 LBS | 85 LBS |
Rated/Full-Load Torque: 7.2 Nm
Motor Power: 1.30 kW
Actual Rated Input Voltage: 460 V Y
Full Load Amps: 2.50 A
Base Speed: 1,715 RPM
Frame: 090 S
AC Frequency Rating: 60 Hz
Motor Phase: 3-Phase
NEMA Design Letter: Design A
Insulation Class: F (Max 155° C / 311° F)
NEMA-NOM Efficiency: 78.5%
Power Factor: 82%
Ambient and Time Rating: 40° C AMB-CONT
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Enclosure Rating: IP 55
Current Type: AC
Mounting Type: IM B14
Discontinued by Manufacturer?: yes
Approximate Dimensions: 25" x 11"
Approximate Height: 12"
Approximate Weight: 85 LBS
