USED Grundfos MTR 15-16/5 A-WB-A-HUUV
USD $650.00
Overview
Description

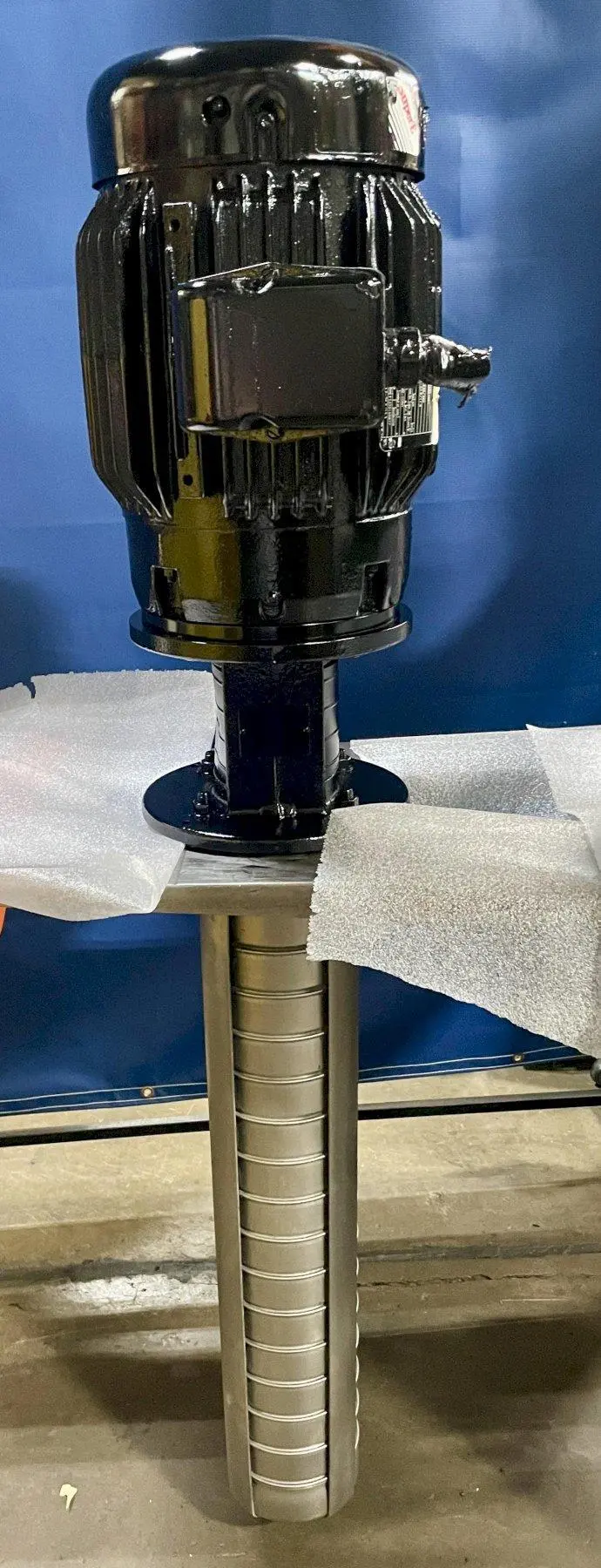

GRUNDFOS COOLANT PUMP, Mdl MTR 15-16/5 A-WB-A-HUUV, Baldor Motor 10 HP, 07H409W279G1, 3525 RPM.
Specifications
| Flow Rate | 90.2 US gpm | 341.4 L/min. |
|---|---|---|
| Head | 240' | 73.2 m |
| Chambers | 16 | 16 |
| Impellers | 5 | 5 |
| Code for Shaft Seal | HUUV | HUUV |
| Pump Housing Material | Cast Iron | Cast Iron |
| Impeller Material | Stainless Steel | Stainless Steel |
| Max Operating Pressure | 362.6 PSI | 25 bar |
| Immersion Depth (Pump Depth) | 31.8" | 807.72 mm |
| Type of Connection | NPT(F) | NPT(F) |
| Size of Outlet Connection (Discharge) | 2" | 50.8 mm |
| Frequency | 60 Hz | 60 Hz |
| Motor Phase | -3 | -3 |
| Insulation Class | F (Max 155° C / 311° F) | F (Max 155° C / 311° F) |
| Motor Power | 10 hp | 7.5 kW |
| Motor Speed | 3,525 RPM | 3,525 RPM |
| Motor Frame | 213TC | 213TC |
| Amperage | 24.8/11.9 A | 24.8 A |
| Voltage | 208-230/460 V | 208 V |
| Discontinued by Manufacturer? | Yes | Yes |
| Dimensions | 12" x 12" x 55" | 12" x 12" x 55" |
| Weight | 235 LBS | 235 LBS |
Equipped With
Baldor Reliance SuperE Motor, Cat No 85600H22
