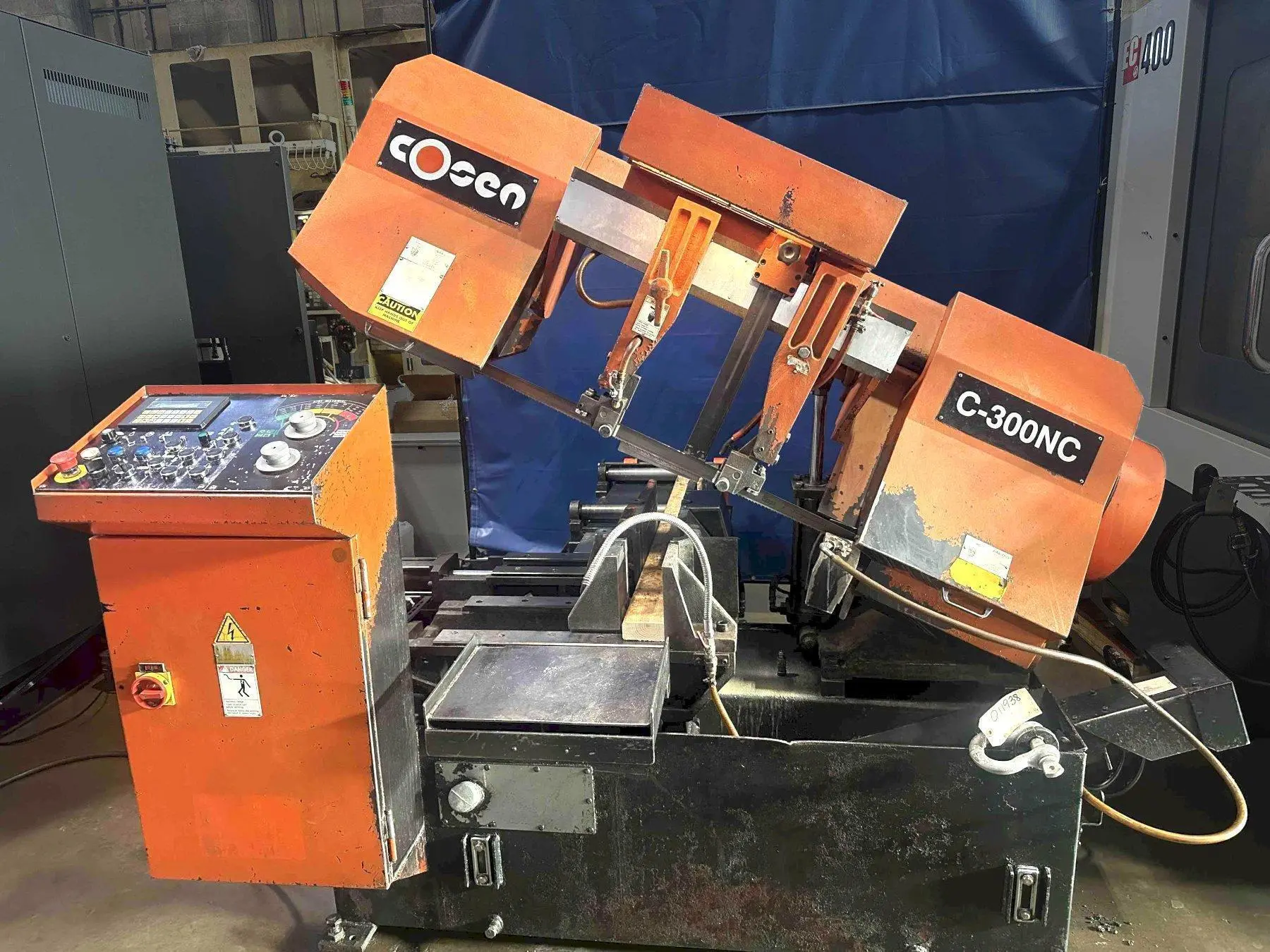

USED 2010 Cosen C-300NC

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Horizontal Band Saws

12" x 14" COSEN AUTOMATIC HORIZONTAL BAND SAW, Model C-300NC, Taian PLC Control, 12" x 14" Rectangular Capacity, 12" Round Capacity, Hydraulic Vise, 5 HP, 328 FPM, Coolant Pump, Auger Chip Removal, Stock Conveyor, New 2010.

Specs
Nominal Capacity (H)
11.8"
299.72 mm
Nominal Capacity (W)
13.4"
340.36 mm
Round Capacity
11.8"
299.72 mm
Square Capacity
11.8"
299.72 mm
Type (Auto, Manual, Semi)
Auto
Auto
Blade Speeds
66 - 330 ft/min.
66 - 330 ft/min.
Blade Length
150"
3,810 mm
Max Blade Width
1.3"
33.02 mm
Blade Thickness
0.043"
1.0922 mm
Vise
Hydraulic Controlled
Hydraulic Controlled
Blade Guides
Carbide (Interchangeable)
Carbide (Interchangeable)
Blade Tension
Hydraulic
Hydraulic
Blade Drive Power
5 hp
3.7 kW
Electrics
220/3/60
220/3/60
Dimensions
85" x 81.7" x 75"
85" x 81.7" x 75"
Weight
3,900 LBS
3,900 LBS

Blade Drive Horsepower: 5 HP
Hydraulic Pump: 1 HP
Blade Thickness: 0.043" / 1.1 mm

Equipped With

Taian PLC Control, Fully Automatic Band Saw with Hydraulically Controlled Vises, 12" x 14" Rectangular Capacity, 12" Round Capacity, 12" Square Capacity, 66-330 FPM Blade Variable Blade Speed, 11.9 Gallon Coolant Capacity, Hydraulic Blade Tension (Adjustable), 11.9 Gallon Coolant Capacity & Pump, Chip Auger.
