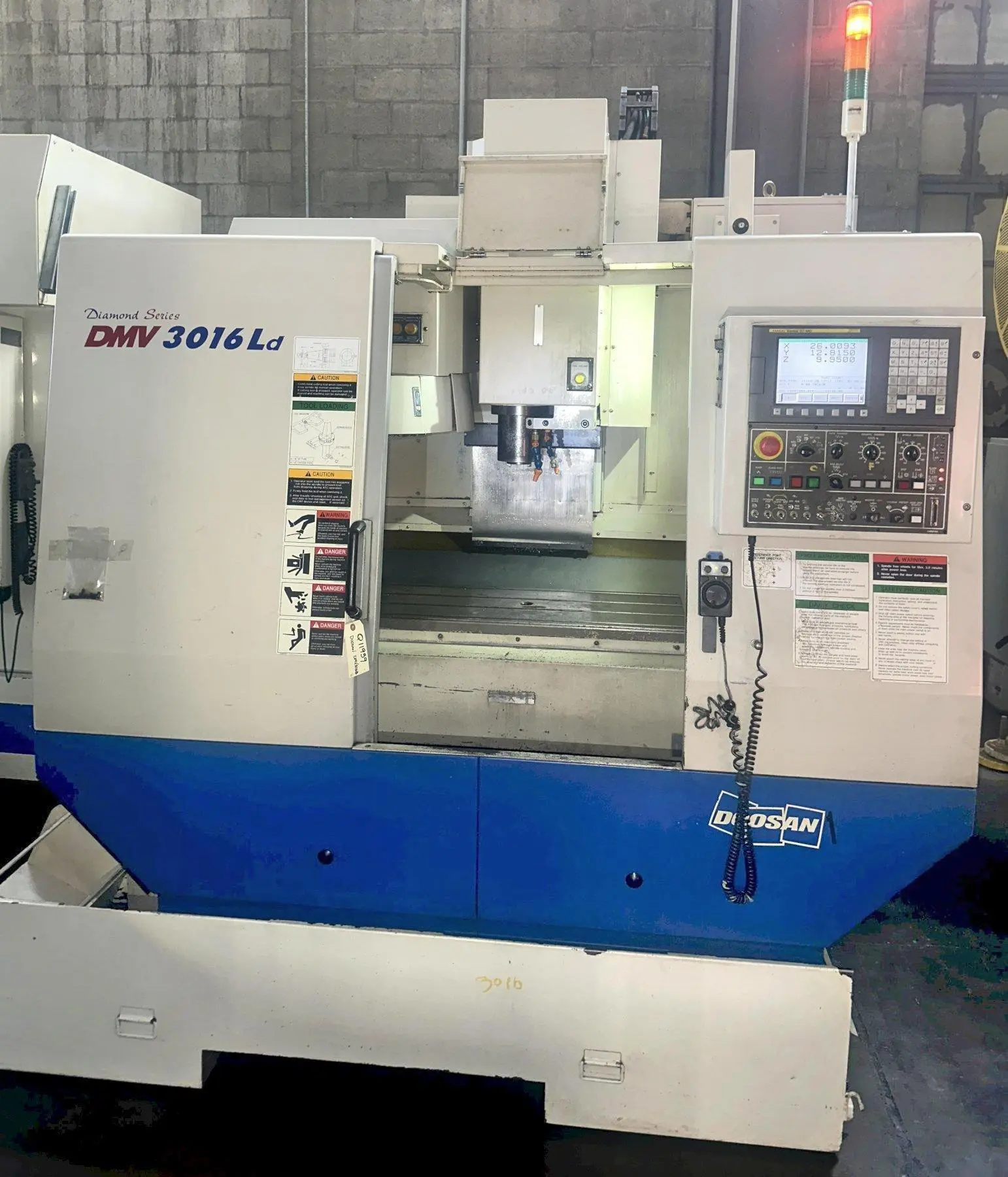

USED 2007 Doosan DMV3016LD

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Vertical Machining Centers

Daewoo Doosan DMV3016Ld CNC Vertical Machining Center, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.

Specs
CNC Control
Fanuc Oi-MC CNC
Fanuc Oi-MC CNC
# Axis
3
3
Table-L
39.4"
1,000.8 mm
Table-W
17.7"
449.58 mm
Max Table Load Capacity
1,320 lb
598.7 kg
X-Axis (Longitudinal Travel)
30"
762 mm
Y-Axis (Cross Travel)
16"
406.4 mm
Z-Axis (Vertical Travel)
20"
508 mm
Max Clearance Tabletop to Spindle Nose
26"
660.4 mm
Min Clearance Tabletop to Spindle Nose
5.9"
149.86 mm
Feed Rates (X, Y, & Z Axis)
.04 - 315 in/min.
8 m/min.
X-Axis Rapid Traverse Rate
1,181 in/min.
30 m/min.
Y-Axis Rapid Traverse Rate
1,181 in/min.
30 m/min.
Z-Axis Rapid Traverse Rate
945 in/min.
24 m/min.
Spindle Power
15 hp
11.2 kW
Max Spindle Speed
8,000 RPM
8,000 RPM
Spindle Taper
CAT 40
CAT 40
Torque, Up To
102 lbf
453.7 N
Automatic Tool Changer Capacity (ATC)
20
20
Automatic Tool Changer Style
Direct Load Camless
Direct Load Camless
Electrics
205-235/3/60
205-235/3/60
Dimensions
90" x 95" x 122"
90" x 95" x 122"
Weight
12,320 LBS
12,320 LBS
Equipped With

Fanuc Oi-MC CNC Control, 40" x 18" Table, 8000 RPM Spindle, Flood Coolant, Chip Pans & Coolant System.
