Used

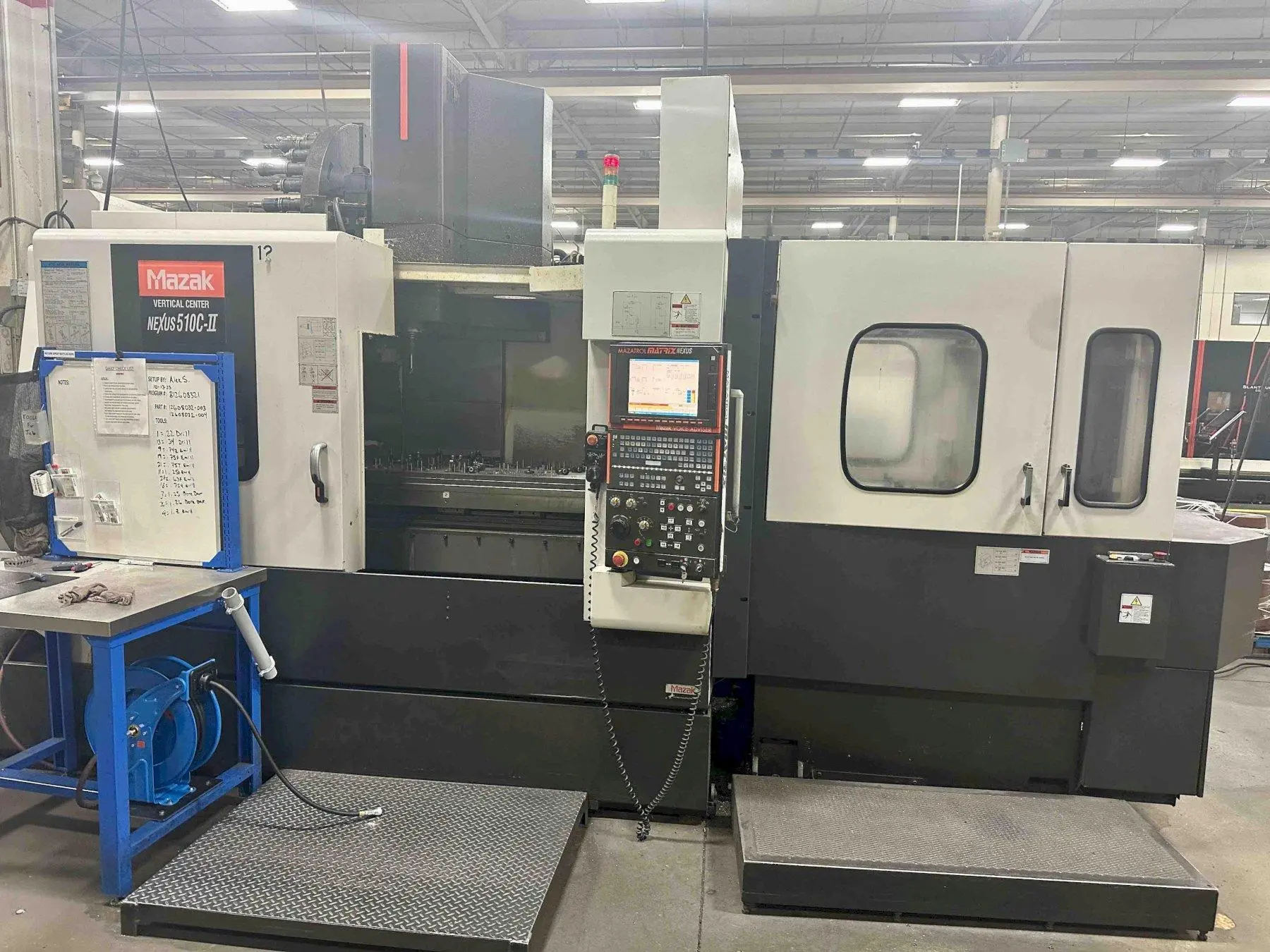

USED 2006 Mazak VCN-510C-II

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Vertical Machining Centers

MAZAK NEXUS 510C CNC VERTICAL MACHINING CENTER, Model VCN-510C-II, Mazatrol Nexus CNC Control, 51" x 21" Table with Pallet Shuttle, X=41.3", Y=20.8", Z=20", CAT 40 Taper, 25 HP, 12000 Max Spindle RPM, 30 ATC, TSC, Chip Conveyor & Coolant System, New 2006.

Specs
CNC Control
Mazatrol Nexus CNC
Mazatrol Nexus CNC
# Axis
3
3
Table-L
51.18"
1,300 mm
Table-W
21.65"
549.91 mm
Max Table Load Capacity
2,640 lb
1,197.5 kg
X-Axis (Longitudinal Travel)
41.34"
1,050 mm
Y-Axis (Cross Travel)
20.87"
530.1 mm
Z-Axis (Vertical Travel)
20.08"
510.03 mm
Max Clearance Tabletop to Spindle Nose
27.16"
689.86 mm
Min Clearance Tabletop to Spindle Nose
7.9"
200.66 mm
Feed Rates (X, Y, & Z Axis)
1,400 in/min.
35.6 m/min.
Rapid Traverse Rate (X, Y, & Z Axis)
1,400 in/min.
35.6 m/min.
Spindle Power
25 hp
18.6 kW
Max Spindle Speed
12,000 RPM
12,000 RPM
Spindle Taper
CAT 40
CAT 40
Coolant Through Spindle
Yes
Yes
Automatic Tool Changer Capacity (ATC)
30
30
Automatic Tool Changer Style
Side-Mount Swing Arm
Side-Mount Swing Arm
Dimensions
118" x 142" x 108"
118" x 142" x 108"
Weight
15,200 LBS
15,200 LBS
Equipped With

Mazatrol Nexus CNC Control, Mazak's 2 Station Pallet Shuttle System, 30 Station Automatic Tool Changer, Through Spindle Coolant, Chip Conveyor & Coolant System.
