USED 1984 GER RHC-450

Ohio, United States
Great American Equipment Company is a Worldwide Stocking Dealer of Used and Surplus Metal Working Machine Tools. Family Owned and Operated, We Have Been in The Used Machinery Business Since 1984.
Overview
Universal Cylindrical Grinders

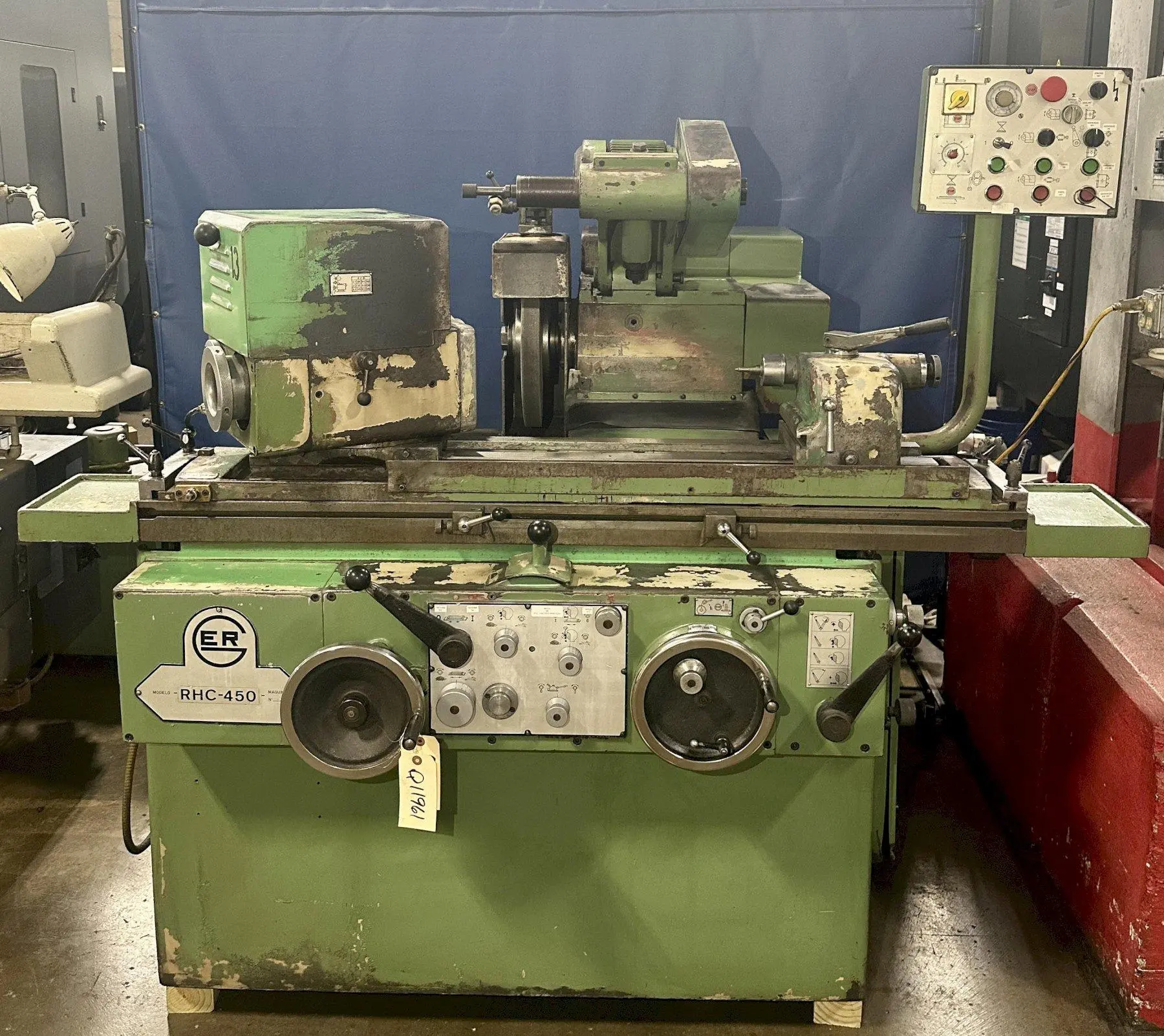

10" x 18" GER RHC-450 UNIVERSAL CYLINDRICAL GRINDER, 10" Swing, 17.717" Between Centers, 14" Diameter Wheel, Swivel Workhead and Table, Swing Down ID Spindle, Tailstock, New 1984.

Specs
Swing Down Internal Attachment
Yes
Yes
Max Swing Over Table
10"
254 mm
Max Distance Between Centers
17.717"
450.01 mm
Max Grinding Wheel Diameter
14"
355.6 mm
Wheelhead Speed (Grinding Wheel)
1,500 or 1,860 RPM
1,860 RPM
Workhead Swivel Range
90°
90°
Workhead Speed
60, 85, 125, 190, 280, 400 RPM
400 RPM
Table Swivel Angle Toward Wheelhead
Table Swivel Angle Away From Wheelhead
Electrics
460/3/60
460/3/60
Dimensions
78" x 68" x 65"
78" x 68" x 65"
Weight
4,500 LBS
4,500 LBS
Equipped With

Dropdown ID Spindle Attachment, Tailstock, Coolant Tank & Pump.
