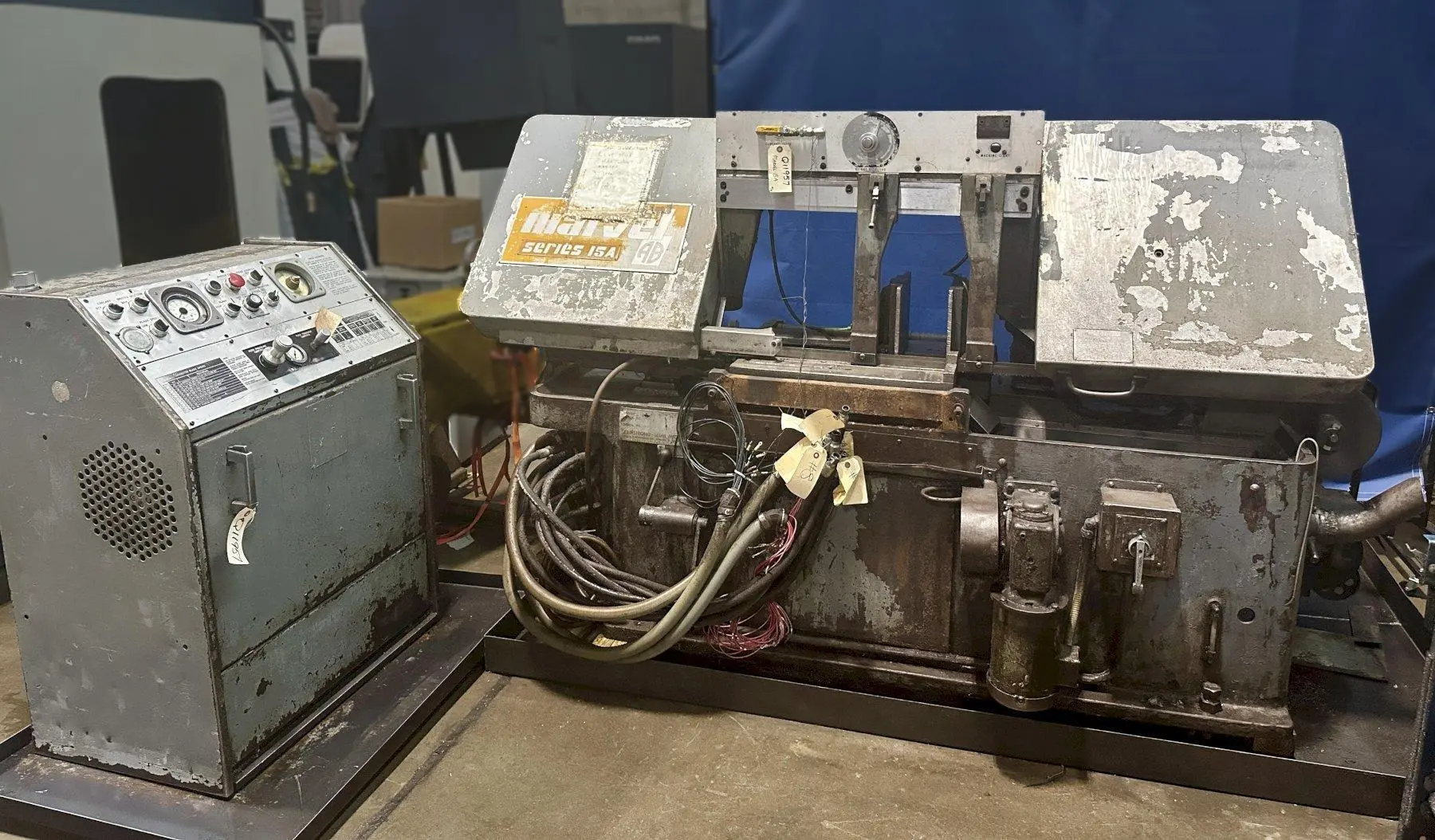

MARVEL 15A HORIZONTAL BANDSAW, Automatic Stock Infeed (2) Vises, 15" x 20" Capacity, 5 HP Drive Motor, 55-400 FPM, Coolant System, New 1981.
| Nominal Capacity (H) | 15" | 381 mm |
| Nominal Capacity (W) | 20" | 508 mm |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Speeds | 55 - 400 FPM | 55 - 400 FPM |
| Blade Length | 15'6"/186" | 4,724.4 mm |
| Max Blade Width | 1.25" | 31.75 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Vise | Hydraulic Vises | Hydraulic Vises |
| Blade Guides | Carbide Faced Blade Guides | Carbide Faced Blade Guides |
| Blade Drive Power | 5 hp | 3.7 kW |
| Electrics | 220/440/3/60 | 220/440/3/60 |
| Dimensions | 132" x 82" x 74" | 132" x 82" x 74" |
| Weight | 7,500 LBS | 7,500 LBS |
Hydraulic Feed, Compensation, Infinitely Variable: 0 - 200 LBS
Shuttle Type Automatic Bar Feed Length: 120"
Feed Stroke Multi-Cycle (per Cycle): 0 - 24"
Max Bar Feed Load Capacity: 7,000 LBS
Hydraulic Pump Horsepower: 2 HP
Automatic Stock Infeed w/Programmable Lengths, 10' Automatic Conveyor Feed, 40" 'Heavy Duty' Discharge Table, (2) Automatic Hydraulic Vises, Micrometer Dial Setting, Quick Adj. Blade Guide Arms, Carbide Faced Blade Guides, Work Height Selector, Hydraulic Down Feed Compensator Controls, Coolant System, Automatic Chip Auger.
