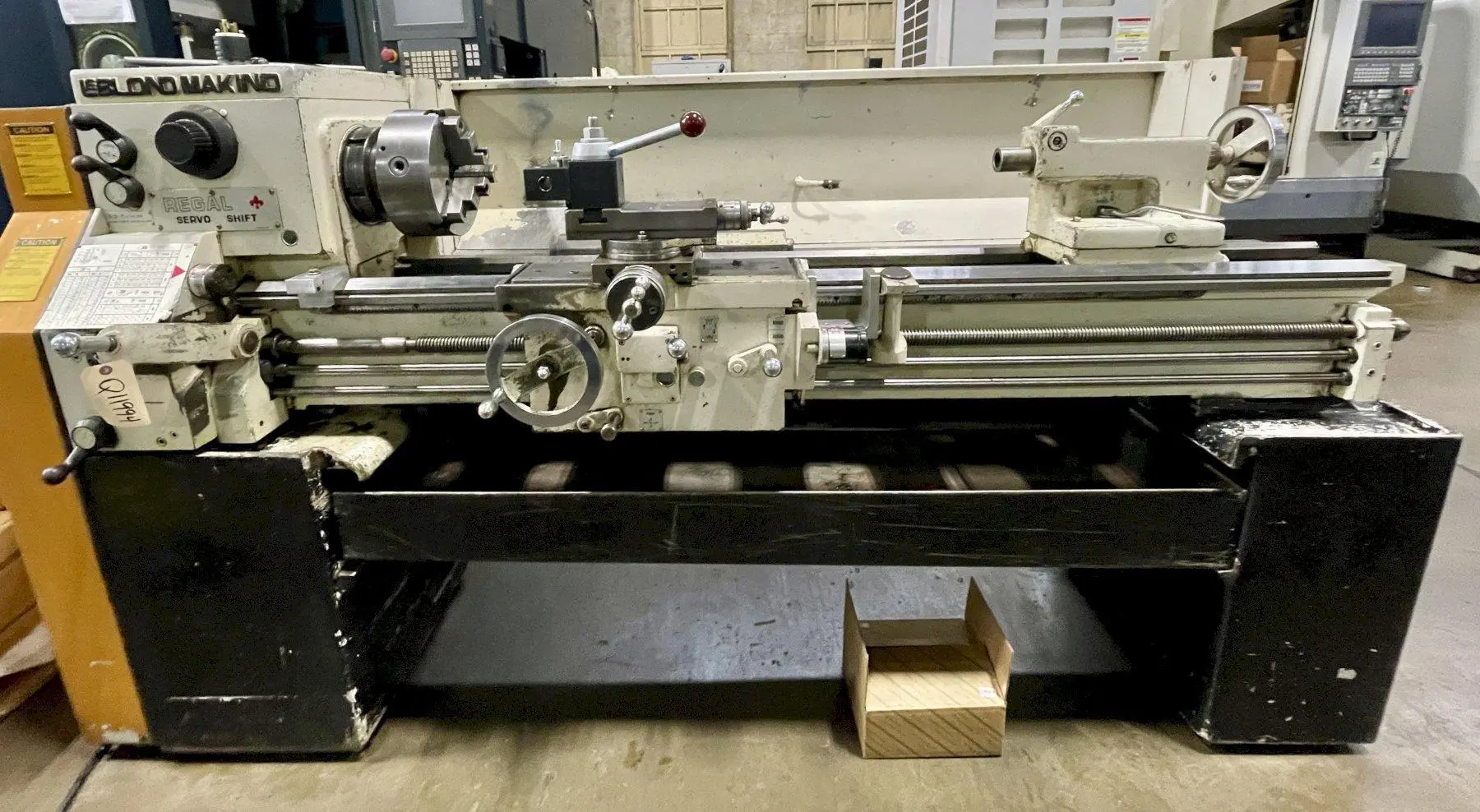

15" x 54" LEBLOND MAKINO REGAL SERVO-SHIFT ENGINE LATHE, Model 14C, 10" 3-Jaw Chuck, CXA Wedge-Type Tool Post, 16" Swing, 2.25" Thru Hole, Tailstock w/ 54" Between Centers, Inch/Metric Threading, New 1984.
| Max Swing Over Bed | 15.5" | 393.7 mm |
| Max Swing Over Cross Slide | 9.5" | 241.3 mm |
| Distance Between Centers | 54" | 1,371.6 mm |
| Bed Width | 12.188" | 309.56 mm |
| Cross Slide Travel | 7.875" | 200.02 mm |
| Chuck Size | 10" 3 Jaw | 254 mm |
| Spindle Nose | L-1 | L-1 |
| Spindle Through Hole | 2.25" | 57.15 mm |
| # of Spindle Speeds | 14 | 14 |
| Spindle Speeds Range | 45 to 1,800 RPM | 0 RPM |
| # of Threads - Inch | 48 | 48 |
| Inch Threads | 2 to 112 TPI | 2 to 112 TPI |
| # of Feeds | 48 | 48 |
| Longitudinal Feeds Range | .0018" to .104 IPR | 2.6 mm/rev |
| Tailstock Spindle Travel | 5" | 127 mm |
| Taper of Tailstock Center | #4 MT | #4 MT |
| Tailstock Spindle Diameter | 1.9375" | 49.213 mm |
| Main Motor Power | 7.5 hp | 5.6 kW |
| Electrics | 230/3/60 | 230/3/60 |
| Dimensions | 44" x 110" x 54" | 44" x 110" x 54" |
| Weight | 3,260 lbs | 3,260 lbs |
Hard and Ground Steel Bed Ways, Inch/Metric Threading, Thread Chasing Dial, 10" 3-Jaw Cushman Chuck, Brand New CXA wedge Type Tool Post with (5) Holders, Tailstock, Chip Pan.
