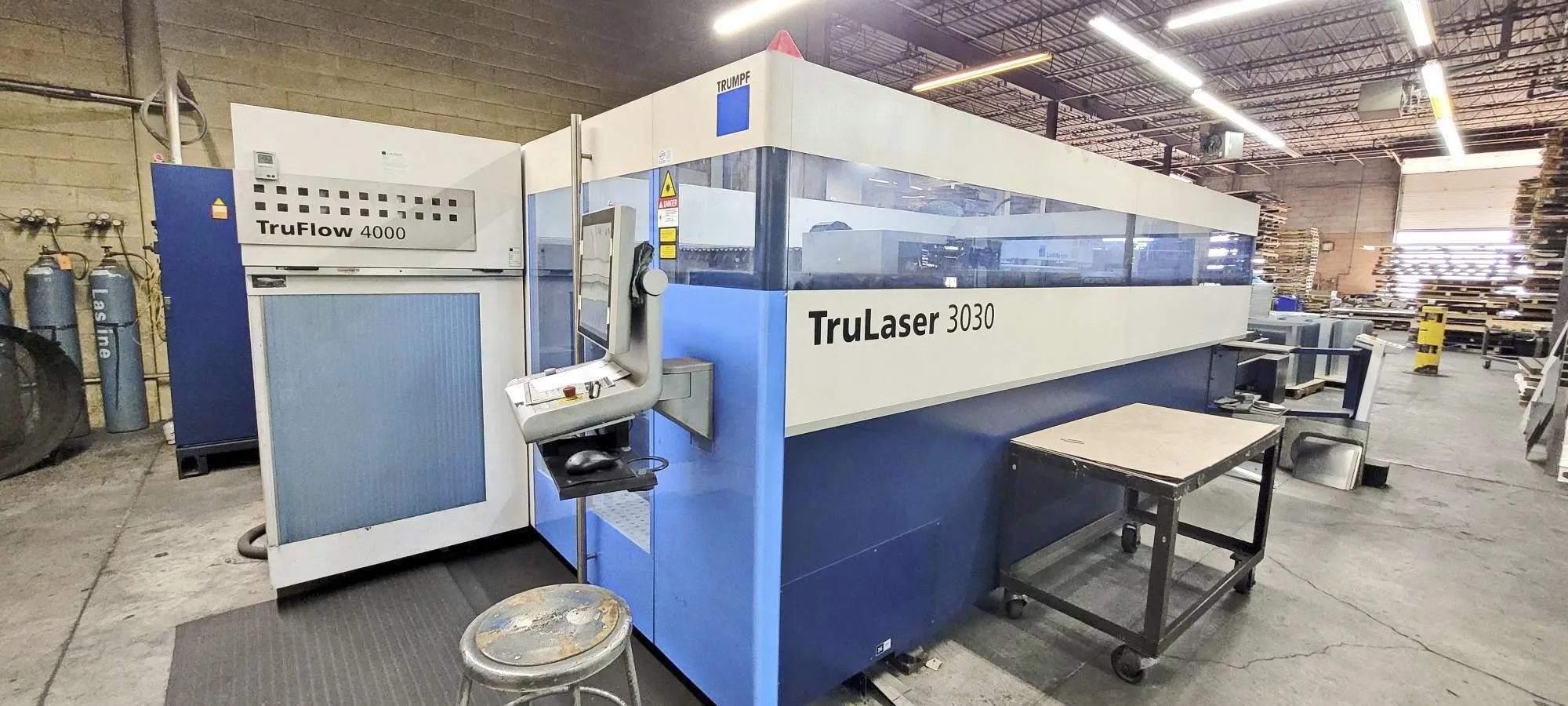

2013 Trumpf TruLaser 3030 CO2 CNC Laser Cutting Machine, TruFlow 4000 Watt Laser, Loadmaster, Automatic Pallet Changer, Riedel Chiller, Automatic Nozzle Change, Linear Drive Technology
| Wattage | 4000 w | 4,000 W |
| Sheet-W | 60" | 1,524 mm |
| Sheet-L | 120" | 3,048 mm |
| X-Axis | 118" | 2,997.2 mm |
| Y-Axis | 59" | 1,498.6 mm |
| Z-Axis | 4.5" | 114.3 mm |
| Max Speed (X, Y) | 3346 mpm | |
| Max Speed Simultaneous | 4,600 in/min. | 116.8 m/min. |
| Max Sheet Weight | 1,984 lb | 899.9 kg |
| Max Sheet Thickness (Steel) | 0.79" | 20.066 mm |
| Max Sheet Thickness (Stainless) | 0.59" | 14.986 mm |
| Max Sheet Thickness (Aluminum) | 0.39" | 9.906 mm |
| Max Sheet Thickness (Brass) | 0.31" | 7.874 mm |
| Max Sheet Thickness (Copper) | 0.31" | 7.874 mm |
| Made In | United States | United States |
| Control | CNC (Trumpf Siemens CNC) | CNC (Trumpf Siemens CNC) |
| Dimensions | 354" X 197" X 87" | 354" X 197" X 87" |
| Weight | 30,864 lb | 30,864 lb |
Machine on - 35,700 hrs
Beam on - 16,100 hrs
TruFlow 4000 4kW CO₂ laser
Trumpf Loadmaster
Automatic pallet changer
Riedel chiller
Automatic nozzle change
Programmable gas selection
Linear drive technology
