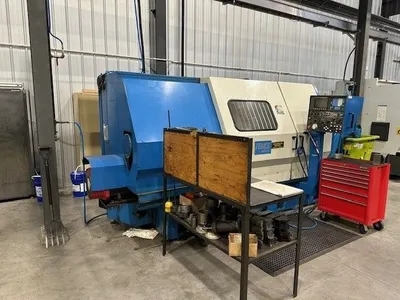

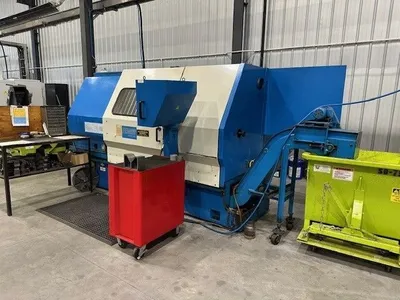

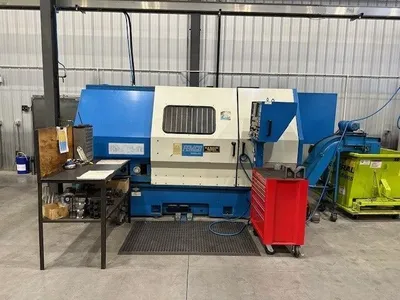

USED 1997 FEMCO WNCL 35/110
Overview
Specifications
| Swing | 24" | 609.6 mm |
|---|---|---|
| Machining Length | 42" | 1,066.8 mm |
| # Axis | 2 | 2 |
| Chuck Size | 18" | 457.2 mm |
| Bar Capacity | 4.53" | 115.06 mm |
| Power | 35 hp | 26.1 kW |
| Max RPM | 2,500 RPM | 2,500 RPM |
| Turning Dia | 24" | 609.6 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Fanuc O-T) | CNC (Fanuc O-T) |
| Dimensions | 198" x 88" x 81" | 198" x 88" x 81" |
| Weight | 17,500 lbs | 17,500 lbs |
Specifications (subject to buyer verification):
Turning Diameter: 24"
Turning Length: 42"
Bar Capacity: 4.53"
Spindle Speed: 25-2,500 RPM
Spindle Motor: 35 HP

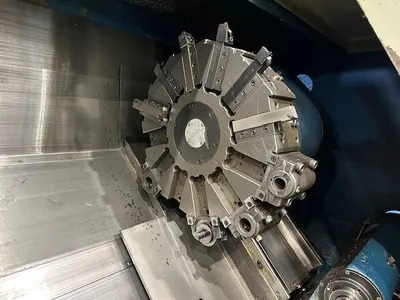

Turret: 12-station
Rapid Traverse (X/Z): 472 / 591 IPM
X Axis Travel: 13.4”
Z Axis Travel: 43.21”
Spindle Nose: A2-11

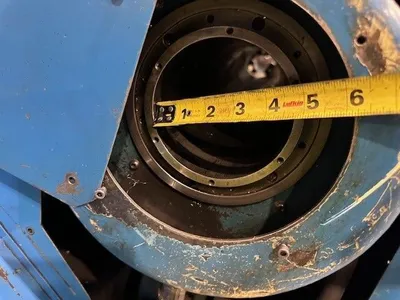

Spindle Bore: 5.2"

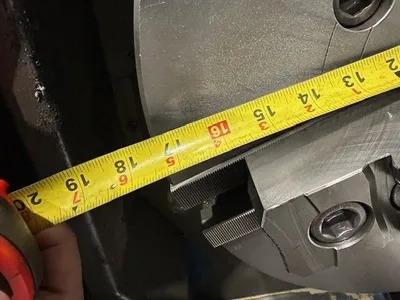

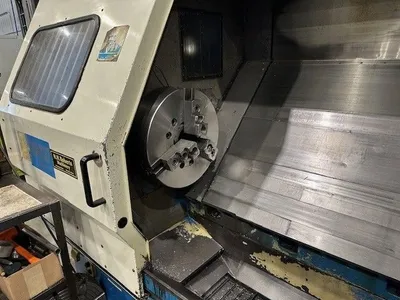

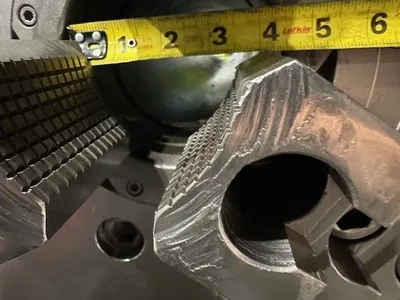

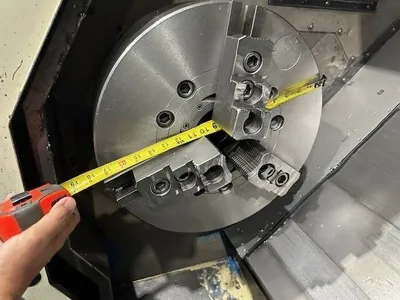

Chuck Size: 18" Hydraulic
Power Source: 220 Volt/ 3 Phase/ 60 HZ
Machine Dimensions: 148” x 88” x 81”
Chip Conveyor Dimensions: 132” x 48” x 81”
Overall Dimensions: 198” x 88” x 81”
Weight: 17,500 lbs
Equipped With
Equipped With (subject to buyer verification):

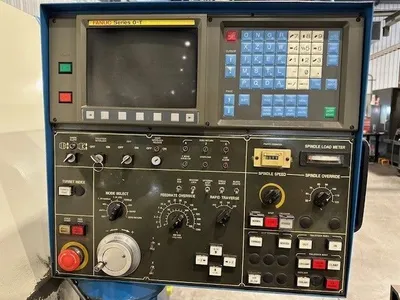

Fanuc O-T Controller

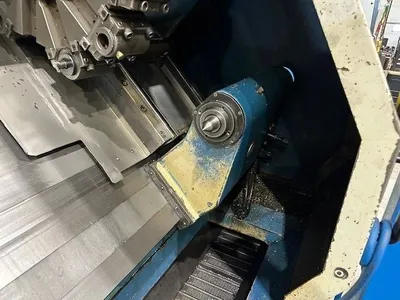

Tailstock

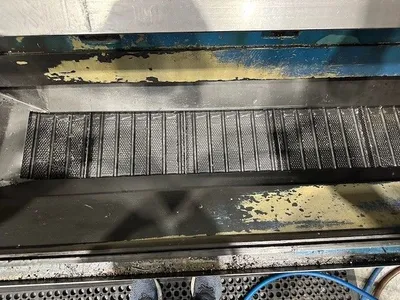

Chip Conveyor
