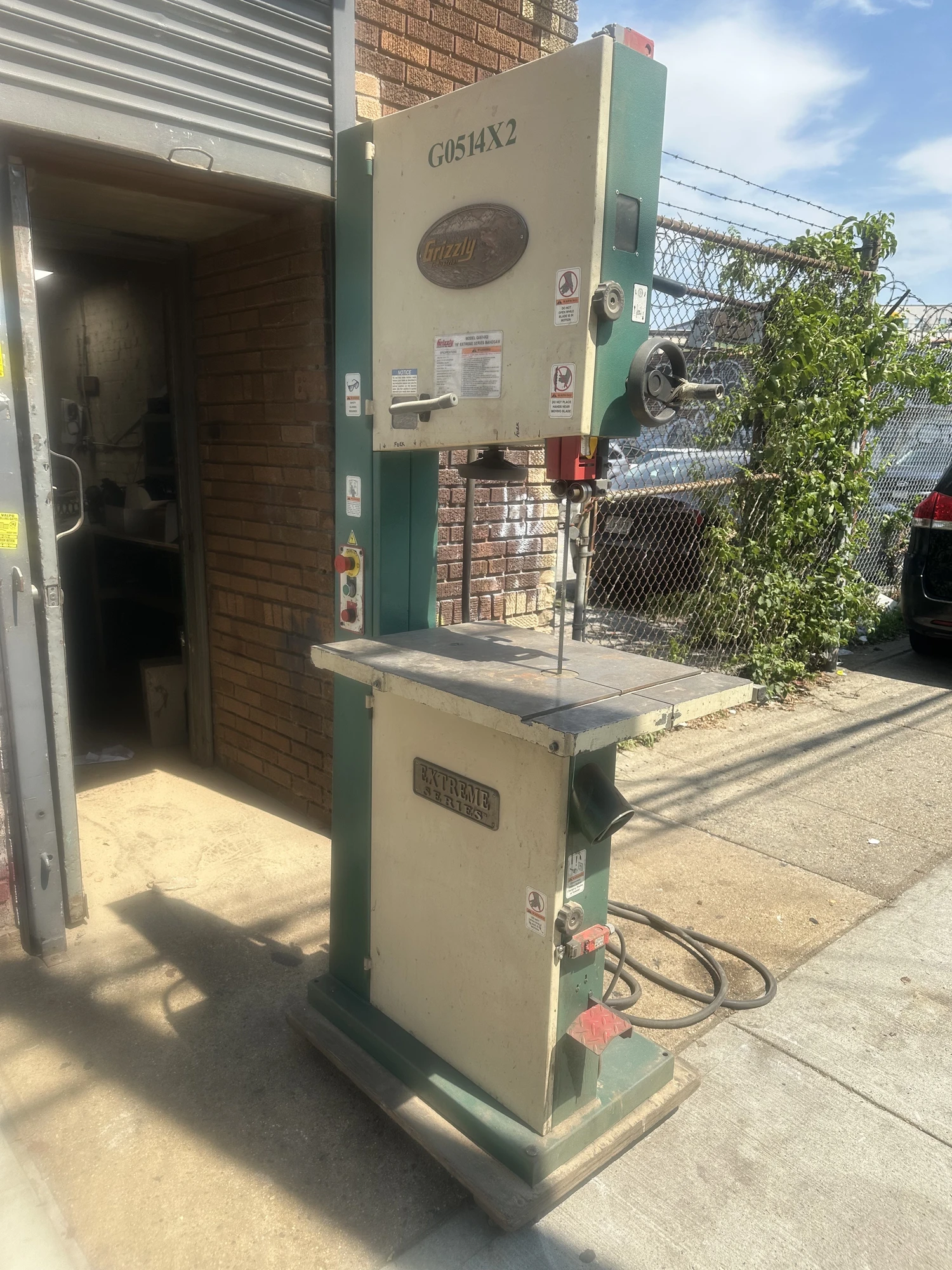

USED 2005 GRIZZLY G0514X2
Overview
SPECIFICATIONS:
Motor: 3 HP, 220V, single-phase, 12A, TEFC capacitor start induction, 60 Hz
RPM: 1725
Precision-ground cast-iron table
Table size: 26-3/4" x 19" x 1-1/2" thick
Floor to table height: 37-1/2"
Cutting capacity/throat: 18-1/4"
Maximum cutting height: 12"
Blade size: 143" long
Blade width range: 1/8" - 1-1/4"
2 Blade speeds: 1700, 3500 FPM
Wheels: fully balanced cast-iron with polyurethane tires
Wheel covers: pre-formed, hinged steel
Blade guides: dual ball-bearing with full enclosure protection
Bearings: sealed and permanently lubricated
Footprint: 29-1/2" x 17-3/4"
Overall size: 76" H x 36" W x 32" D
Approximate shipping weight: 480 lbs.
FEATURES:
Blade tension indicator
Micro-adjusting geared table tilting mechanism
Height scale measurement
Fence with scale and magnifying window
Deluxe cast-iron fence with extruded-aluminum re-saw fence
Miter gauge
4" dust port x 2
Table tilt 5° left, 45° right
Quick-change blade release/tensioning
Rack and Pinion upper guide adjustment
Foot brake
Cast-iron trunnion
Includes 3/4" 6-TPI blade
Specs
CSA certified meeting CSA C22.2 #71.2-10 and UL 987-7th standards!
SPECIFICATIONS:
Motor: 3 HP, 220V, single-phase, 12A, TEFC capacitor start induction, 60 Hz
RPM: 1725
Precision-ground cast-iron table
Table size: 26-3/4" x 19" x 1-1/2" thick
Floor to table height: 37-1/2"
Cutting capacity/throat: 18-1/4"
Maximum cutting height: 12"
Blade size: 143" long
Blade width range: 1/8" - 1-1/4"
2 Blade speeds: 1700, 3500 FPM
Wheels: fully balanced cast-iron with polyurethane tires
Wheel covers: pre-formed, hinged steel
Blade guides: dual ball-bearing with full enclosure protection
Bearings: sealed and permanently lubricated
Footprint: 29-1/2" x 17-3/4"
Overall size: 76" H x 36" W x 32" D
Approximate shipping weight: 480 lbs.
FEATURES:
Blade tension indicator
Micro-adjusting geared table tilting mechanism
Height scale measurement
Fence with scale and magnifying window
Deluxe cast-iron fence with extruded-aluminum re-saw fence
Miter gauge
4" dust port x 2
Table tilt 5° left, 45° right
Quick-change blade release/tensioning
Rack and Pinion upper guide adjustment
Foot brake
Cast-iron trunnion
Includes 3/4" 6-TPI blade
Equipped With
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
*Preliminary equipment descriptions are intended only as a guide, items of importance should be verified by the buyer-
Freight charges are not included in sale price. Freight scheduling and costs are responsibility of the buyer. Packaging charges to ensure safety of equipment during transport for arrival on buyers truck will be added when applicable.
