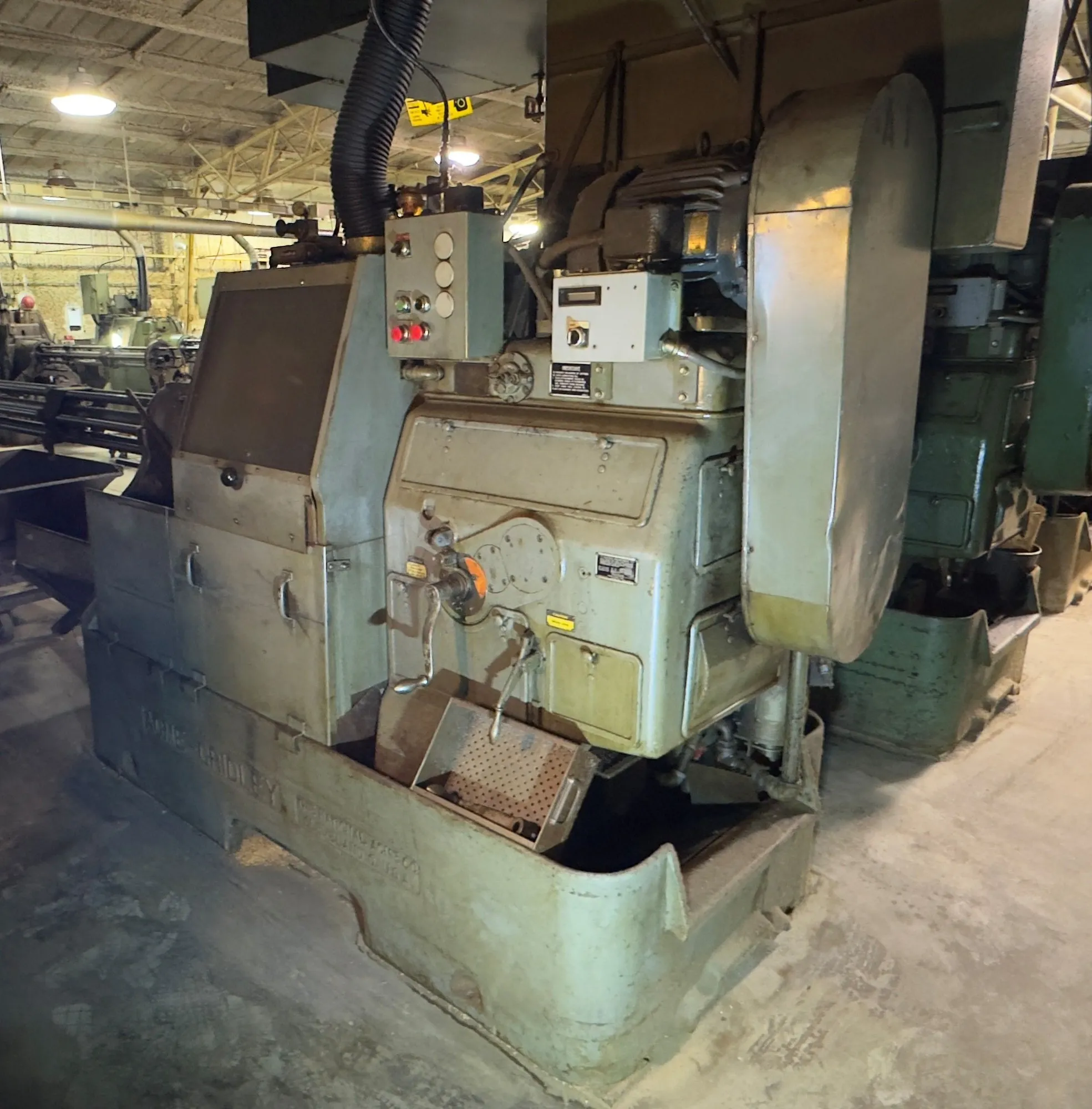

ACME GRIDLEY 1" RA Automatic Bar Machine, used condition. Max collet capacity: Round 1", Square 45/64", Hex 55/64". Spindle speeds: 239-2383 RPM, 15 HP motor. Weight 11,300 lbs. Dimensions: 19' 2.5" L x 3'7" W. Ideal for precision machining tasks.
Equipped with:
Chip Auger
External Pump
SPECIFICATIONS:
MAXIMUM COLLET CAPACITY:
ROUND......................................................... 1"
SQUARE........................................................ 45/64"
HEXAGON....................................................... 55/64"
MAXIMUM LENGTH STANDARD:
STOCK FEED.................................................... 5
TURNING....................................................... 5
RANGE OF SPINDLE SPEEDS:
MINIMUM RPM................................................... 239
MAXIMUM RPM................................................... 2383
MOTOR HORSEPOWER.............................................. 15
RPM OF DRIVE PULLEY........................................... 1750
STANDARD THREADING SPEEDS COMPARED WITH WORK SPINDLE SPEEDS:
FAST RIGHT HAND (SLOWER THAN SPINDLE).........................
SLOW RIGHT HAND (SLOWER THAN SPINDLE)......................... .218
LEFT HAND OR BACK OFF (FASTER THAN SPINDLE)................... .543
REAMING AND DIE SLIDE LEVER THROW RATIOS:
BOTTOM HOLE................................................... 2.85 TO 1
TOP HOLE...................................................... 1 TO 1
NET WEIGHT.................................................... 11,300
DIMENSIONS.................................................... 19' 2 1/2" L X 3'7" W
Equipped with:
6 Position Gatlin Gun Bar Feeder
Voltage: 230/460
Chip Auger
External Pump
Sold: "As Is, Where Is"
