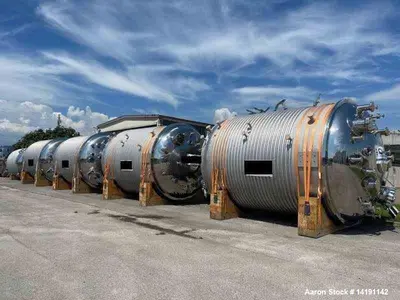

Unused 12,500-Gallon 316L Stainless Steel Reactor by Over

Unused Stainless Steel Reactor, 12500 Gallon. Manufactured by Over. 316L stainless steel construction. Internal MAWP 87 psi @ 400F. Halfpipe jacket MAWP 174 psi @ 400F. 2" Internal Coil rated MAWP 174PSI/FV @ 400F. Sanitary polished internal and exterior top shell. Dome top and bottom with 2" Center bottom outlet. Top flange and (4) internal baffles with vortex breaker. Does not include motor and agitator. 20" top manway. (4) Lug mounted. 243"OAH x 133"ID. National Board and PED (Double certification). Built 2024. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Manufacturer Information

Manufacturer: Over Srl

Country: Italy

Specialty: Custom-designed reactors and processing systems for pharmaceutical, food, chemical, and biotech industries.

Product Description
This unused 12,500-gallon 316L stainless steel reactor, manufactured by Over Srl in 2024, is designed for hygienic and high-performance processing. It features a polished internal and external top shell, dome-shaped top and bottom, and is equipped with a 2" center bottom outlet. The reactor includes a halfpipe jacket and a 2" internal coil, both rated at 174 PSI at 400°F, making it suitable for rigorous thermal control applications. The vessel includes a 20" top manway, four internal baffles with a vortex breaker, and is lug-mounted for structural stability. Motor and agitator are not included.

Specifications

Total Capacity: 12,500 gallons

Material: 316L Stainless Steel

Internal MAWP: 87 PSI @ 400°F

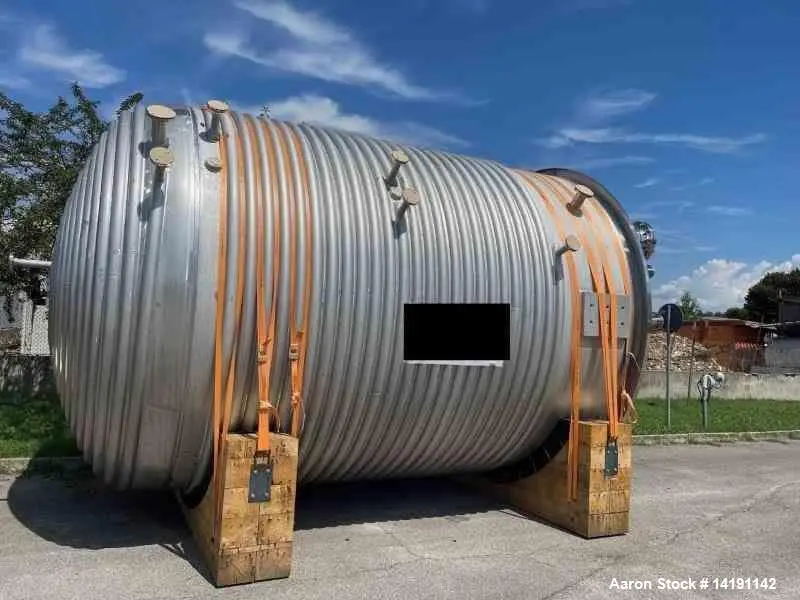

Half-Pipe Jacket MAWP: 174 PSI @ 400°F

Internal Coil: 2" Coil MAWP 174 PSI/FV @ 400°F

Finish: Sanitary polished internal and top external shell

Head Type: Dome top and bottom

Outlet: 2" Center bottom

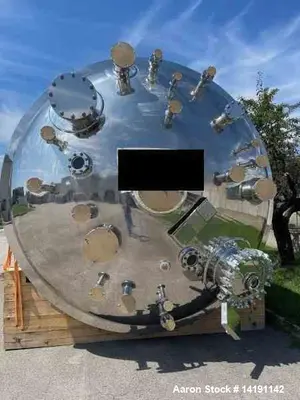

Manway: 20" Top manway

Baffles: Four internal baffles with vortex breaker

Mounting: Four lug mounts

Dimensions: 243" Overall Height x 133" Inside Diameter

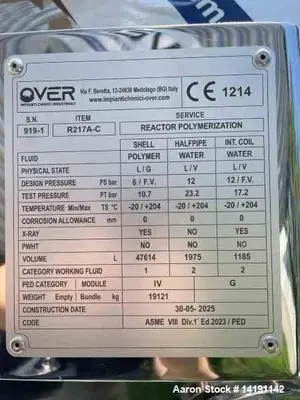

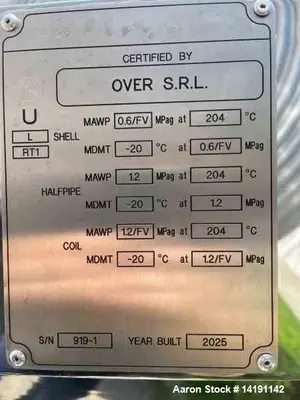

Certifications: National Board and PED (Double Certification)

Year Built: 2024

Applications

Pharmaceutical Manufacturing

Biotech Fermentation

Food and Beverage Processing

Chemical Synthesis

Cosmetic and Personal Care Production

Nutraceuticals

Dairy Processing

Specialty Chemical Blending

Temperature-Sensitive Product Handling

Clean-In-Place (CIP) Applications

Suitable Products

Biologics and Vaccines

Cosmetic Emulsions

Liquid Food Products

Active Pharmaceutical Ingredients (APIs)

Chemical Solutions

Fermented Beverages

Dairy Ingredients

Personal Care Liquids

Nutritional Blends

Concentrated Flavors
