Sanitary 316L Stainless Steel Reactor – 12,500-Gallon Capacity with Jacket and Coil

Unused 316L Stainless Steel 12500 Gallon Reactor. Manufactured by Over srl. Internal MAWP 87 psi @ 400F. Halfpipe jacket MAWP 174 psi @ 400F. 2" Internal Coil rated MAP 174PSI/FV @ 400F. Sanitary polished internal and exterior top shell. Dome top and bottom with 2" Center bottom outlet. Top flange and (4) internal baffles with vortex breaker. Does not include motor and agitator. 20" top manway. (4) Lug mounted. 243"OAH x 133"ID. National Board and PED (Double certification). Built 2025. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Manufacturer Information

Manufacturer: Over Srl

Country: Italy

Expertise: Custom-built processing equipment and industrial reactors for pharmaceutical, food, biotech, and chemical industries.

Product Description
This unused 12,500-gallon 316L stainless steel reactor, built by Over Srl in 2025, is constructed for demanding sanitary and industrial applications. It features a polished internal and top external shell, dome top and bottom, a 2" center bottom outlet, and a 20" top manway. The unit includes a halfpipe jacket and a 2" internal coil, both rated for 174 PSI @ 400°F. Additional features include four internal baffles with a vortex breaker, four lug mounts for installation, and compliance with National Board and PED certifications. Motor and agitator are not included.

Specifications

Total Capacity: 12,500 gallons

Material: 316L Stainless Steel

Internal MAWP: 87 PSI @ 400°F

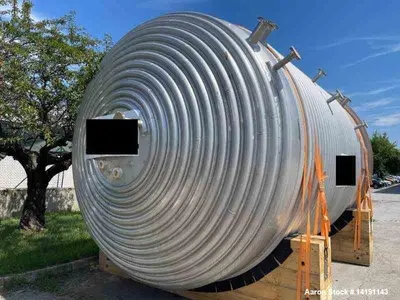

Halfpipe Jacket MAWP: 174 PSI @ 400°F

Internal Coil: 2" Coil MAWP 174 PSI/FV @ 400°F

Finish: Sanitary polished internal and exterior top shell

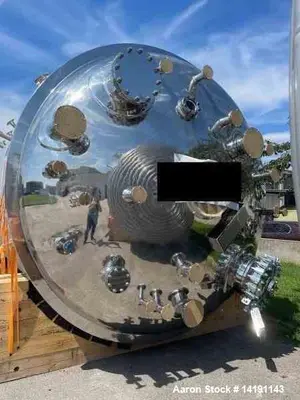

Head Design: Dome top and bottom

Outlet: 2" Center bottom outlet

Manway: 20" Top manway

Baffles: Four internal with vortex breaker

Mounting: Four lug-mounted supports

Dimensions: 243" Overall Height x 133" Inside Diameter

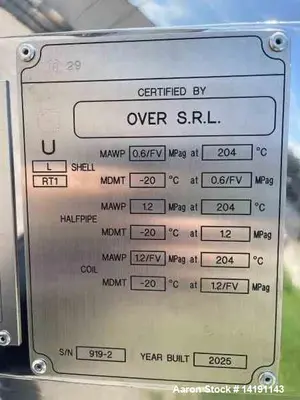

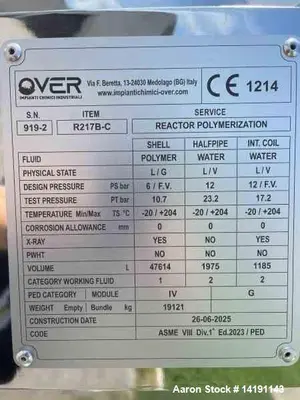

Certifications: National Board & PED (Double Certification)

Year Built: 2025

Applications

Pharmaceutical Manufacturing

Food and Beverage Processing

Biotech Fermentation

Chemical Blending and Reactions

Cosmetic Production

Nutraceuticals

Dairy Product Formulation

Thermal-Sensitive Compound Processing

Specialty Chemicals

High-Purity Ingredient Handling

Suitable Products

APIs (Active Pharmaceutical Ingredients)

Creams and Lotions

Fermented Liquids

Juices and Dairy Blends

Biologics and Vaccines

Nutritional Liquids

Chemical Solutions

Personal Care Formulas

Beverage Concentrates

Food Additives
