Unused 12,480-Gallon 316L Stainless Steel Reactor with Jacket and Dual Internal Coils
Overview
Description

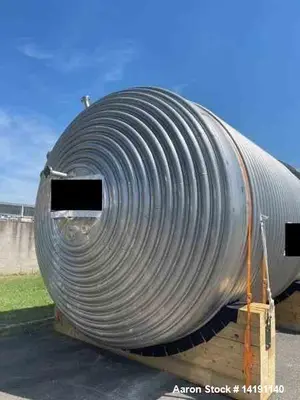

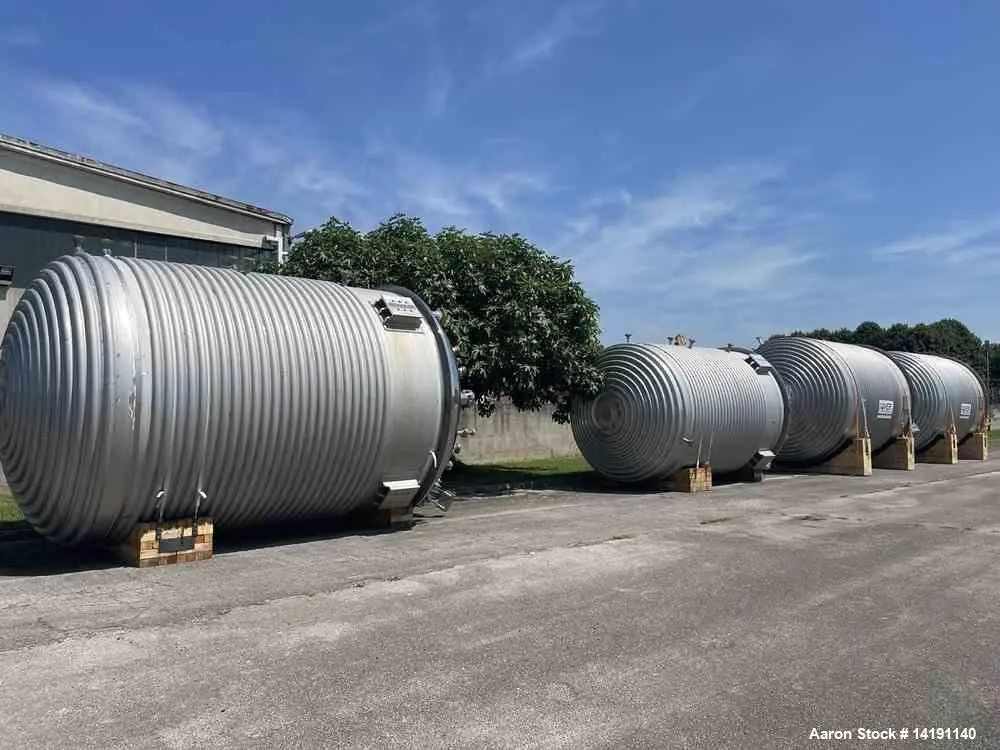

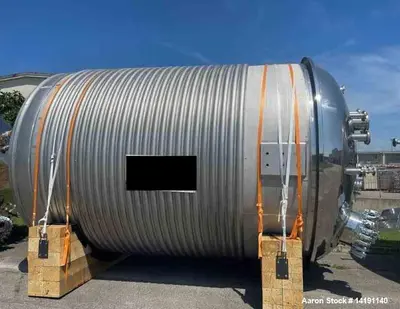

Unused 316L 12480 gallon Stainless Steel Reactor with Jacket and Double Internal Coils. Manufactured by Over Srl. Internal MAWP 87 psi @ 400 degrees F. Halfpipe jacket MAWP 174 psi @ 400F. (1) 1" Internal Coil MAWP 174PSI/FV@400F. (1) 2" Internal Coil rated MAWP 174PSI/FV@400F. Sanitary polished internal and exterior top shell. Dome top and bottom with 2" Center bottom outlet. Top flange and (4) internal baffles with vortex breaker. Does not include motor and agitator. 20" top manway. (4) Lug mounted. 243"OAH x 133"ID. National Board and PED (Double certification). NB #26, Serial #918-1. Built 2025. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
Specifications
Used Equipment Facts About This Machine
Manufacturer Information
Manufacturer: Over Srl
Headquarters: Medolago, Bergamo, Italy
Overview: Over Srl specializes in the design, production, and installation of custom industrial chemical plants and equipment, including reactors, tailored to meet specific process requirements.
Product Description
This unused 12,480-gallon (47,250 liters) 316L stainless steel reactor, manufactured by Over Srl in 2025, features a half-pipe jacket and dual internal coils for efficient thermal management. The reactor is designed for sanitary applications, with a polished internal and external top shell, dome top and bottom, and a 2" center bottom outlet. It includes a 20" top manway, four internal baffles with a vortex breaker, and is lug-mounted for secure installation. Note: Motor and agitator are not included.
Specifications
Total Capacity: 12,480 gallons (47,250 liters)
Material: 316L Stainless Steel
Internal MAWP: 87 PSI @ 400°F
Half-Pipe Jacket MAWP: 174 PSI @ 400°F
Internal Coils:
1" Coil: MAWP 174 PSI/FV @ 400°F
2" Coil: MAWP 174 PSI/FV @ 400°F
Dimensions: 243" Overall Height x 133" Inside Diameter
Manway: 20" Top Manway
Mounting: 4 Lug Mounted

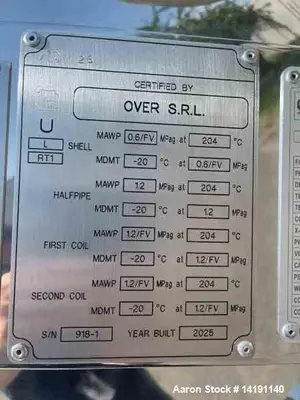

Certifications: National Board and PED (Double Certification)
Serial Number: 918-1
National Board Number: 26
Year Built: 2025
Applications
Pharmaceutical Manufacturing
Chemical Processing
Food and Beverage Production
Biotechnology
Cosmetic Formulation
Dairy Processing
Fermentation Processes
Petrochemical Applications
Nutraceutical Production
Specialty Chemical Blending
Suitable Products
Active Pharmaceutical Ingredients (APIs)
Biologics and Vaccines
Dairy Products (e.g., Yogurt, Cheese)
Beverages (e.g., Juices, Soft Drinks)
Cosmetic Creams and Lotions
Fermented Products (e.g., Beer, Wine)
Chemical Compounds
Nutritional Supplements
Personal Care Products
Specialty Chemicals
