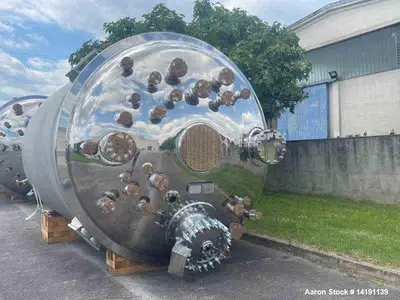

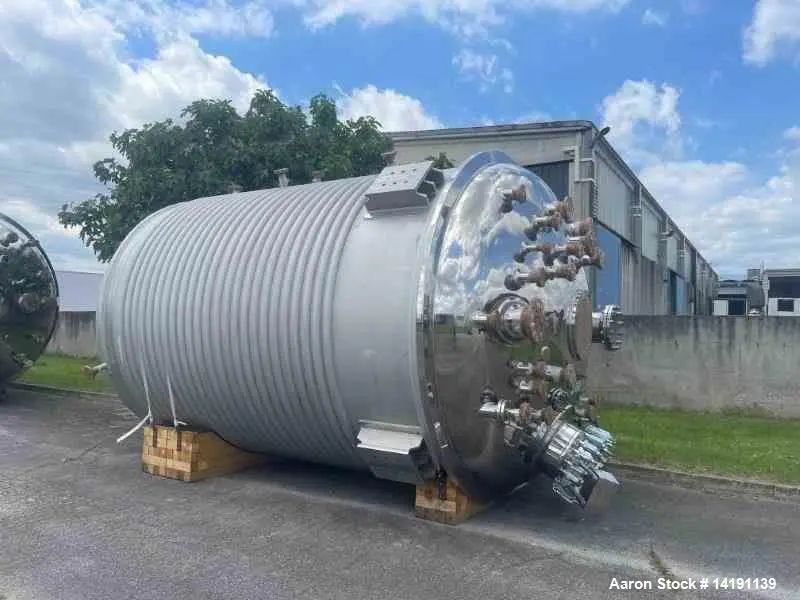

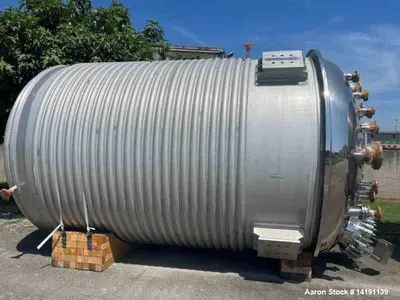

Unused 9,100-Gallon 304L Stainless Steel Reactor by Borghi Srl

Unused 304L Stainless Steel Reactor, 9100 Gallon Capacity. Manufactured by Borghi Srl. 8200 gallon working capacity. Internal MAWP 87 psi @ 400F. Halfpipe jacket MAWP 174 psi @ 400F. Half pipe jacketed on bottom half of shell and bottom head. Sanitary polished internal and exterior top shell. Dome top and bottom with 2" Center bottom outlet. Top flange and (4) internal baffles with vortex breaker. (4) Lug mounted. Does not include motor and agitator. 20" top manway. Diameter 9.84 ft x height 19.03 ft. Weight 21,605 lb. National Board and PED (Double certification). Serial #PP052B, NB #5. Built 2025. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
Manufacturer Information

Manufacturer: Borghi Srl

Headquarters: Melara, Rovigo, Italy

Overview: Borghi Srl is a renowned Italian manufacturer specializing in grain storage and processing equipment. With over 70 years of experience, the company offers turnkey solutions for grain storage, silo plants, mills, and feed mills.

Product Description
This unused 9,100-gallon (34,450 liters) 304L stainless steel reactor, manufactured by Borghi Srl in 2025, features an 8,200-gallon (31,040 liters) working capacity. Designed for sanitary applications, it boasts a polished internal and external top shell, dome top and bottom, and a 2" center bottom outlet. The reactor includes a half-pipe jacket on the bottom half of the shell and bottom head, rated at 174 PSI @ 400°F, while the internal vessel is rated at 87 PSI @ 400°F. Additional features include a 20" top manway, four internal baffles with a vortex breaker, and four lug mounts. Note: Motor and agitator are not included.

Specifications

Total Capacity: 9,100 gallons (34,450 liters)

Working Capacity: 8,200 gallons (31,040 liters)

Material: 304L Stainless Steel

Internal MAWP: 87 PSI @ 400°F

Half-Pipe Jacket MAWP: 174 PSI @ 400°F

Dimensions: 9.84 ft Diameter x 19.03 ft Height

Weight: 21,605 lbs (9,800 kg)

Certifications: National Board and PED (Double Certification)

Year Built: 2025

Serial Number: PP052B

National Board Number: 5

Applications

Pharmaceutical Manufacturing

Chemical Processing

Food and Beverage Production

Biotechnology

Cosmetic Formulation

Dairy Processing

Fermentation Processes

Petrochemical Applications

Nutraceutical Production

Specialty Chemical Blending

Suitable Products

Active Pharmaceutical Ingredients (APIs)

Biologics and Vaccines

Dairy Products (e.g., Yogurt, Cheese)

Beverages (e.g., Juices, Soft Drinks)

Cosmetic Creams and Lotions

Fermented Products (e.g., Beer, Wine)

Chemical Compounds

Nutritional Supplements

Personal Care Products

Specialty Chemicals
