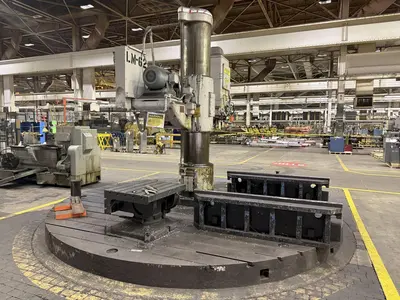

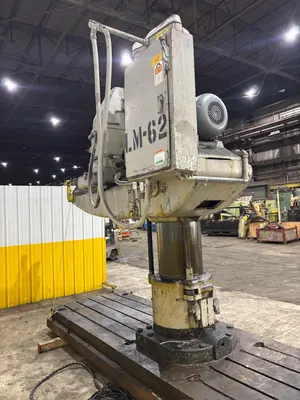

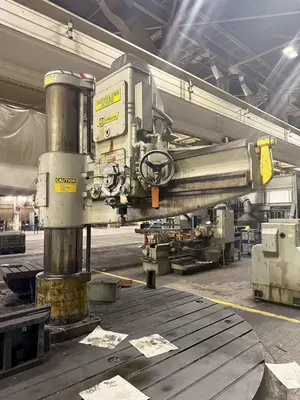

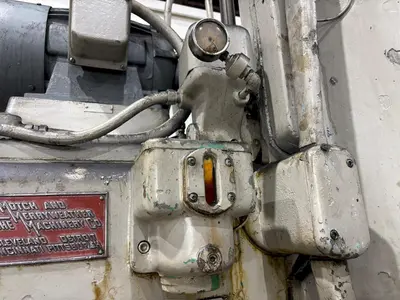

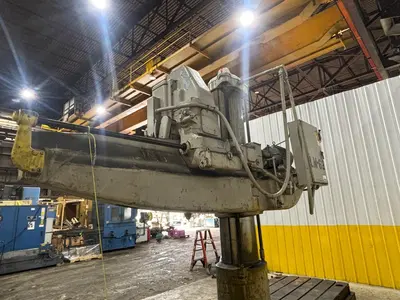

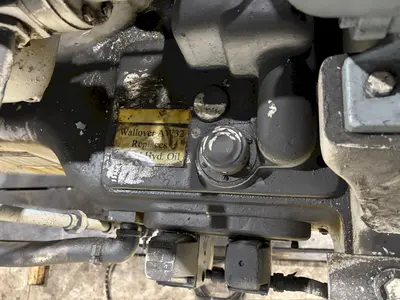

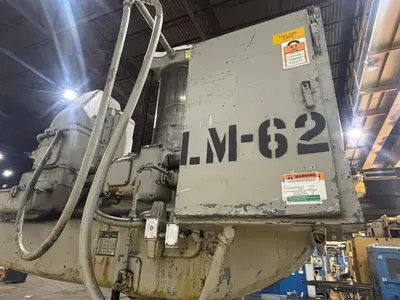

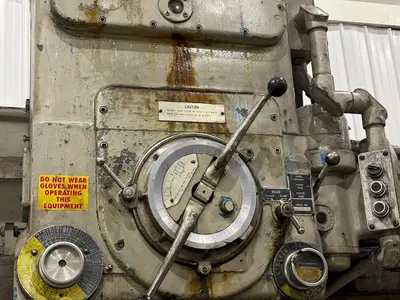

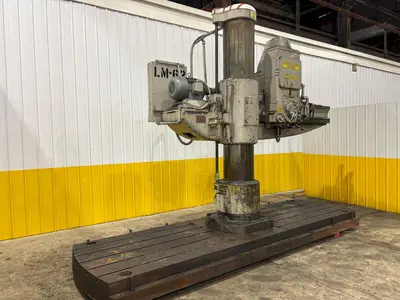

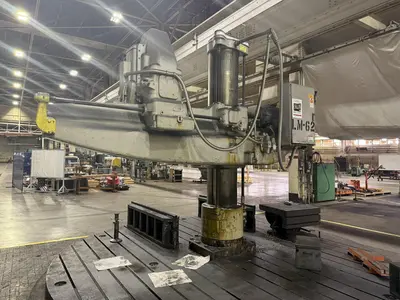

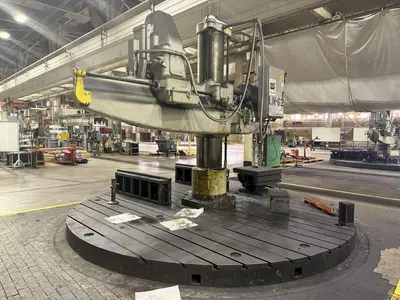

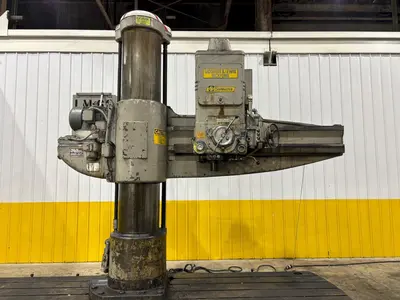

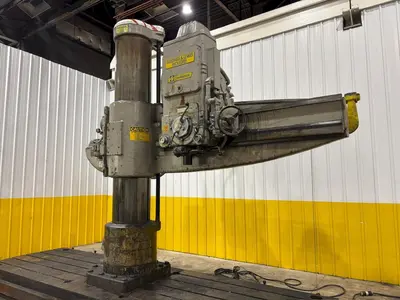

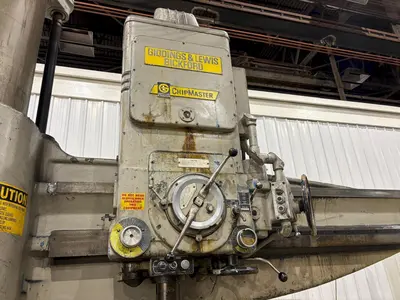

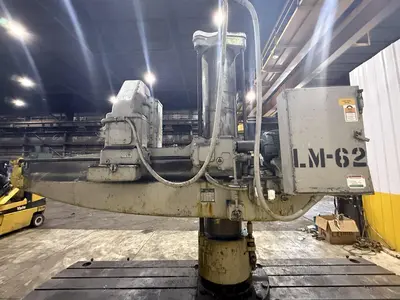

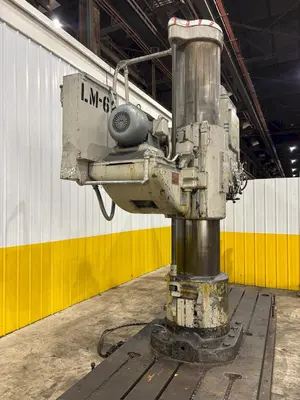

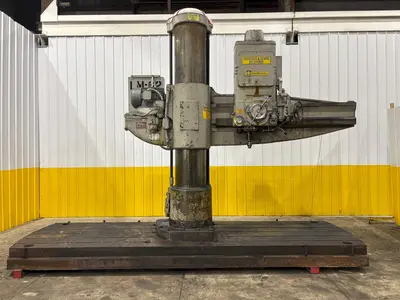

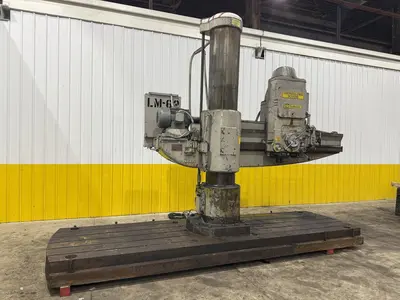

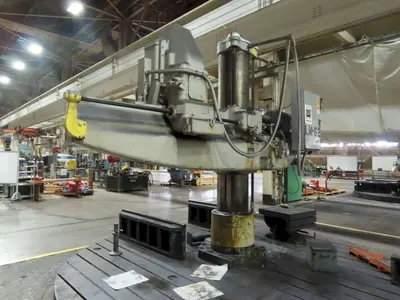

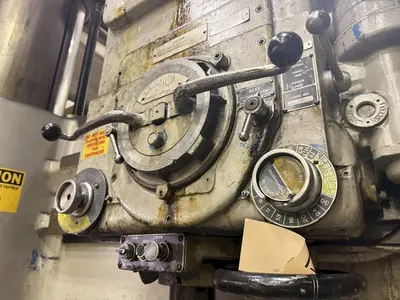

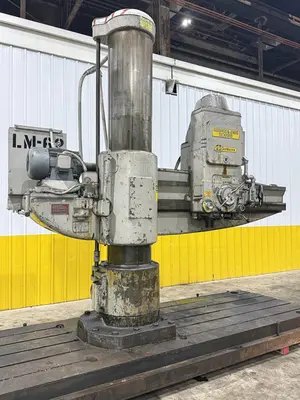

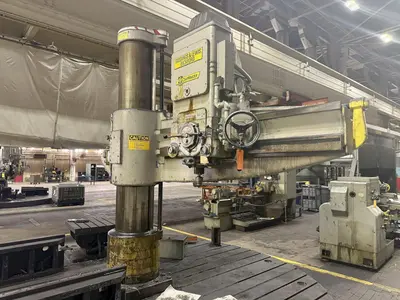

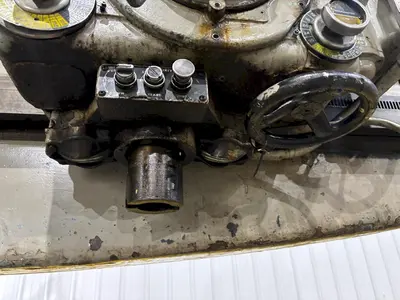

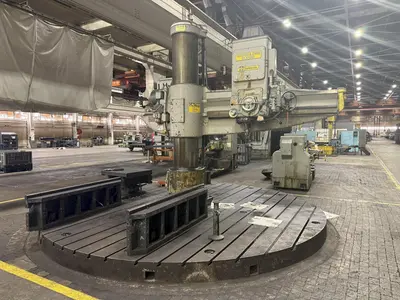

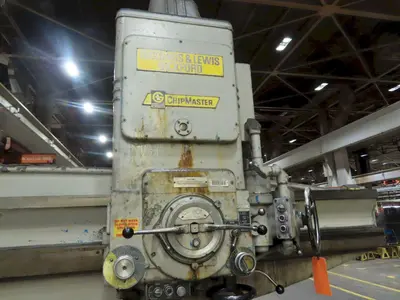

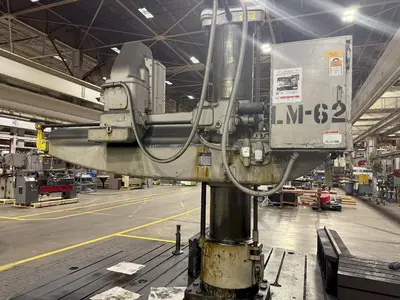

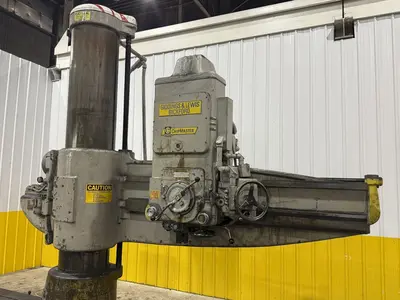

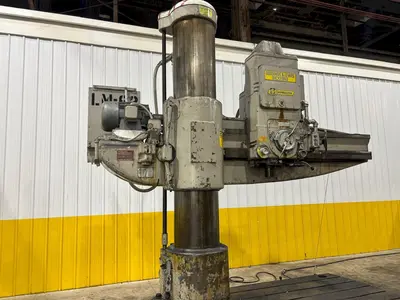

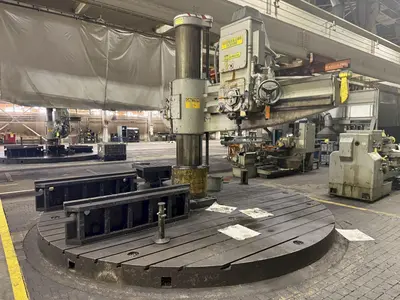

USED GIDDINGS & LEWIS BICKFORD 956

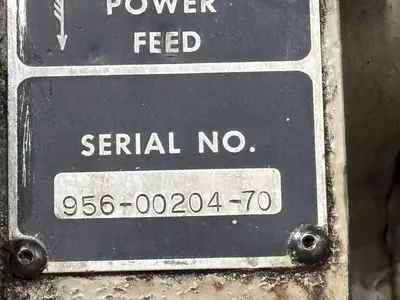

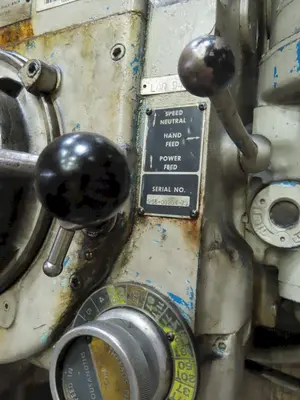

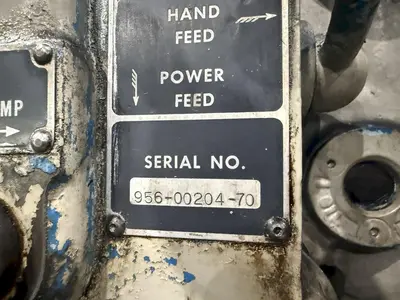

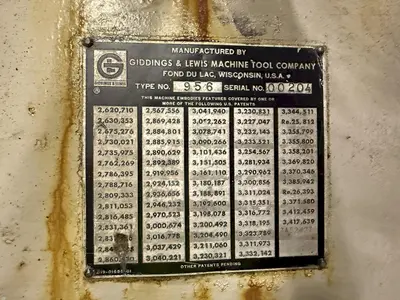

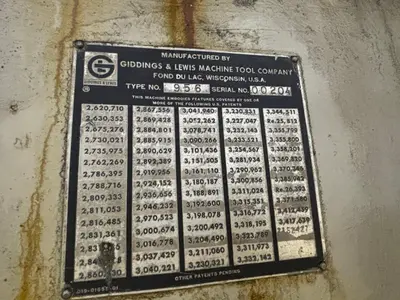

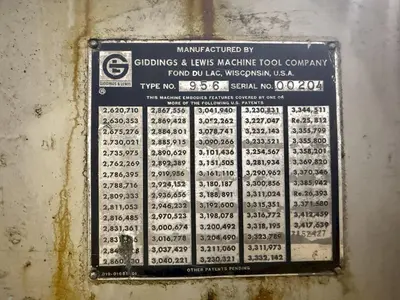

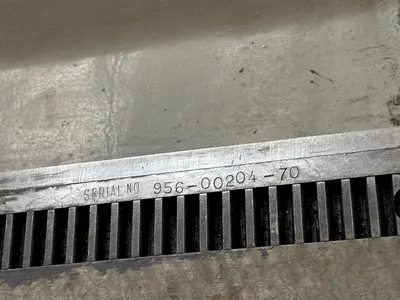

SERIAL .............................. 00204-70
MODEL ............................... 956

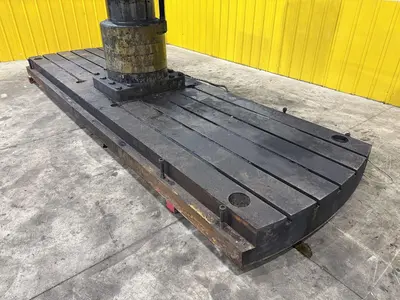

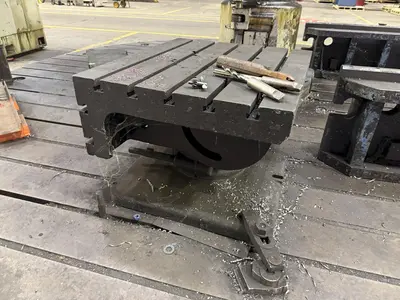

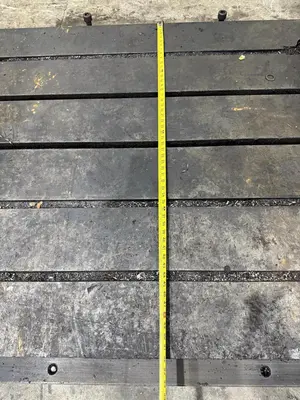

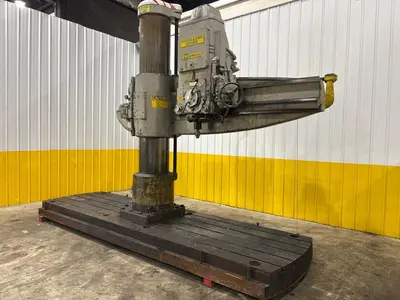

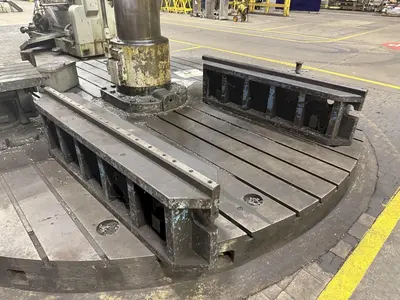

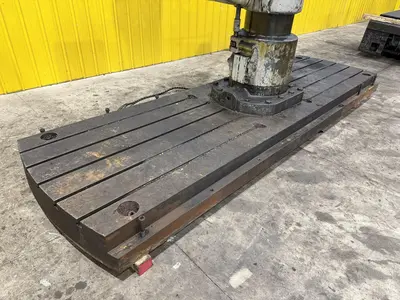

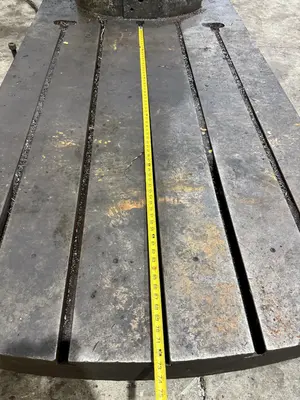

AREA OF DUAL BASE ................... 192" X 50"

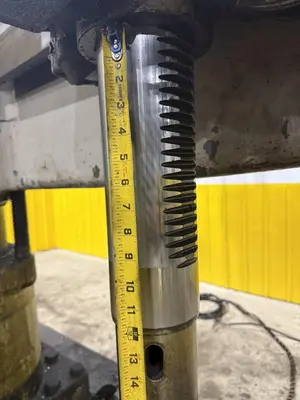

SPINDLE TRAVEL ...................... 20"
DIAMETER OF SPINDLE ................. 4-1/2"

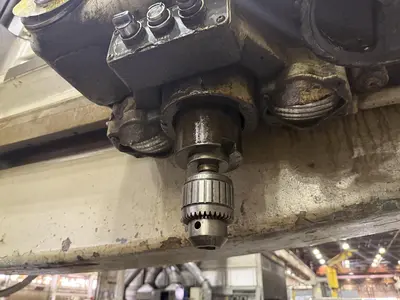

TAPER IN SPINDLE .................... #5 MT

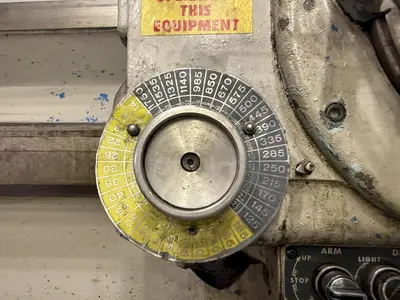

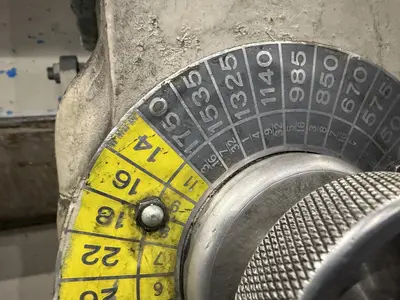

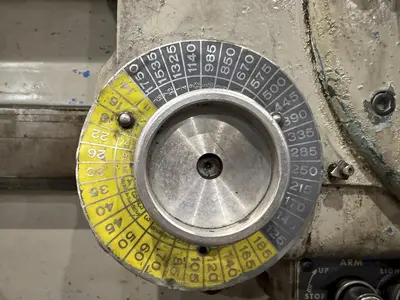

SPINDLE SPEEDS ...................... (36) 14 TO 1750 RPM

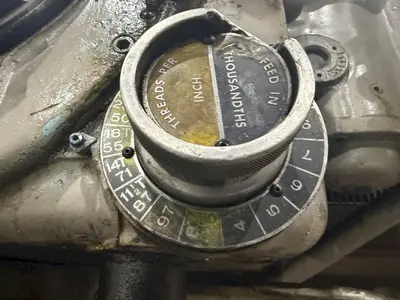

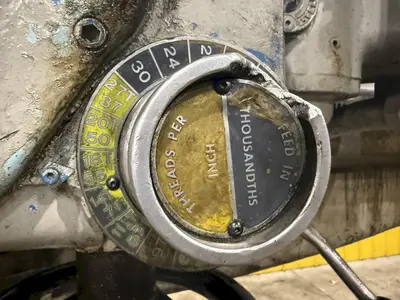

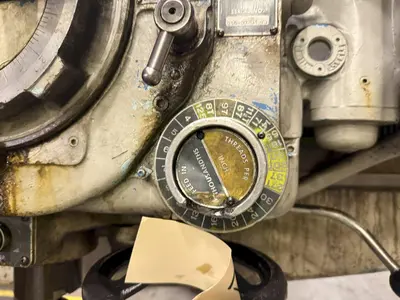

THREADS ............................. 8, 11-1/2, 14, 18,20, & 27 TPI
FEEDS ............................... (18) .004 TO .125 IPR
DISTANCE SPINDLE TO COLUMN .......... 17" MIN. TO 96" MAXIMUM
DISTANCE SPINDLE TO BASE ............ 36" MIN. TO 78" MAXIMUM

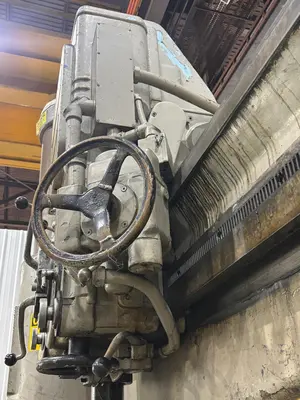

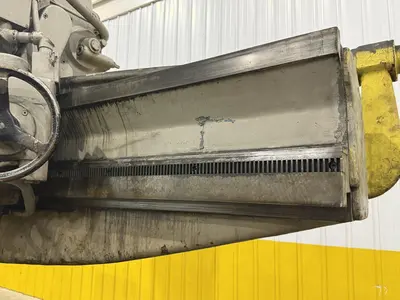

TRAVEL OF HEAD ON ARM ............... 79"
TRAVEL OF ARM ON COLUMN ............. 42"
POWER HEAD TRAVEL ................... YES

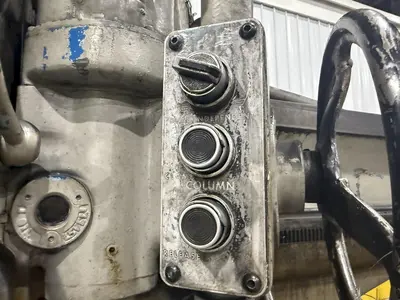

POWER COLUMN CLAMPING ............... YES
POWER ARM ELEVATION ................. YES
POWER HEAD CLAMPING ................. YES

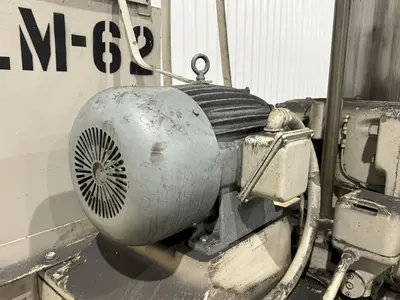

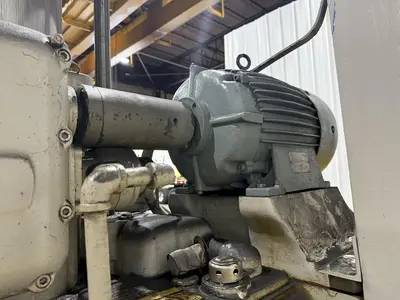

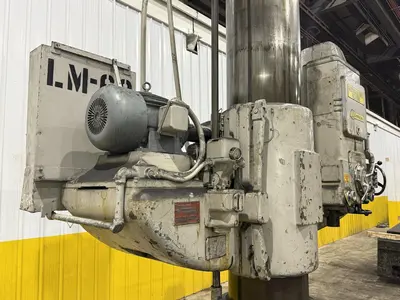

MOTOR ............................... 30 HORSEPOWER

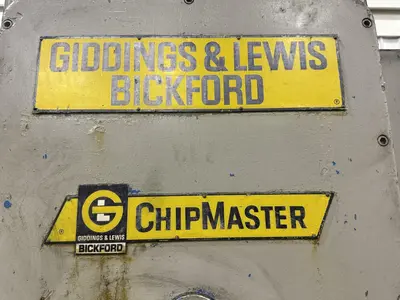

Brand
GIDDINGS & LEWIS BICKFORD
Type
Drills, Radial
Stock No.
23546
