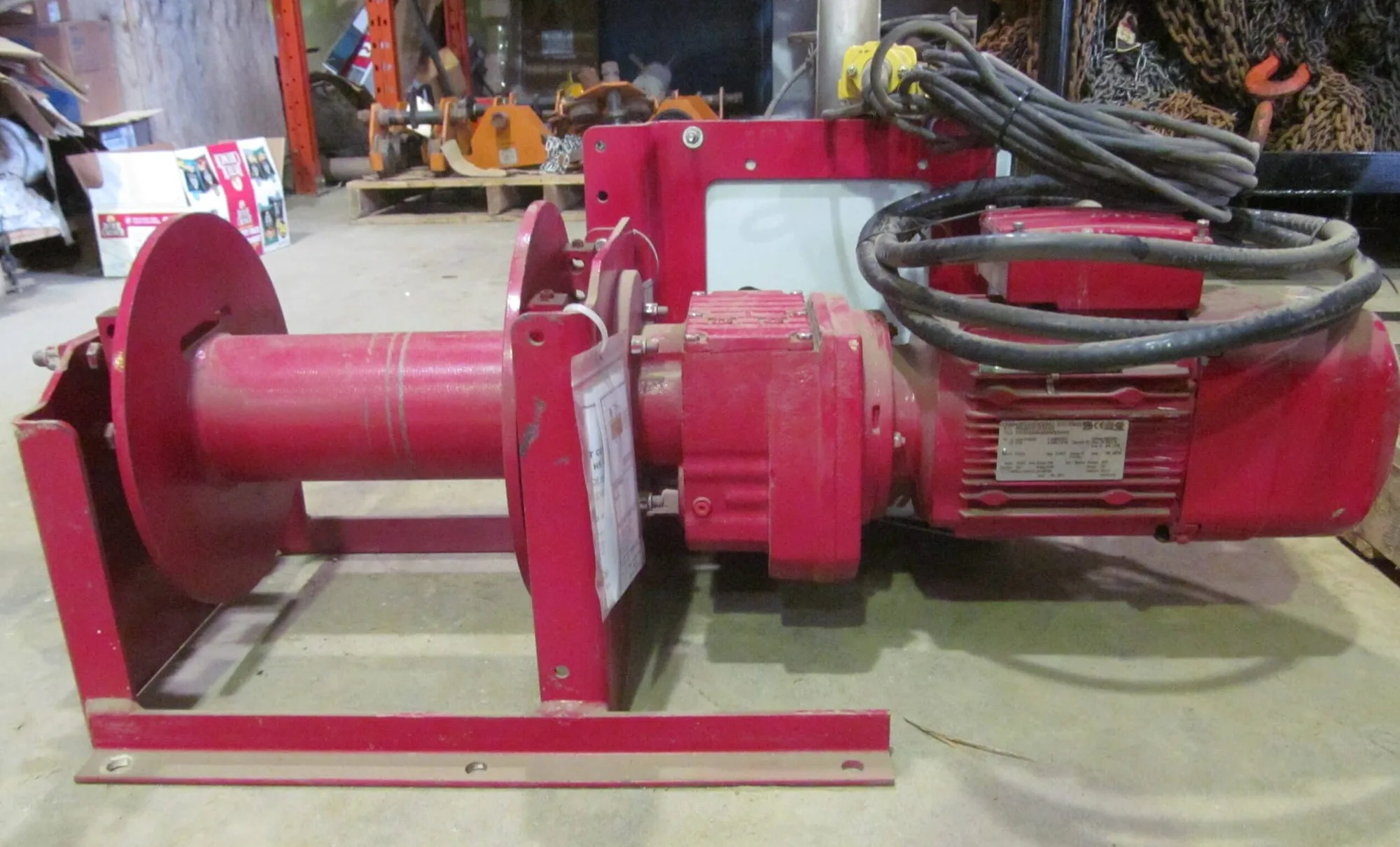

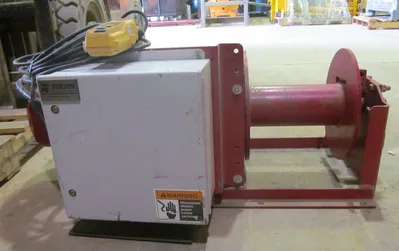

USED THERN 4HPF2M

The 4HPF Series of power winches are designed for applications requiring long travel distances and fast line speeds. The heat-treated, helical/parallel gear set provides durability and high efficiency—up to 94 percent. A modular design allows configuration to a variety of customer specifications. These winches are ideal for harsh and hazardous environments, including hard-to-reach locations. Typical applications include ship winches, mining, construction, and rail yards.

Manufacturer: Thern

Model: 4HPF2M

Capacity (1st/mid/full): 2,100lbs /1,300lbs /900lbs

Electrical Req. : 575/3/60

Wire rope size: 5/16″

Drum Storage: 560 ft

Line Speed (mid) : 55 fpm

Gross weight (less rope): 200lbs

Features:

Pendant Controls

Automatic Brake

Machine Cut Gears

Sealed, cast-iron gearbox with integral oil bath for rotating gears dissipates heat and provides continuous lubrication for enhanced service life

A totally enclosed, fan-cooled (TEFC) design, featuring IP66 and F-class insulation, resists debris and contamination for long service life

Large-capacity bearings enhance smooth operation and durability

Supplied with wire rope as needed

All of our Winches come with a fresh service and pull testing certificates showing a proof load of 125% of rated load has been applied and held by the brake.
