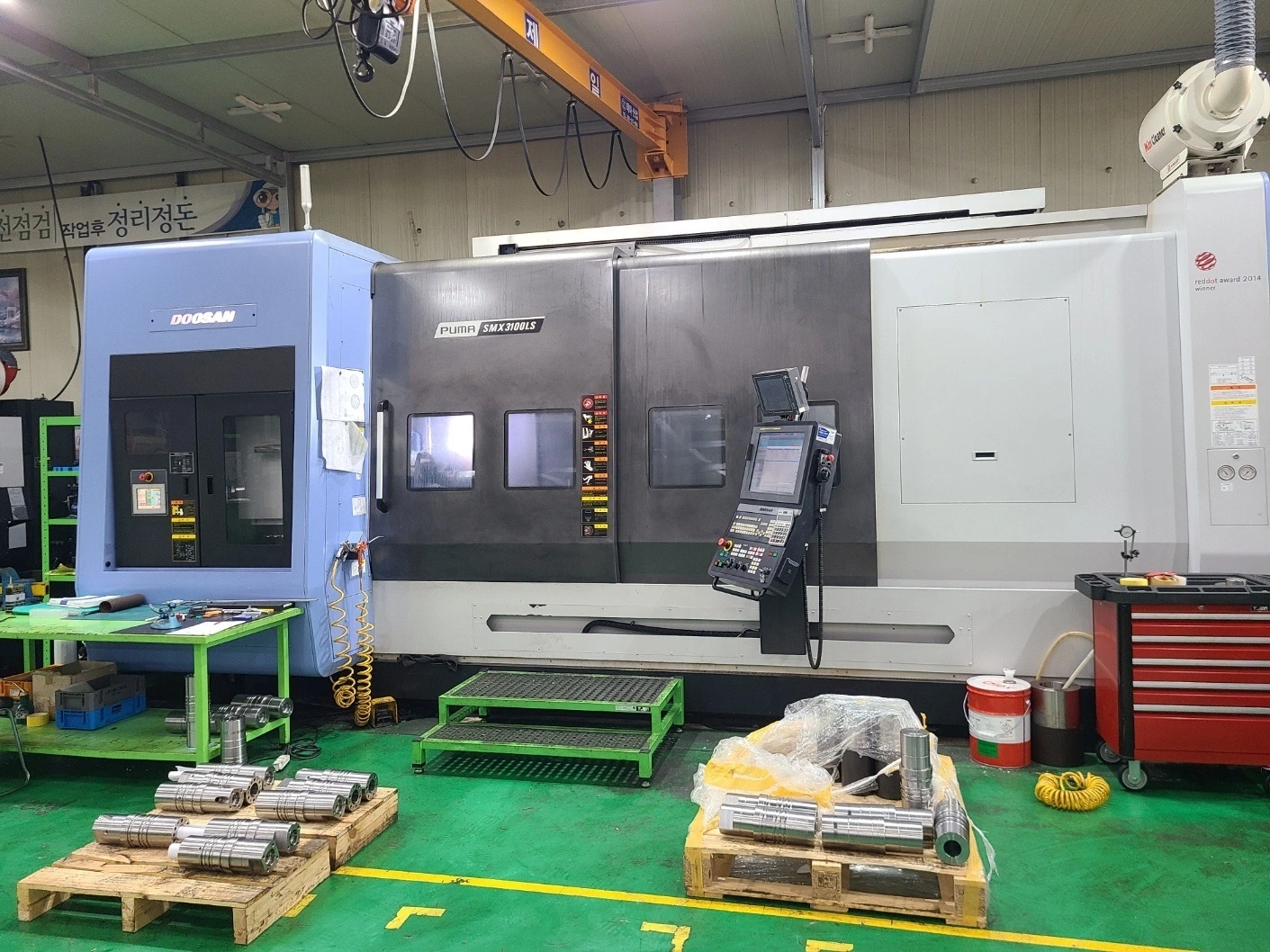

DOOSAN SMX 3100LS, a used 2018 CNC lathe, offers multi-axis capabilities. With specs like 26" swing, 100" turning length, and up to 12,000 RPM milling spindle speed, it's equipped with FANUC 31-B5 control, chip conveyor, hydraulic steady rest and more. Ideal for precision work.
| Swing Over Bed | 26" | 660.4 mm |
| Turning Diameter | 26" | 660.4 mm |
| Turning Length | 100" | 2,540 mm |
| Chuck Size 1 | 15" | 381 mm |
| Spindle Nose 1 | A2-11 | A2-11 |
| Bar Capacity 1 | 4" | 101.6 mm |
| Spindle Speeds 1 | 2,500 RPM | 2,500 RPM |
| Spindle Horsepower 1 | 40 hp | 29.8 kW |
| Chuck Size 2 | 12" | 304.8 mm |
| Spindle Nose 2 | A2-8 | A2-8 |
| Bar Capacity 2 | 3.6" | 91.44 mm |
| Spindle Speeds 2 | 4,000 RPM | 4,000 RPM |
| Spindle Horsepower 2 | 35 hp | 26.1 kW |
| B - Axis Head Travel | - 120, + 120 DEGREES | - 120, + 120 DEGREES |
| B - Axis Head Indexing | 0.0001 | 0.0001 |
| B - Axis Milling Spindle Taper | Capto C6 | Capto C6 |
| B - Axis Milling Spindle Speed | 12,000 RPM | 12,000 RPM |
| B - Axis Milling Spindle Horse Power | 35 hp | 26.1 kW |
| ATC For Milling Spindle | 80 | 80 |
| Tool Length | 17.7" | 449.58 mm |
| Tool Weight | 26.5 lb | 12 kg |
| X1 - Axis Travel | 24.8" | 629.92 mm |
| Z1 - Axis Travel | 101.8" | 2,585.7 mm |
| Y1 - Axis Travel | 11.8" | 299.72 mm |
| C - Axis Indexing 1 | 360 | 360 |
| W - Axis Travel Sub Spindle | 98.4" | 2,499.4 mm |
| Rapid Traverse Rate - X1 | 1889.8 ipm | |
| Rapid Traverse Rate - Z1 | 1181.1 ipm | |
| Rapid Traverse Rate - Y1 | 1417.3 ipm | |
| Machine Weight | 45,195 lb | 20,500.1 kg |
| Dimensions | 252" x 118.5" x 112.2" | 252" x 118.5" x 112.2" |
FANUC 31-B5 CNC CONTROL
SCALES FOR X,Y,Z
SMW STEADY REST 3.93" TO 16.1"
CHIP CONVEYOR
X AXIS BALLSCREW COOLING
ABSOLUTE PULSE CODER
AUTOMATIC ELECTRIC TOOL SETTER
PROGRAM STORAGE 1280M
EMBEDDED ETHERNET
AICC II 600 BLOCKS
8 PAIRS WORK COORDINATES
ATC OPERATING PANEL WITH TOUCH CAMERA
