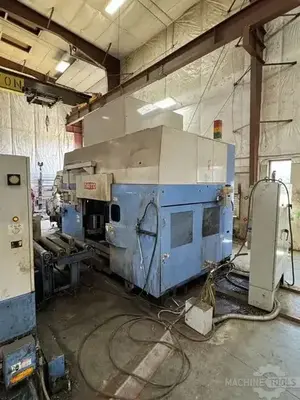

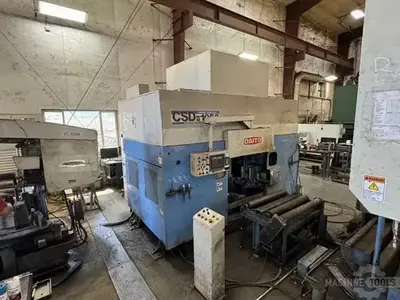

USED 2008 DAITO CSDII-1050

3-Spindle Drill and Saw

Request a Quote
Add to Cart
Beam Width Min/Max: 6"/40"
Flange Height Min/Max: 3"/20"
Min/Max Thickness: 1/4" - 2"
Max Hole Diameter: Carbide 1" H.S.S. 2"
Min Hole Diameter: Carbide 5/8" H.S.S. 3/8"
X-Axis Travel: 21.625"
Y-Axis Travel: 18.5"
Z-Axis Travel: 36.625"
Number of Drill Spindles: 3
Spindle Power: 20 HP
Spindle Speed: 2,250 RPM
Number of Drills in Web ATC: 5
Max. Feeding Speed: 100 FPM
Max. Work Load: 33,000 Lbs
Power Requirement: 200A (AC208V)
(4) Vertical Clamps: Flange Height Gauges
Pendant Operational Panel: Pinch Roll System
Positioning Compensation: Power Cleaning Brush
Twin Measuring Disk: Web Supports
X-Y Positioning 3 Drill Method: Automatic Tool Changer
