USED HANNIFIN F-31101
Overview
Description

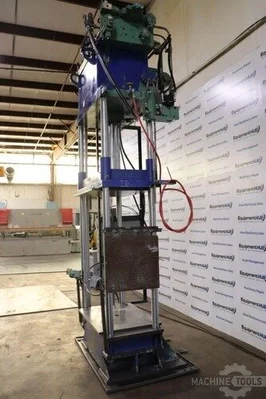

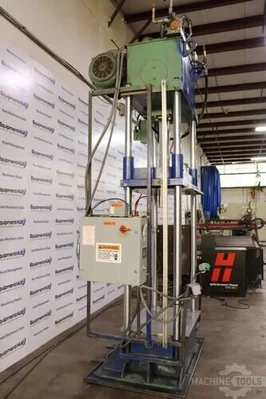

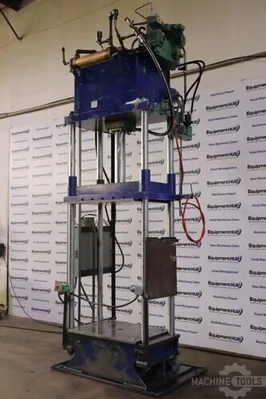

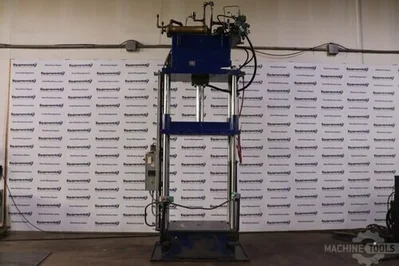

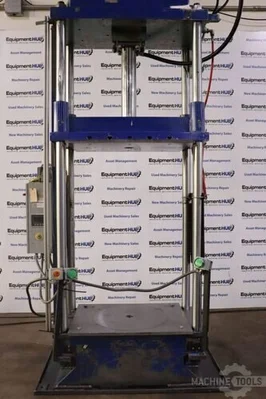

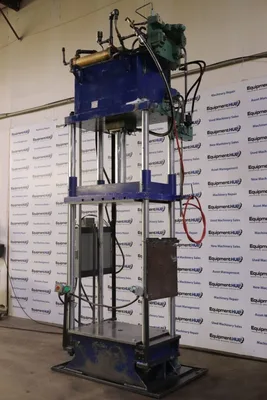

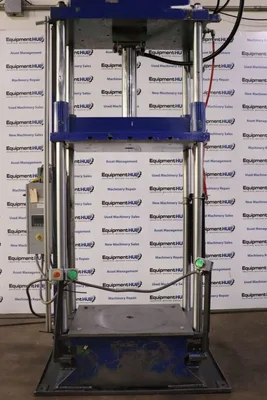

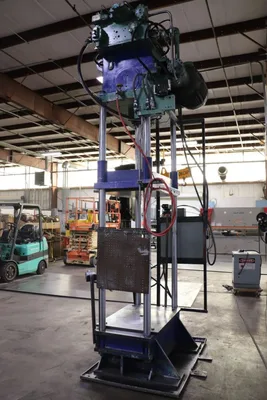

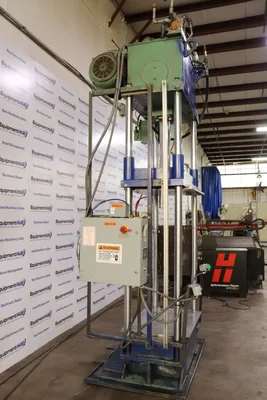

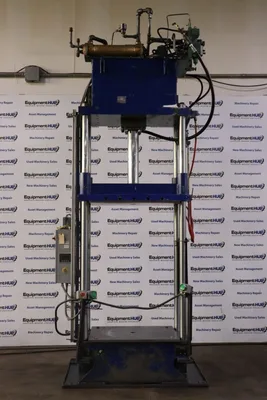

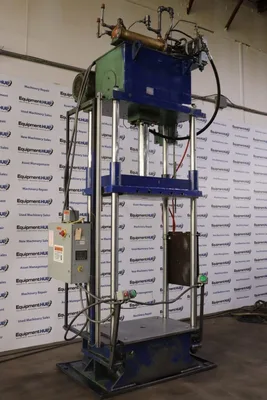

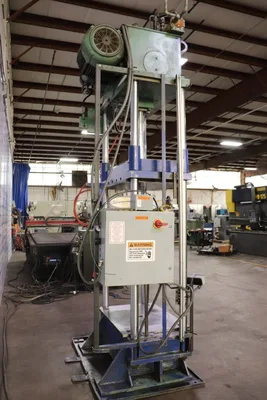

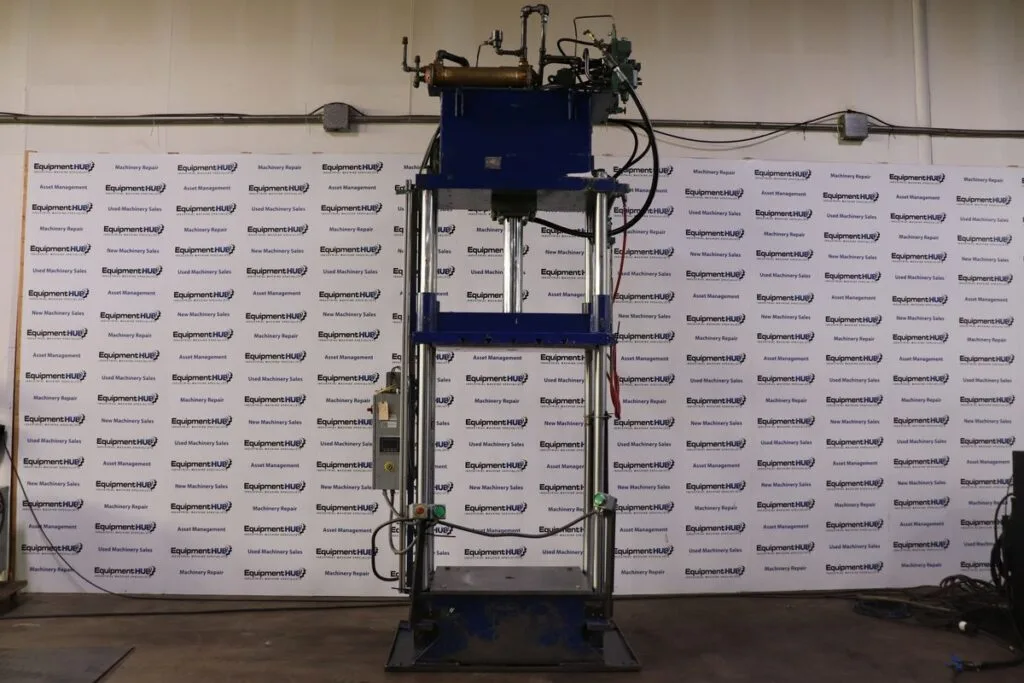

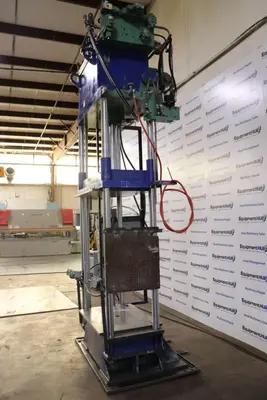

Hannifin F-31101 30 Ton 4 Post Hydraulic Press, Magnum Press Control Retrofit
Specifications
General Info
Stock #: 150250002
Location: Stone Mountain, GA

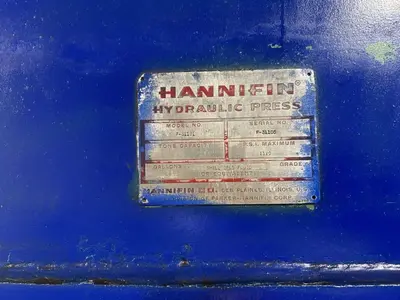

Brand: Hannifin

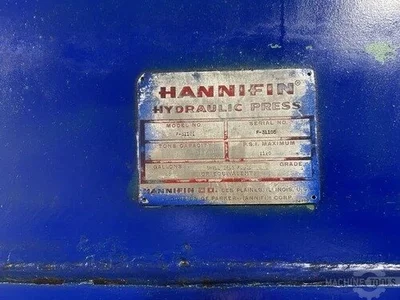

Model: F-31101
Serial #: F-31105
Approx. Shipping Weight: 10,000 Lbs
Approx. Shipping Dimensions: 13.5' L x 6' W x 5' H (Laying Down)
Skidding Fee: Skidding Unavailable
Specifications
Capacity: 30 Ton
P.S.I. Maximum: 2120
Cylinder Diameter: 5"
Post Diameter: 3"

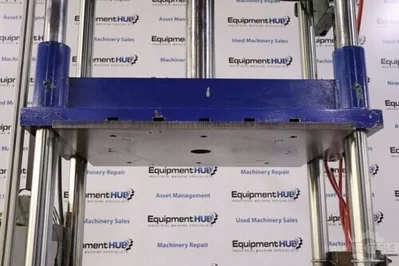

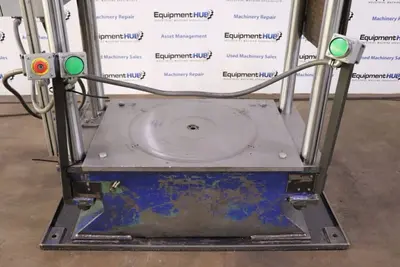

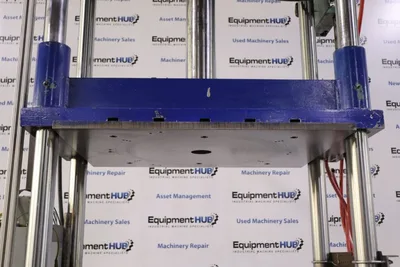

Overall Bed & Ram Area: 59" RL x 25" FB
Distance Between Posts: 39" RL x 17" FB
Max. Stroke: 25"
Open Height(w/ 1" Bolster Plates): 82"
Motor HP: 25
Tank Capacity: 60 Gallons
Electrical: 460V/3PH
Overall Height of Machine: 161"
Equipped With

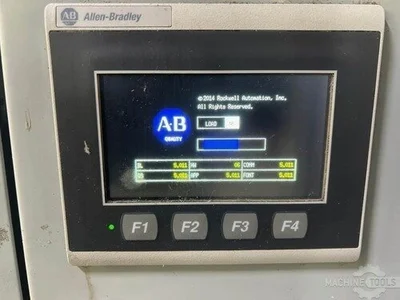

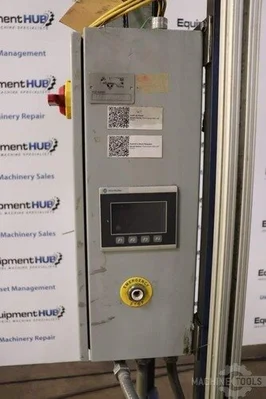

Allen Bradley Control Touch Screen Controller w/ Magnum Press Retrofit Control, Push Palm Buttons
Additional Info
The Hannifin Hydraulic Press can be demoed upon request, check out the video on the listing to see it in operation.
