USED 2016 CMS BREMBANASPEED MB-36

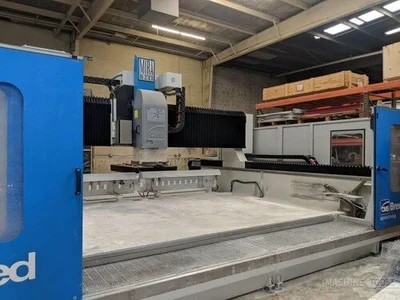

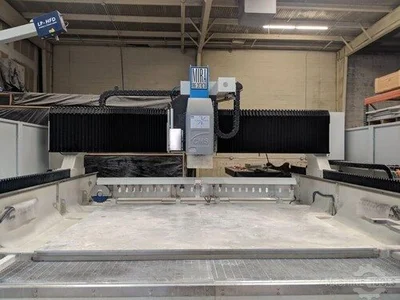

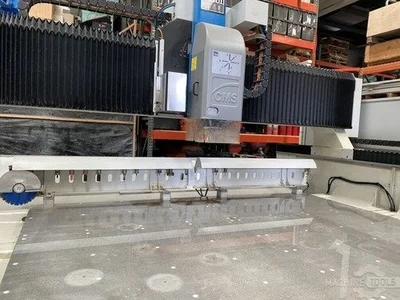

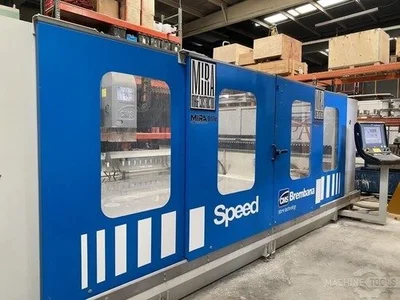

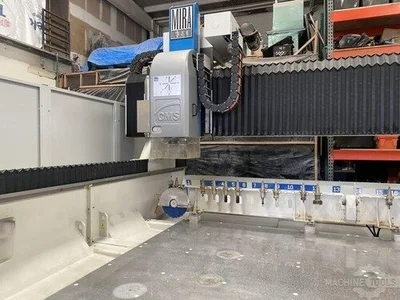

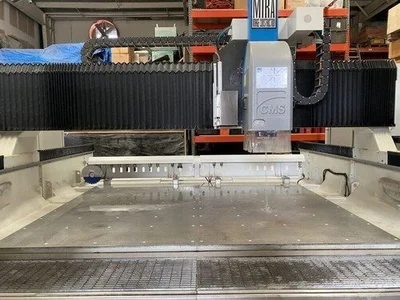

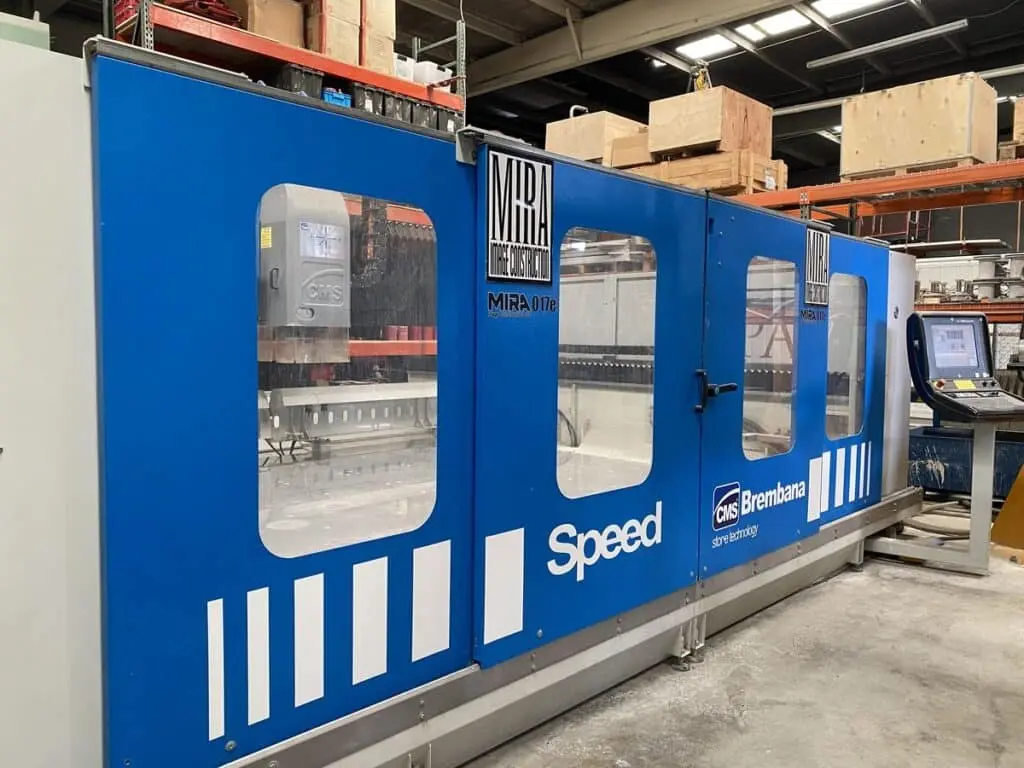

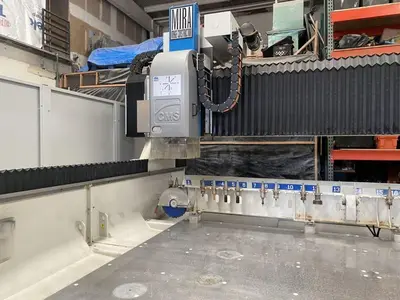

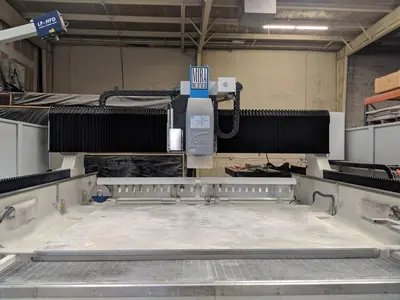

CMS Stone Technology Brembana SPEED MB-36 4-Axis Numerically Controlled Machining Center

General Info

Stock #: 171240014
Location: HI
Brand: CMS Stone Technology
Model: Brembana SPEED MB-36

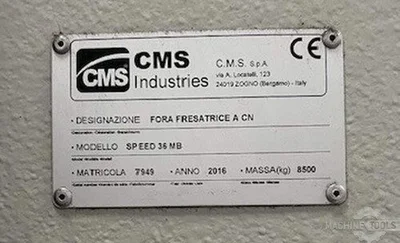

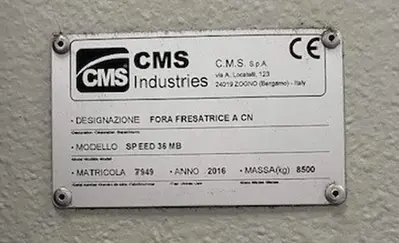

Serial #: 7949
Year: 2016
Approx. Shipping Weight: 18,000 Lbs.
Skidding Fee: Skidding Required
Loading Fee: Decommissioning / Rigging Required

Specifications

Workable Cube: 149" x 106" x h15"
X-Axis Stroke (Max): 149.6"
Y-Axis Stroke (Max): 94.5"
Z-Axis Stroke (Max): 23.5"
X-Axis Speed: (0÷177) ft/min
Y-Axis Speed: (0÷177) ft/min
Z-Axis Speed: (0÷41) ft/min

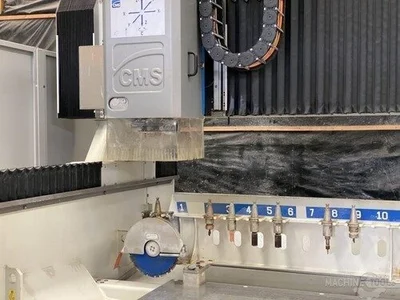

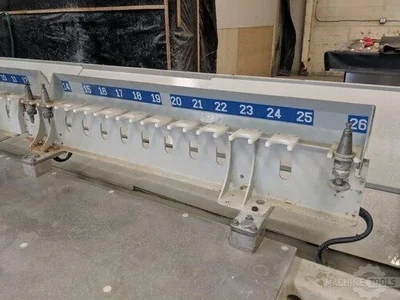

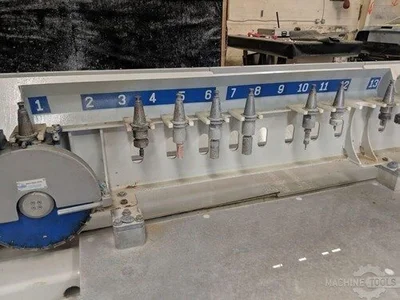

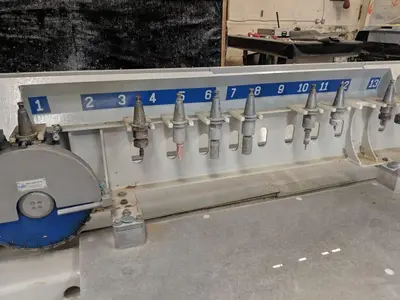

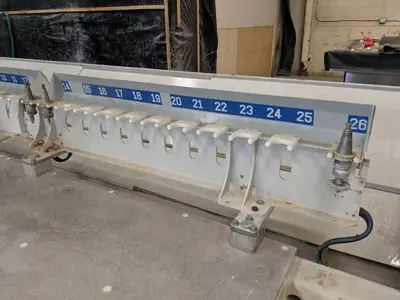

Tool Capacity: 26-Position Tool Crib Fixed to Frame
Tool Maximum Diameter: 5"

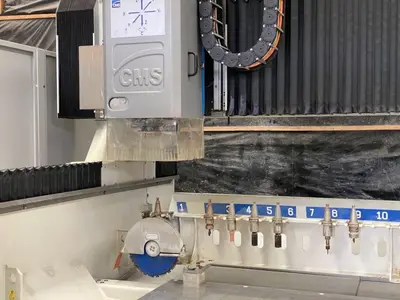

Electro Spindle Connection: ISO 40
Electro Spindle Power: 40 HP
Electro Spindle Speed: 12,000 RPM

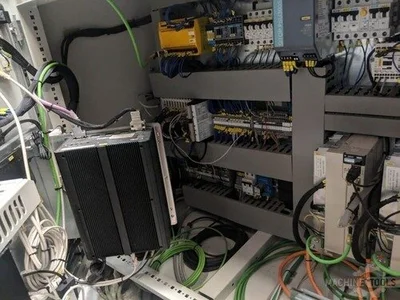

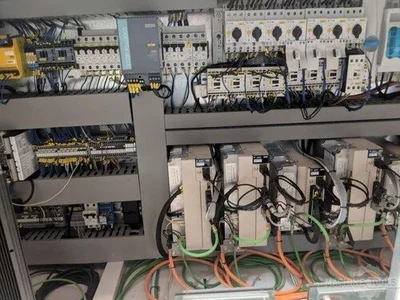

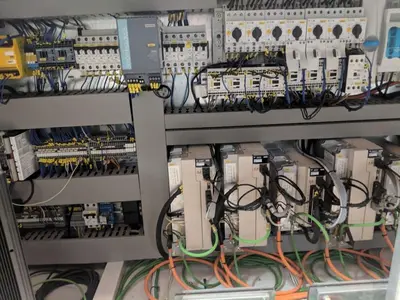

Control: Numerical Control OSAI Series 10/510i with Integrated PC
Software: EasySTONE CAD/CAM

Equipped With

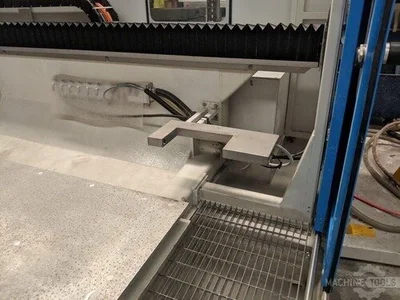

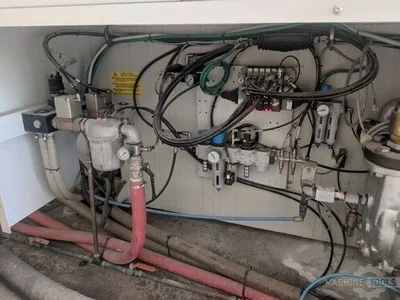

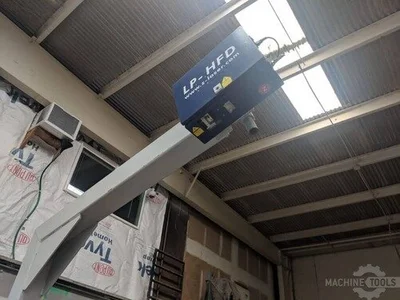

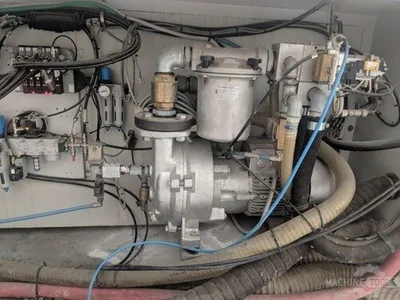

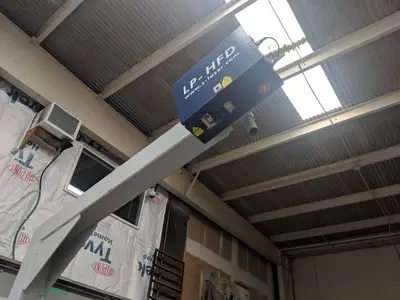

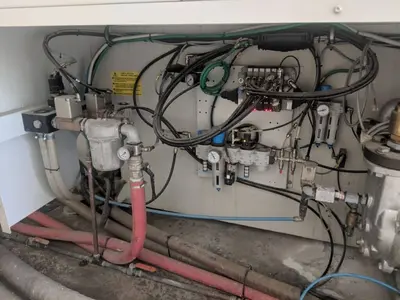

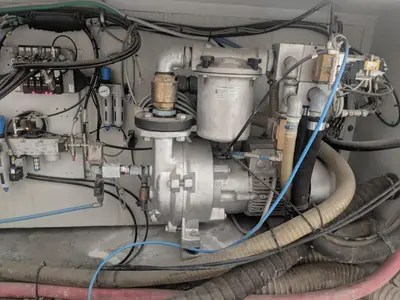

Tiger Track 1-Ton Heavy Duty Piller Base Plate Mounted Gantry/Job Crane (Harrington Hoists), Manzelli OPVEM1PPPN/200 Vacuum, Manzelli UPV40MC/H Pump, MW Watermark Vacuu Fill Pump Filtration System, Automatic Adjustment of Tool Feed/Stress, Remote Diagnostics, Touch Probe of Thickness for Working Center, Rotating C-Axis (4th Axis), 90° Saw Unit (350mm Saw Blade), Laser Presetter for Automatic Measuring of Tool Length & Diameter, Pre-Wiring for Mobile Lathe, Misc. ISO40 Toolholders, Electro-Spindle Cooling System Through Chiller Unit, OSAI Series 10/510i Numerical Control with Integrated PC, CMS Portable Keyboard, Laser Projector for Suction Cup Positioning

Additional Info
Machine is under power and available to demo.

This machine is being sold from our client’s facility and is sold AS-IS (Not covered under the MDNA Return Privilege). We always recommend machine be inspected in person to verify condition.
