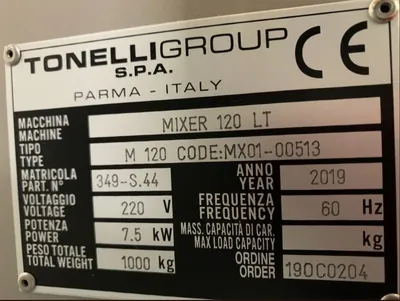

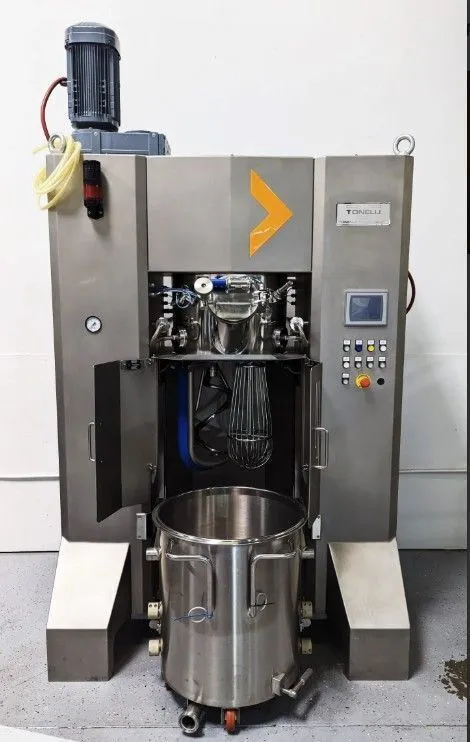

NEW 2019 Tonelli M 120

PLANETARY MIXER 120 L MICRO PLC MODEL

Portal-shaped main frame in AISI 304 stainless steel of high thickness and high strength.
Soundproofing to ensure working parameters according to current regulations.
Inverter-controlled 5,5 kW electric motor driving the mixing tools planetary motion.
1,5 kW electric motor driving the bowl's lifting/lowering motion.
Safety guards in stainless steel: - front openable safety guards with safety micro-switch-rear fixed safety guards.
Pneumatic system (to be connected to the customer's air main supply at 6/10 bar) to mix in a pressurized atmosphere.
The system is equipped with lubrication-depuration filters, an electro pneumatically operated 3-way on-off air valve, a pressure meter for the solenoid valves (6 bar) and a main safety valve.

Electrical: 220v / 60hz / 3ph

INCLUDES:

CONTROL BOARD INSIDE THE MIXER LEG - ALLEN BRADLEY
Man-machine interface to program the mixing operations and the various phases in the recipe. 50 recipes each, including up to 15 working phases. Pre-setting per each working phase the mixing speeds and times, the intermediate descents, if any, and the mixing in a pressurized atmosphere. Can handle pre-weighed batches, hand-fed batches, automatic product discharge, and mixed product pumping. Includes controls for the mixer washing. The work phases, the mixing speed and times, and the various alarm codes are displayed on the operator panel. Pane1ViewPlus7 Standard 6ª. Interface language: English

STANDARD BELL CHAMBER
Made entirely in stainless steel AISI 304 with a pressure transducer, air inlet, air outlet, and safety valve.

(1) BOWL 120 L WITH HAND-OPERATED VALVE DN 50
In stainless steel AISI 304, capacity 120 I. Hand-operated valve ON 50.

PLANETARY REDUCER DOUBLE TOOL
Mixing head for the planetary motion of the mixing tools and the scraper - according to Tonelli ratio. In stainless steel AISI 304.

(2) HEAVY WIRE WHISK 0 6,5 mm - # 4
(1) ROUNDED SCRAPER - # 14
(1) FLAT ASCENDING SPIRAL NARROW BARS TOOL - # 11. For rotative and wire cut biscuit.
(1) SPADE CUTTING TOOL - # 5. For rotative and wire cut biscuit Tonelli.
(1) FLAT PADDLE TOOL - # 8. for cream, muffin and cheesecake.

MANUAL FRONT LOADING DN 150
Manual gravitational liquid ingredient feeding. Hermetic seal with pneumatic fixing to work under pressure or for washing operations. Safety sensor.

WASHING BY WATER POWERED BALLS - 3 heads
N° 3 water-powered heads (min. operating pressure 6 bar, max. operating pressure 10 bar). On-off valve, DN 40, pneumatically operated for utility water (max 10 bar) with related solenoid valve. Manifold and piping made of AISI 304 s/s. Electromechanical components. WASHING FLANGE Pressurized hydrodynamic/motorized washing balls.

This mixer is our current showroom model and has never been placed in production, and has only been run with water.
