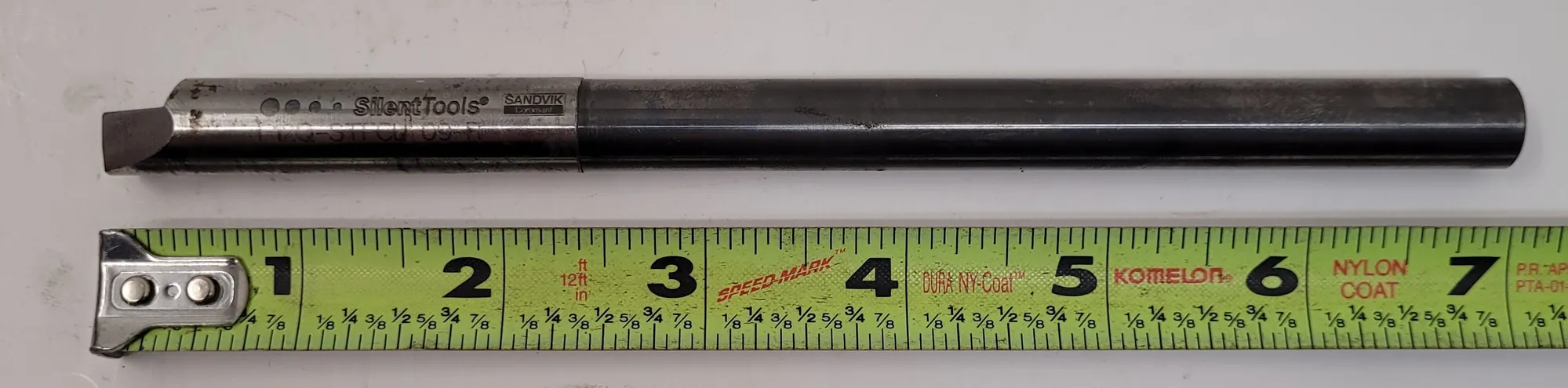

USED Sandvik Coromant F12Q-STFCL 09-R

Used Sandvik Coroturn 107 F12Q-STFCL 09-R boring bar by Sandvik Coromant. Silent Tool, left-hand, with a 0.6299" min bore diameter and 7.0866" functional length. Offers a max overhang of 4.7244" and uses TCMT 090204 inserts.

SANDVIK COROTURN 107 F12Q-STFCL 09-R BORING BAR

USED
Silent Tool
Minimum bore diameter: 0.6299 inch
Workpiece side body angle: 0 °
Machine side body angle: 0 °
Minimum overhang: 2.8346 inch
Maximum overhang: 4.7244 inch
Hand: Left
Functional length: 7.0866 inch
Functional width: 0.3543 inch
Body diameter: 0.4724 inch
OAL: 7.0866 inch
Insert seat – metric: 09
Insert seat size code imperial view: 7/32
Tool cutting edge angle: 91 °
Lead angle: -1 °
Clamping type code: clamp with screw through hole
Insert type: TCMT 090204
