5 Axis, 140 ATC, 12000 RPM, Fanuc 16iMB CNC
| size | 20" x 20" | 20" x 20" |
| X | 34" | 863.6 mm |
| Y | 27" | 685.8 mm |
| Z | 25" | 635 mm |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 140 | 140 |
| Taper | 40 | 40 |
| Pallet-W | 20" | 508 mm |
| Pallet-L | 20" | 508 mm |

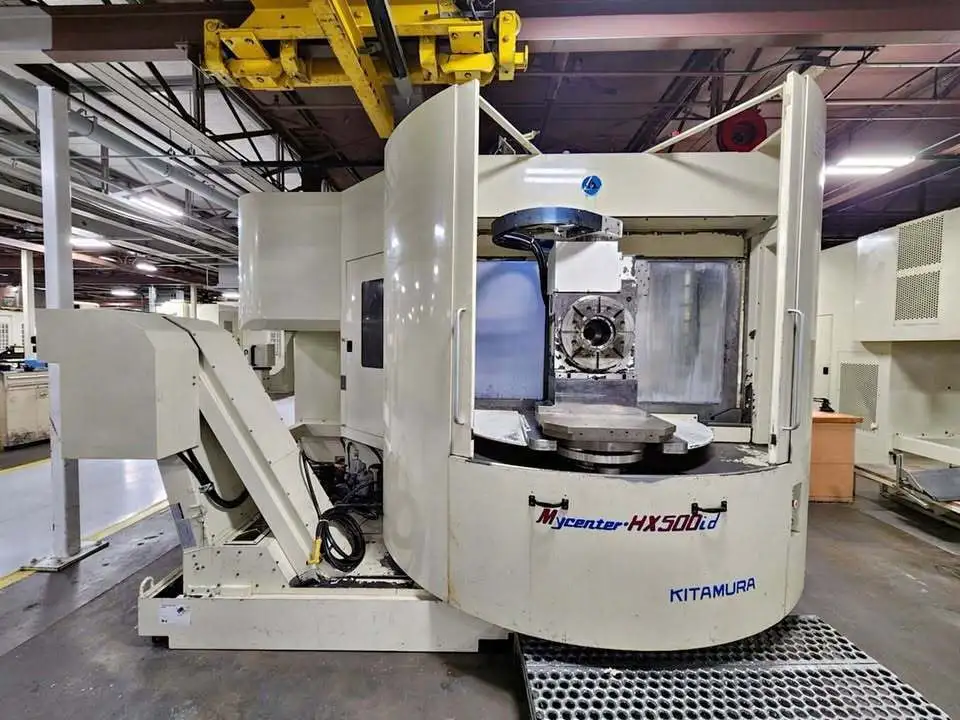

Kitamura MyCenter HX500ID 5 Axis Horizontal Machining Center (2006)
X-Axis: 34.25"
Y-Axis: 27.95"
Z-Axis: 25.98"
Rapid Rate X Axis: 1969 IPM
Rapid Rate Y Axis: 1969 IPM
Rapid Rate Z Axis: 1969 IPM
Dual Pallet Changer
Pallet Size: 19.75" X 19.75"
Max Pallet Load: 2200 lbs
Spindle Speed: 12,000 RPM
Spindle Motor: 40 HP
Spindle Taper: CAT-50
Tool Changer: 50
Dimensions: 178" x 110" x 130"
Weight: 44,000 lbs
5 Axis, 140 ATC, 12000 RPM, Fanuc 16iMB CNC
