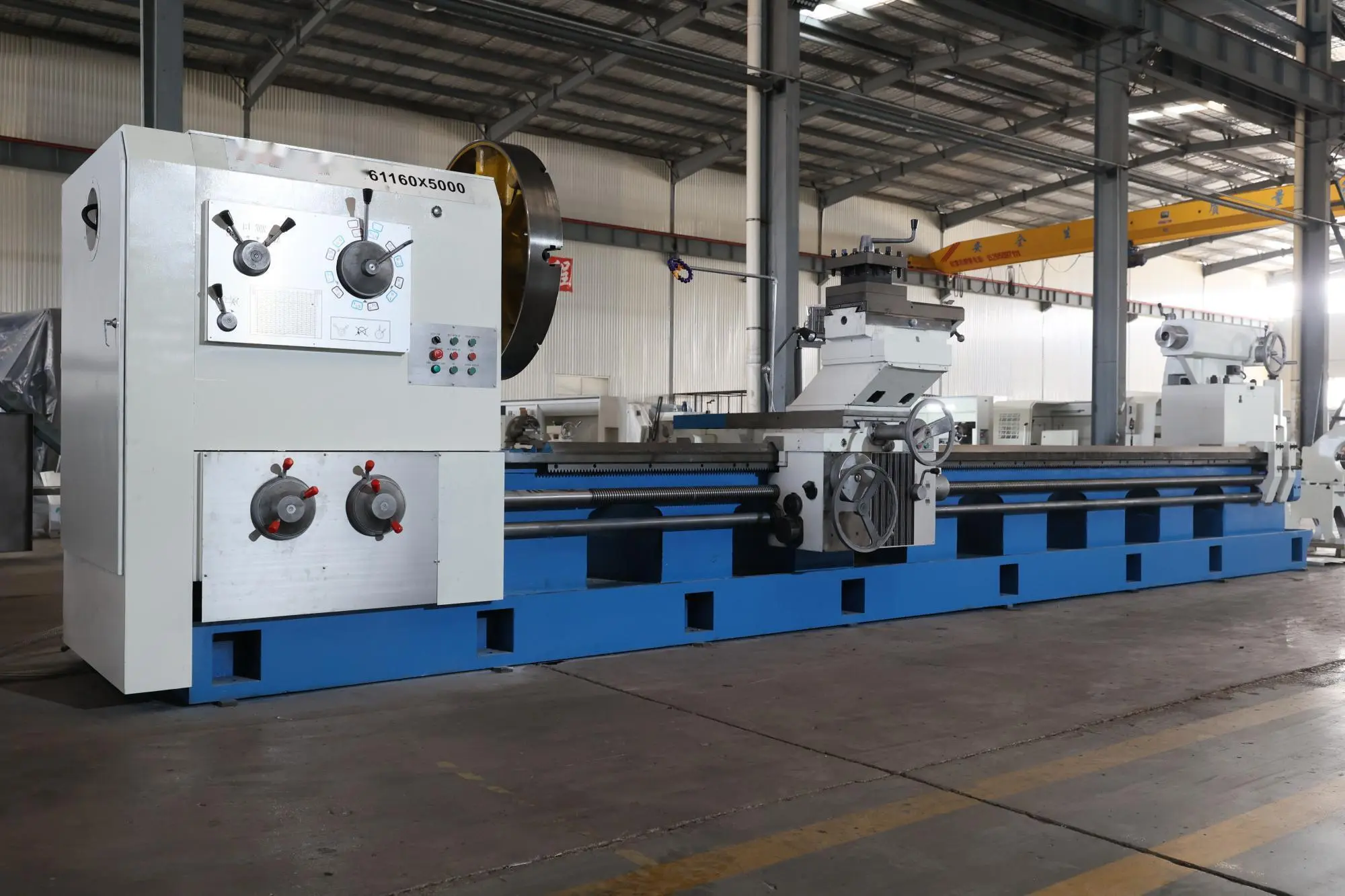

NEW ESP-MACHTURN ESP 12-40
Overview
The ESP-MACTURN 12-40 Heavy duty lathes are widely used in industries such as bearings, heavy machinery, mines, ships, wind power, automobiles, trains, hydropower, valves, aerospace, and military industries.
Specs
Max.swing over bed:1200mm
Max.swing over cross slide:800mm
Max.length of work-piece:4 meters
Guideway width:755mm
Max. load capacity:6T
Spindle center height:800mm
Spindle bore:140mm
Spindle nose:A2-15
Spindle taper hole:Metric 150/1:20
Mode of spindle speed:3 gears, infinitely variable speed within gears
Range of spindle speed:Low: 10-50r/min Medium: 50-115r/min High:
115-300r/min
Power of spindle motor:22KW
Z axis feed grade /range:32/0.1-1.5mm/r
X axis feed grade /range:32/0.05-0.75mm/r
Carriage raid traverse speed:3740mm/min
Cross slid raid traverse speed:1870mm/min
Metric thread grade/range:23/1-15mm
Inch thread grade/range:22/28-2mm
Traverse of cross slide:820mm
Max. Traverse of turret:300mm
Tailstock quill Diameter:160mm
Tailstock quill Travel:300mm
Tailstock quill Taper:MT6
No.of turret tool stations:4-station tool holder
Chuck:K72-1250mm four-jaw chuck
Overall dimensions(L×W×H):7100×2300×2200mm
Machine weight:15.7T
Voltage:415V,50HZ,3 PHASE
+Transformer
Equipped With
Fixed steadies (1 large).-Steady rest-Clamping range 70- 470mm & Follow rest-Clamping range 50-220mm /.
Rear removable splash guard./
3. Chuck Guard & Tool post Guard/
4.DRO for 2 axis/
5.Machine tool castings/
6.Main motor/
7.Inverter/
8.Feed box/9.Slide box/10.X and Z axis lead screws/11.Light bar &
Schneider Electric Components/12.125W，22L/min-Cooling water pump/13.Work
Lights/14.Cooling fan/15.M20×400 Ground screws and nuts/16.Adjusting bolt of shim plate
240mm/17.MT6 Standard fixed top/18.Toolkit-Spindle taper sleeve, flat head wrench,
hexagonal wrench, grease gun, flat screwdriver, cross screwdriver, spring pliers, tailstock
moving handle.
