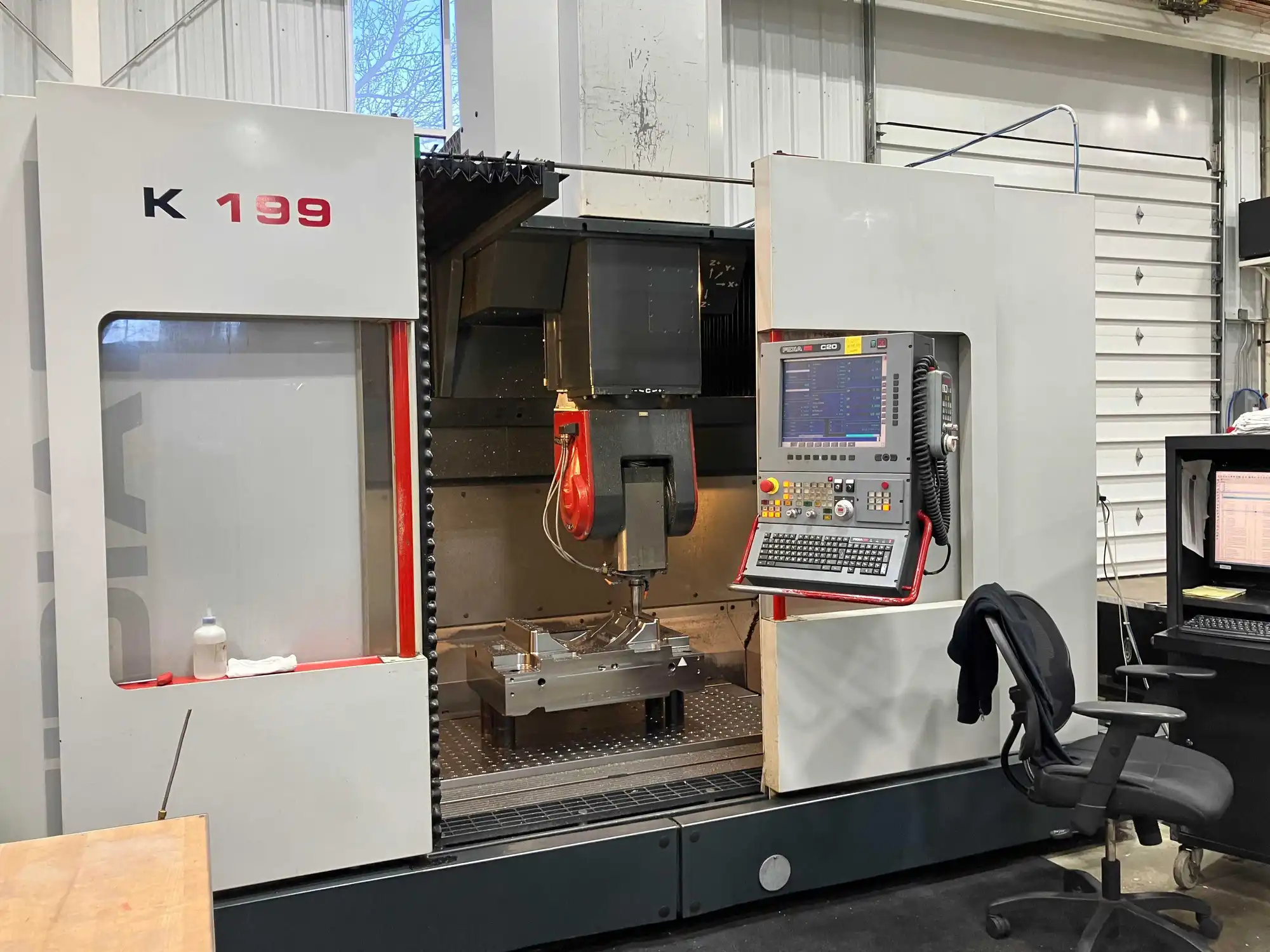

Fidia K-199 5-Axis VMC, New 2007
64" x 29" x 33", 24K RPM, HSK63A, 42 ATC
C20 Control, High Pressure Coolant, New Spindle 2018
| X-Axis | 65" | 1,651 mm |
| Y-Axis | 29.5" | 749.3 mm |
| Z-Axis | 33.5" | 850.9 mm |
| Table-W | 49" | 1,244.6 mm |
| Table-L | 79" | 2,006.6 mm |
| # Axis | 5 | 5 |
Fidia K-199 5-Axis Vertical Machining Center
New: 2007
Specifications:
Travels:
X-Axis: 64"
Y-Axis: 29"
Z-Axis: 33"
Table Size: 79" x 49"
Table Load Capacity: 26,455 Lbs
Rapid Traverse Rate: 1181 IPM
Spindle Speed: 24,000 RPM
Spindle Taper: HSK 63A
Spindle Motor: 55 kW
Tool Changer: 42 ATC
Equipped With:
Fidia C-20 CNC Control
High Pressure Coolant Through Spindle
Chip Conveyor
Coolant Filtration
Ballscrews for Linear Axis Movement
M5A/55 Continuous Bi-Rotary Head
New Spindle Installed 2018
+150 mm Rotating the C-Axis with Vertical Spindle
Dims: 202" x 173" x 163" H, 73000 Lbs
Fidia C-20 CNC Control
High Pressure Coolant Through Spindle
Chip Conveyor
Coolant Filtration
Ballscrews for Linear Axis Movement
M5A/55 Continuous Bi-Rotary Head
New Spindle Installed 2018
