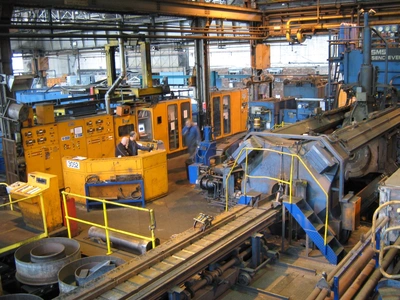

USED SMS HASENCLEVER 28/31.5 MN

Equipment Description

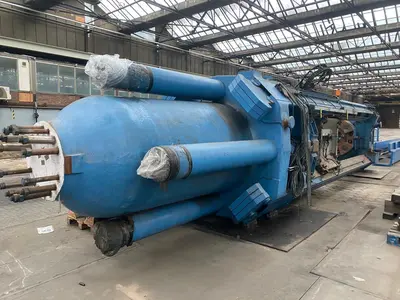

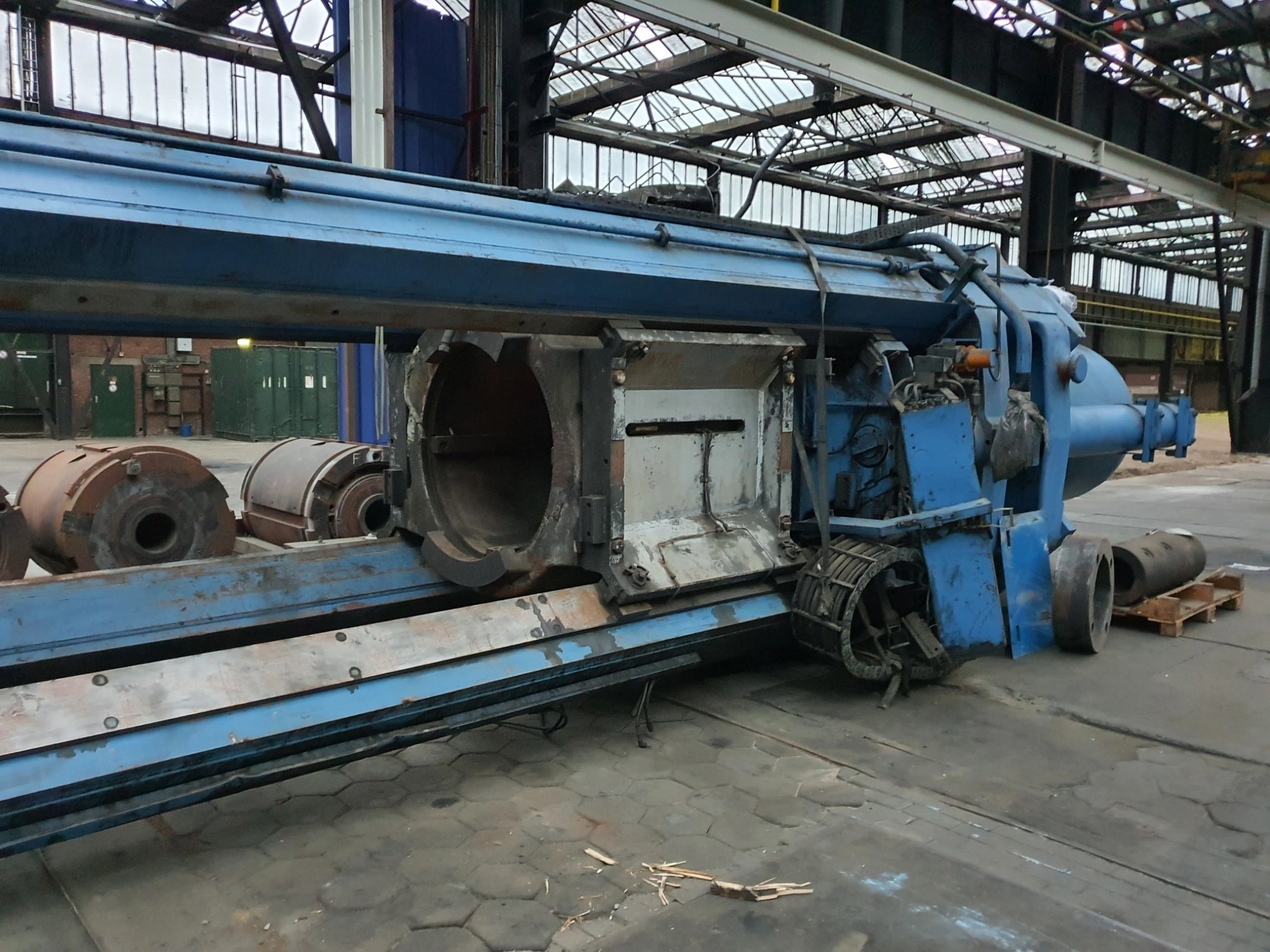

Used Indirect Extrusion Press

• Brand / Model: SMS Hasenclever 28 / 31.5 MN “McKechinstrang”
• Type: Horizontal indirect extrusion system for non-ferrous billets
• Drive: Mechanical main unit with hydraulic auxiliaries
• Country of Origin: Germany
• Current Status: Dismantled and available for dispatch
• Serial No. / Year of Manufacture: [To be confirmed]
2. Key Technical Specifications
Parameter Value
Main Piston Force 25.07 MN
Total Press Force with Coupling 31.23 MN
Max Stroke 3,070 mm
Working Stroke 2,825 mm
Ram Speed at 28 MN 0–64 mm/sec
Ram Speed at 31.5 MN 0–57 mm/sec
Billet Diameter Range Ø 230–355 mm
Billet Length (cold) 320–1,320 mm
Receiver Heating System Resistance; max 63 kW / 375 °C
Shear Force 0.64 MN
Profile Ejector Force 0.31 MN
Actuation Differential Cylinders Ø 280/200
3. Included Components

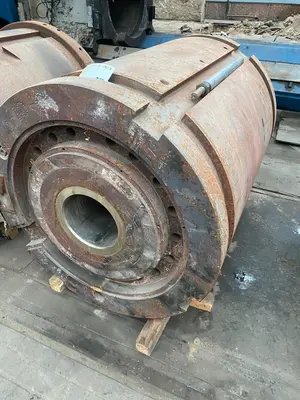

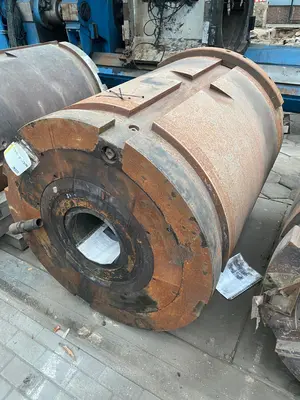

• Billet receiver with integrated heating
• Shearing unit
• Profile ejector

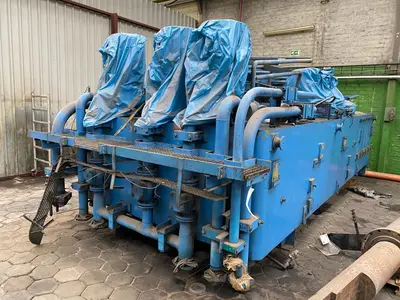

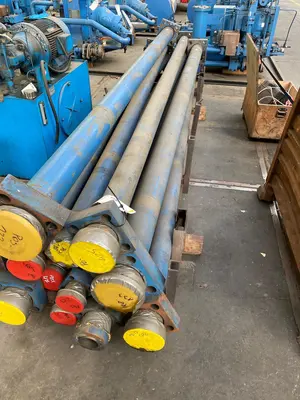

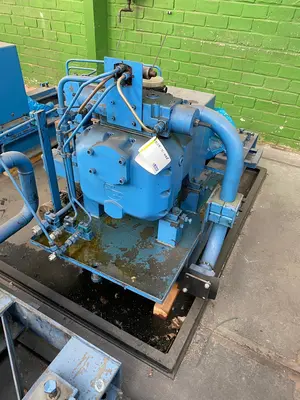

• Hydraulic system
• Centralized lubrication system
• Crosshead–receiver coupling system

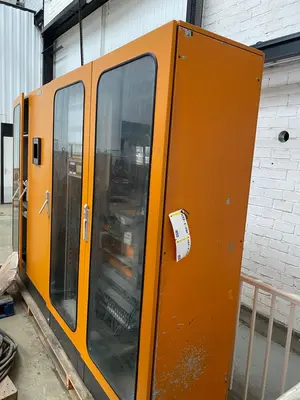

• Electrical cabinet and wiring (if available)
• Technical documentation
