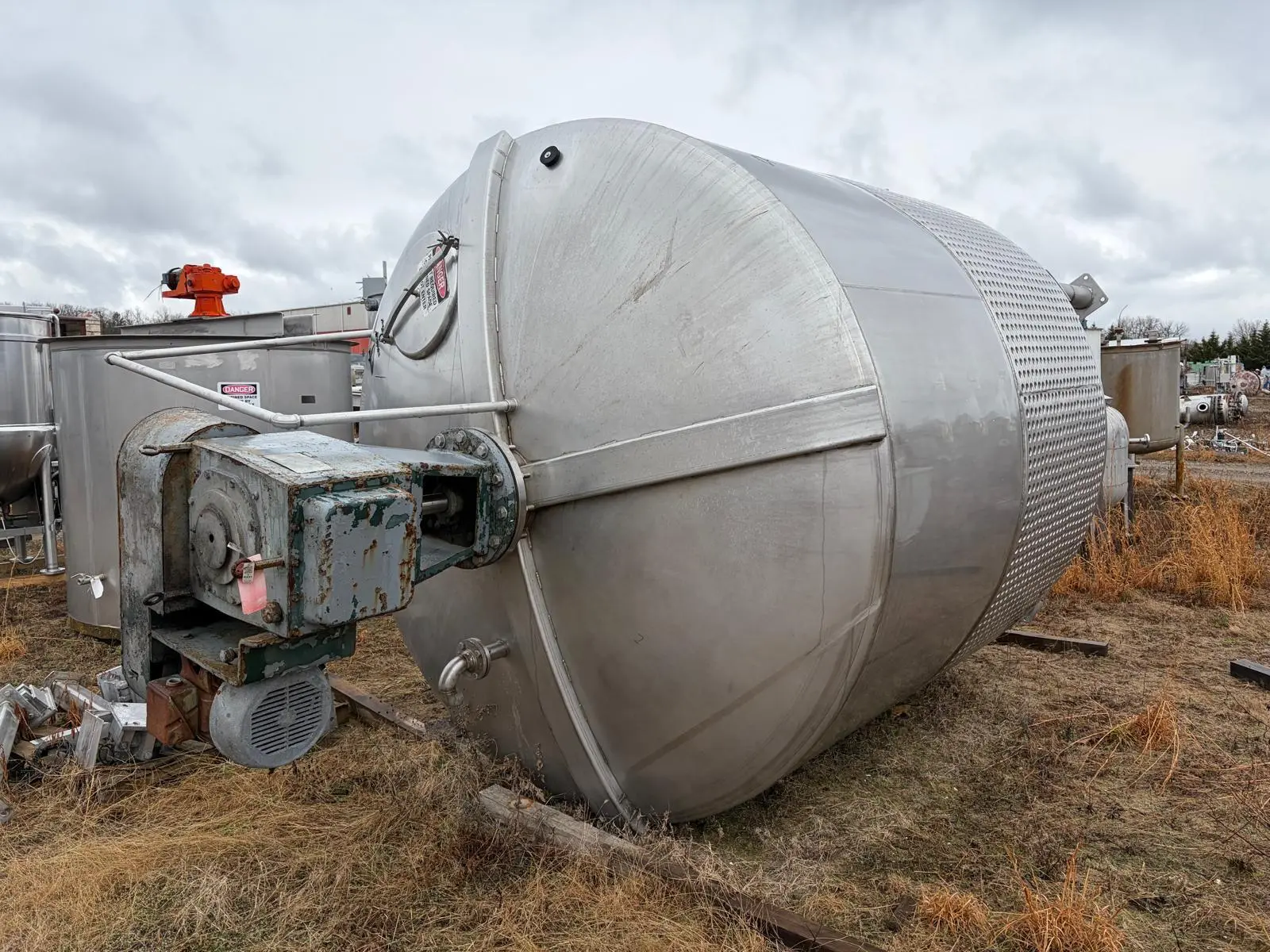

USED Stainless Steel Tank 4000 gallon

Overview
Stock #:
21796-04
Description

USED STAINLESS STEEL MIX TANK, APPROX. 4,000 GALLON

Top-entry, center-mounted agitator with gearbox and 15 HP motor
Bottom half dimple jacket
Mounted on legs

Capacity: Approximately 4,000 gallons (field measured)
Approximately 104" outside diameter x 96" straight side
Dished top and bottom heads (approx. 15" each)
Agitator motor: 15 HP, 1750 RPM, 230/460V, 3 phase, 60 Hz
Gearbox: Model 74-C-15V (OEM not confirmed, nameplate worn)
Agitator shaft: Approximately 2.5" diameter
Dual stage 3-blade turbine agitator approximately 40" in diameter
(4) buffles and a CIP spray ball.
Top nozzle: 12" Class 150 stainless steel flange (A182 F304)

Specifications
Capacity4,000 gal15,141.7 L
Diameter104"2,641.6 mm
Height125"3,175 mm
Type Of HeadsDish top, dish bottomDish top, dish bottom
Vertical/HorizontalVerticalVertical
Legs/Lugs/SkirtMounted on legsMounted on legs
Dimensions104in dia. x 96in straight side104in dia. x 96in straight side
