| Swing | 15" | 381 mm |
| Centers | 24" | 609.6 mm |
| Power | 10 hp | 7.5 kW |
| Workhead Power | 1.5 hp | 1.1 kW |
| Workhead Speed | 600 RPM | 600 RPM |
| Grinding Wheel Dia. | 20" | 508 mm |
| Max Weight Between Centers | 330 lb | 149.7 kg |
| Control | CNC (Fanuc Oi-TF CNC Control) | CNC (Fanuc Oi-TF CNC Control) |
| Dimensions | 187″ x 90″ x 90″ High Approx. | 187″ x 90″ x 90″ High Approx. |
| Weight | 14330 lbs Approx. | 14330 lbs Approx. |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

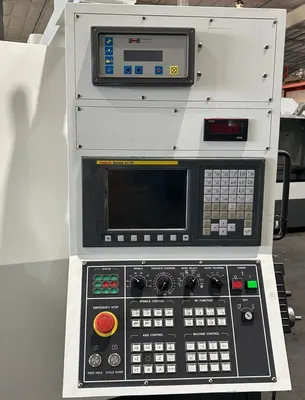

Fanuc Oi-TF CNC Control
Absolute/Incremental Combined Programming
Swivelable Table
Inch / Metric Conversion
Stored Stroke Check
Auto Reference Point Return
Automatic Acceleration & Deceleration
Automatic Lubrication system
Capacity:
Max Grinding Diameter: 14.17″
Max Grinding Length: 23.62″
Max load Capacity: 330 lbs
Swing Over Table: 15″
Center Distance Between Spindle & Slide Table: 24″
Distance Between Centers: 24″

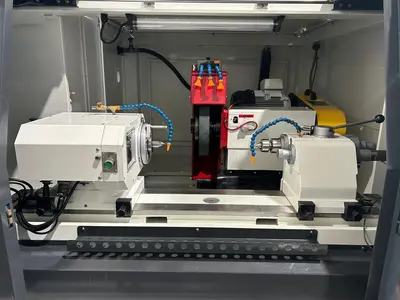

Grinding Wheel:
Speed: 2000 RPM
Wheel Size: 20″ X 2″ – 4″ X 6″
Grinding Wheel Seat:
Feed Angle: 90 Degree
Maximum Feeding Speed: 236 IPM
Least Travel Increment: 0.001 Degree
Total Feeding Travel: 11.02″
Motor: 10 HP
Workhead:
Speed: 10 – 600 RPM
Center Taper: MT-4
Motor: 1.5 HP
Table:
Rotation Angle: +/- 9 Degree
Least Travel Increment: 0.001 Degree
Rapid Feed Rate: 393 IPM
Tailstock:
Tailstock Quill Stroke: 1″
Tailstock Taper: MT-4
General:

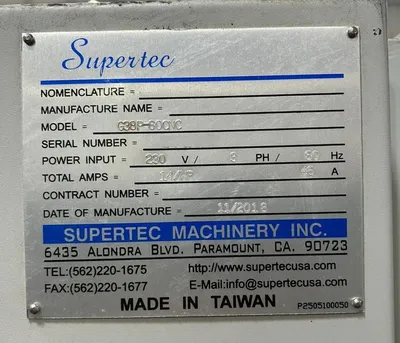

Power Source: AC 230 V / Three Phase / 60 Hz
Power Requirement: 6.5kva
Overall Dimensions: 187″ x 90″ x 90″ High Approx.
Weight: 14330 lbs Approx.
MPG Handwheel Control

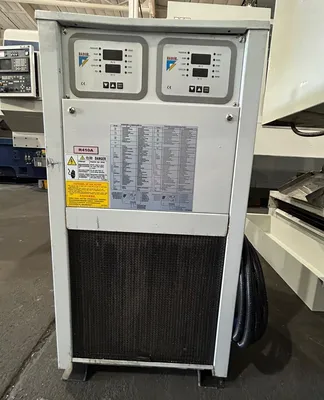

Spindle Chiller Unit

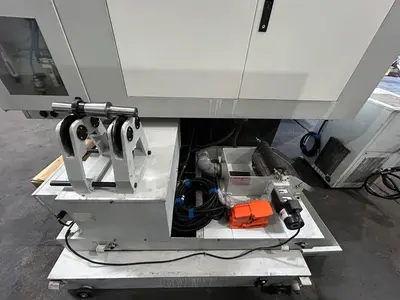

Paper Filtration System
Manual Wheel Balancing System
Coolant System
Hydraulic Tailstock
Levelling Pads
