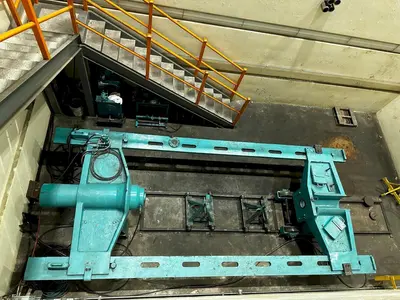

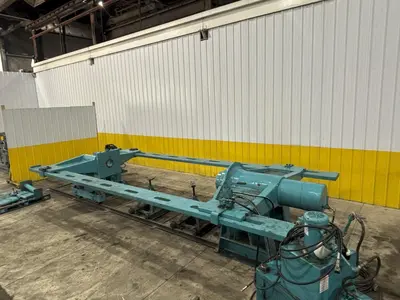

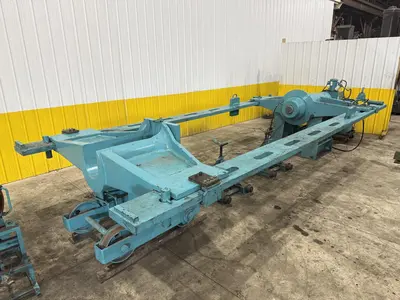

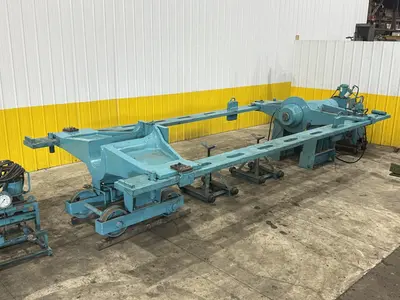

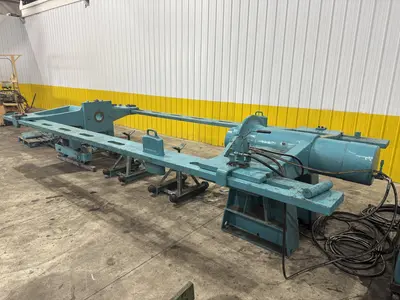

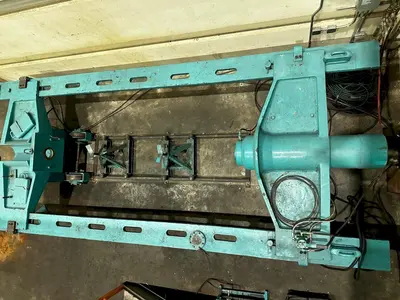

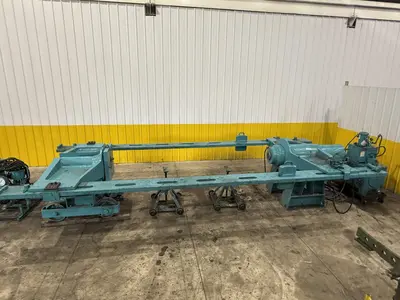

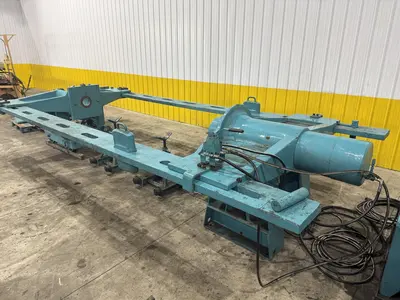

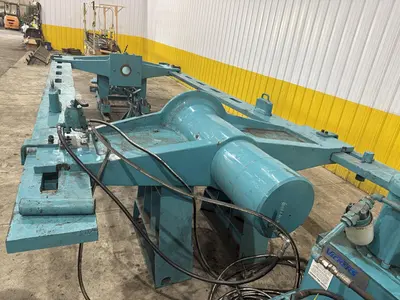

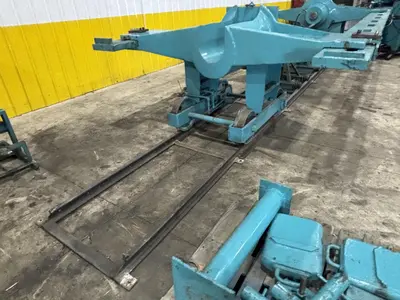

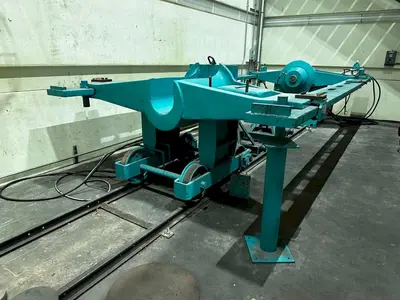

CAPACITY .................. 500 TON
STROKE OF RAM ............. 16"

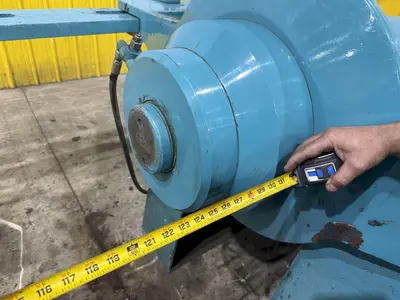

DIAMETER OF RAM ........... 15"
DIAMETER OF PUSH POINT .... 6"

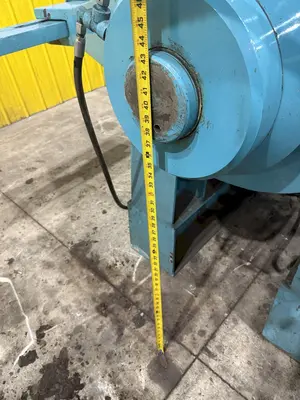

RAM CENTER TO FLOOR ....... 40.5"
RAM TO RESISTANCE BLOCK ... 32" TO 120"
RAM & PUMP SPEED .......... VARIABLE
PRESSURE TONNAGE GUAGE .... YES

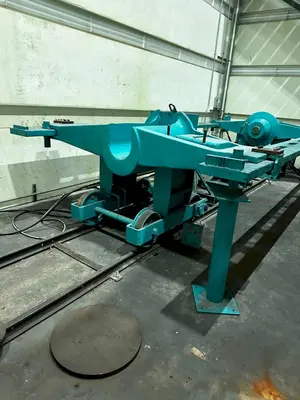

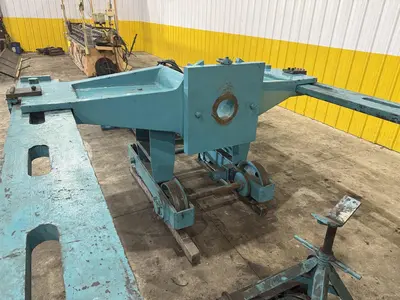

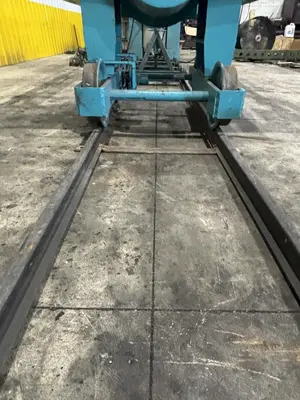

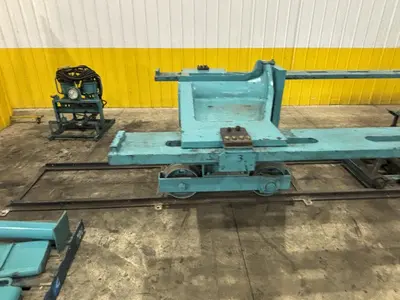

RESISTANCE BLOCK MOVABLE .. YES, HYDRAULIC DRIVEN

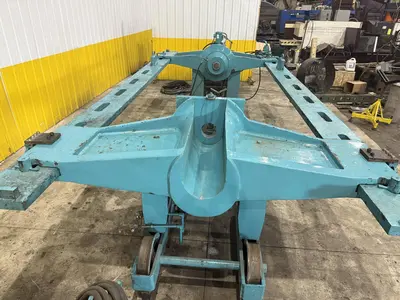

BETWEEN STRAIN BARS ....... 78"
STRAIN BARS DIMENSIONS .... 13" WIDE X 2-3/8" THICK

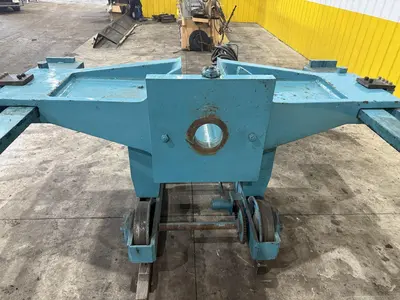

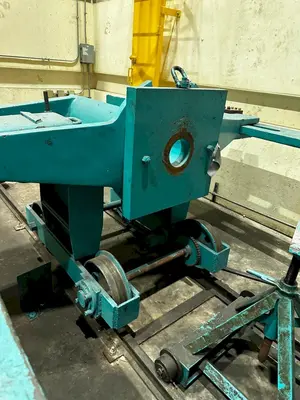

WIDTH OF RESTANCE BLOCK ... 36"

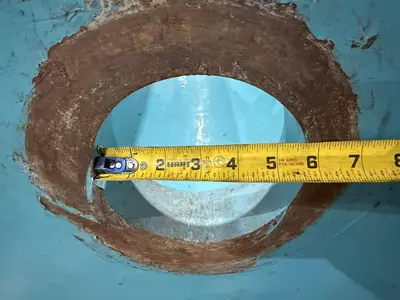

HOLE IN RESISTANCE BLOCK .. 11"

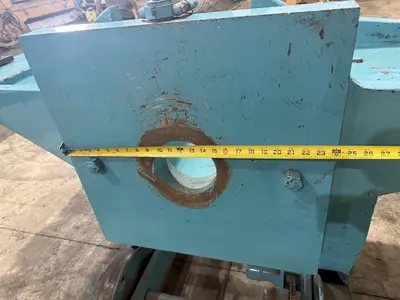

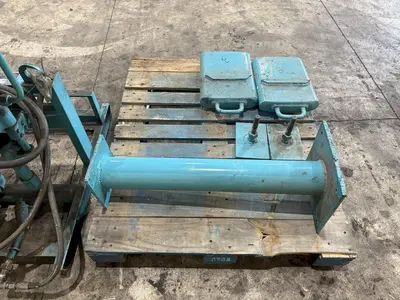

BLOCK PLATE ATTACHMENT .... 24" X 24" X 2-1/2" THICK
HOLE IN THE BLOCK PLATE ... 5-3/4" DIAMETER

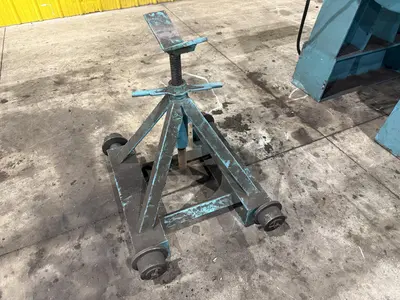

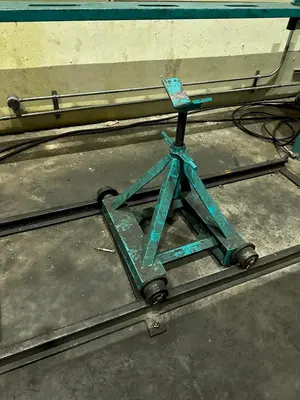

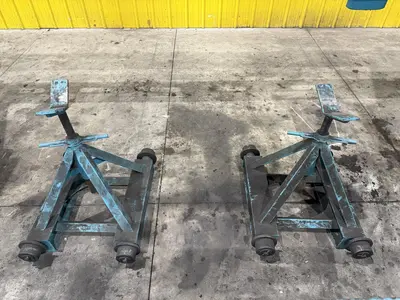

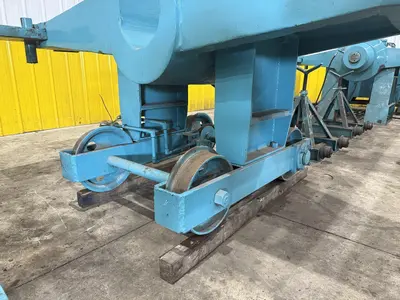

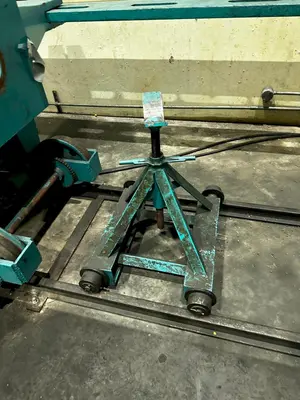

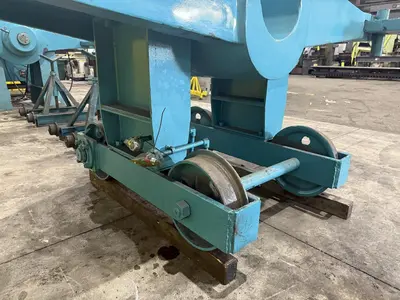

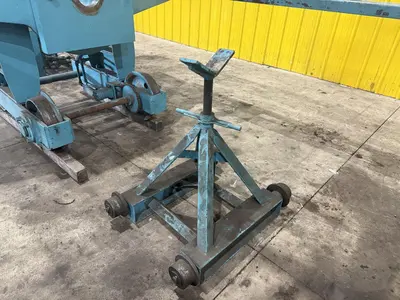

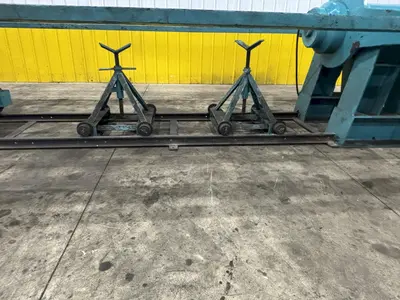

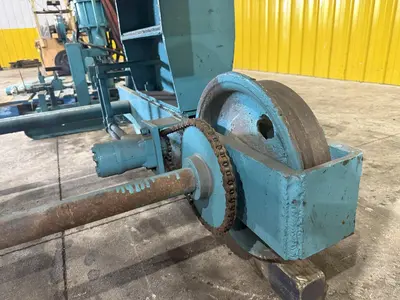

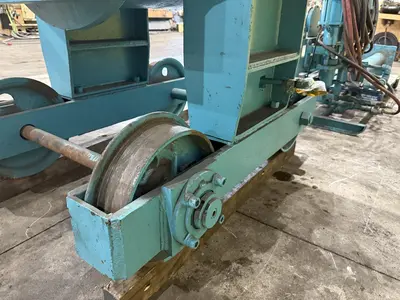

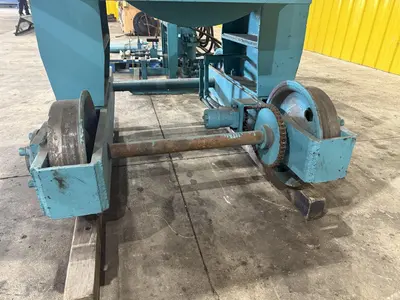

MOVABLE SUPPORT STANDS .... 2

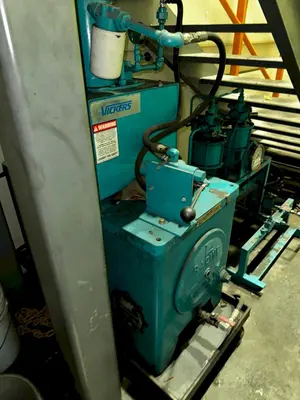

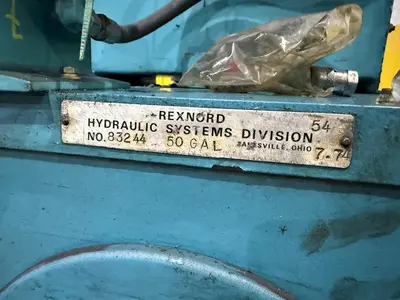

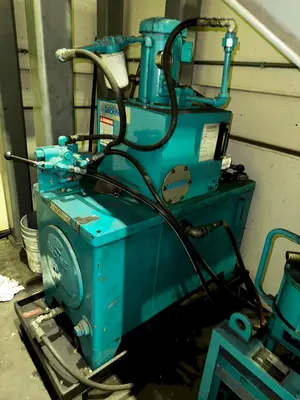

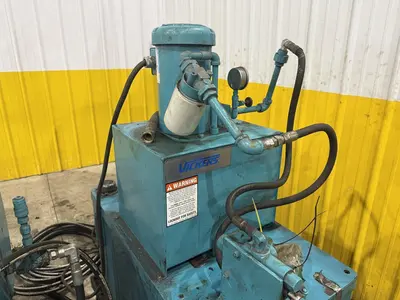

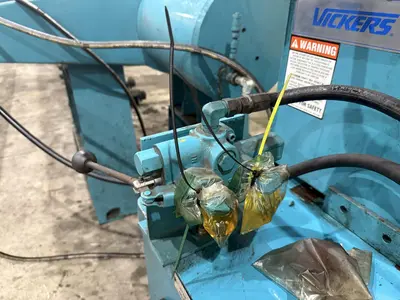

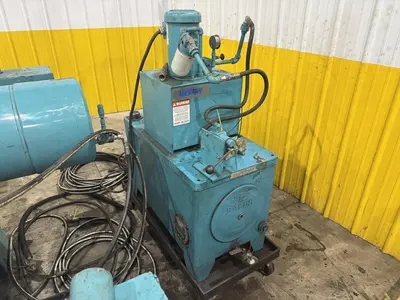

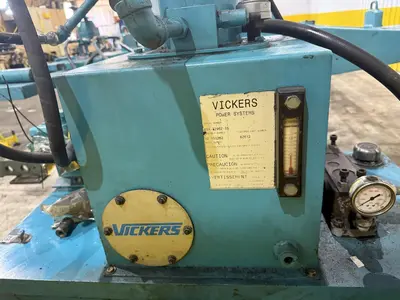

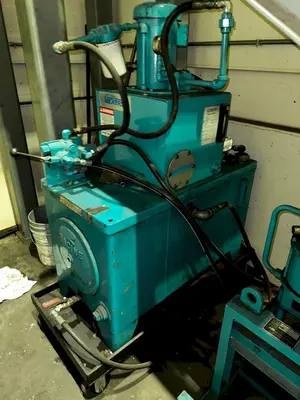

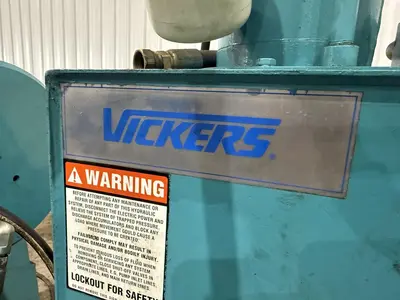

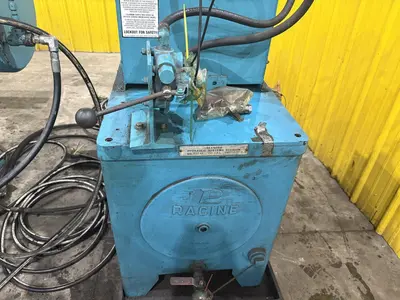

VICKERS HYDRAULIC UNIT:
SERIAL .................... 00A-32962-05
ASSEMBLY NUMBER ........... 02-150262
YEAR NEW .................. 2000
GALLON CAPACITY ........... 50

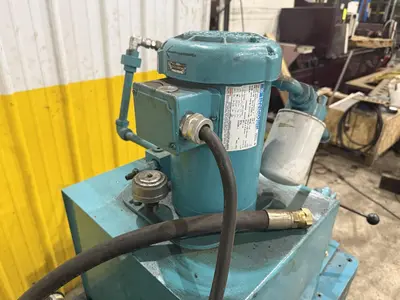

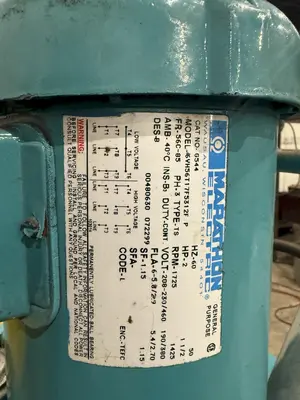

HYDRAULIC UNIT MOTOR ...... 1.5 HP

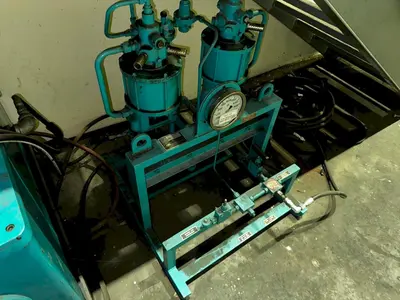

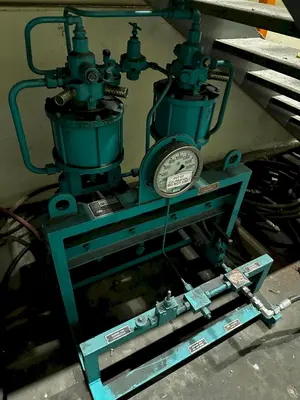

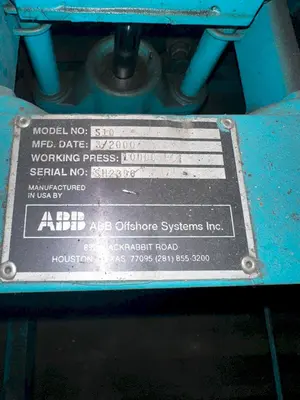

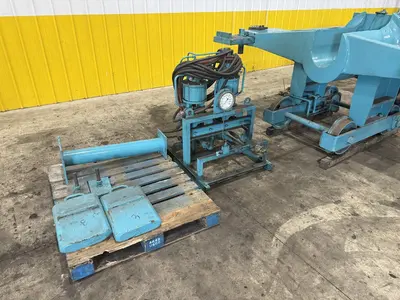

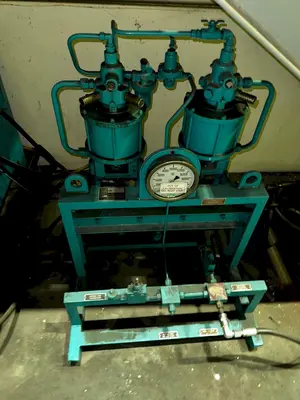

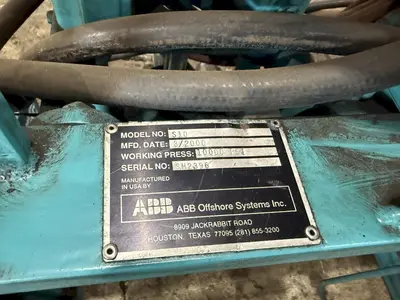

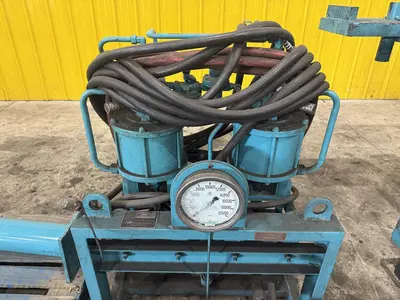

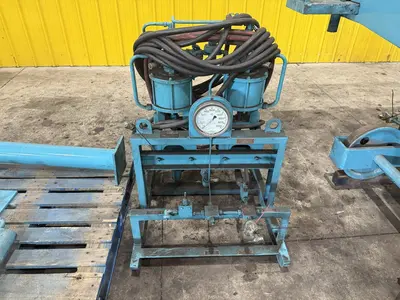

ABB OFFSHORE BOOST PRESSURE UNIT:
SERIAL .................... SH2396
MODEL ..................... S10
YEAR NEW .................. 2000
WORKING PRESS ............. 10000 PSI

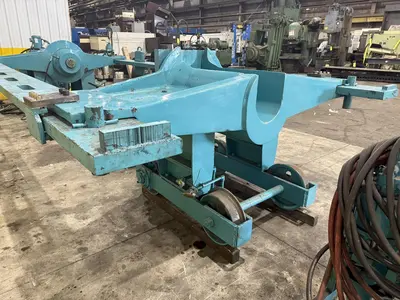

Brand
VICKERS
Type
Presses, Wheel
Stock No.
23422
