USED 2015 MURATEC MW50

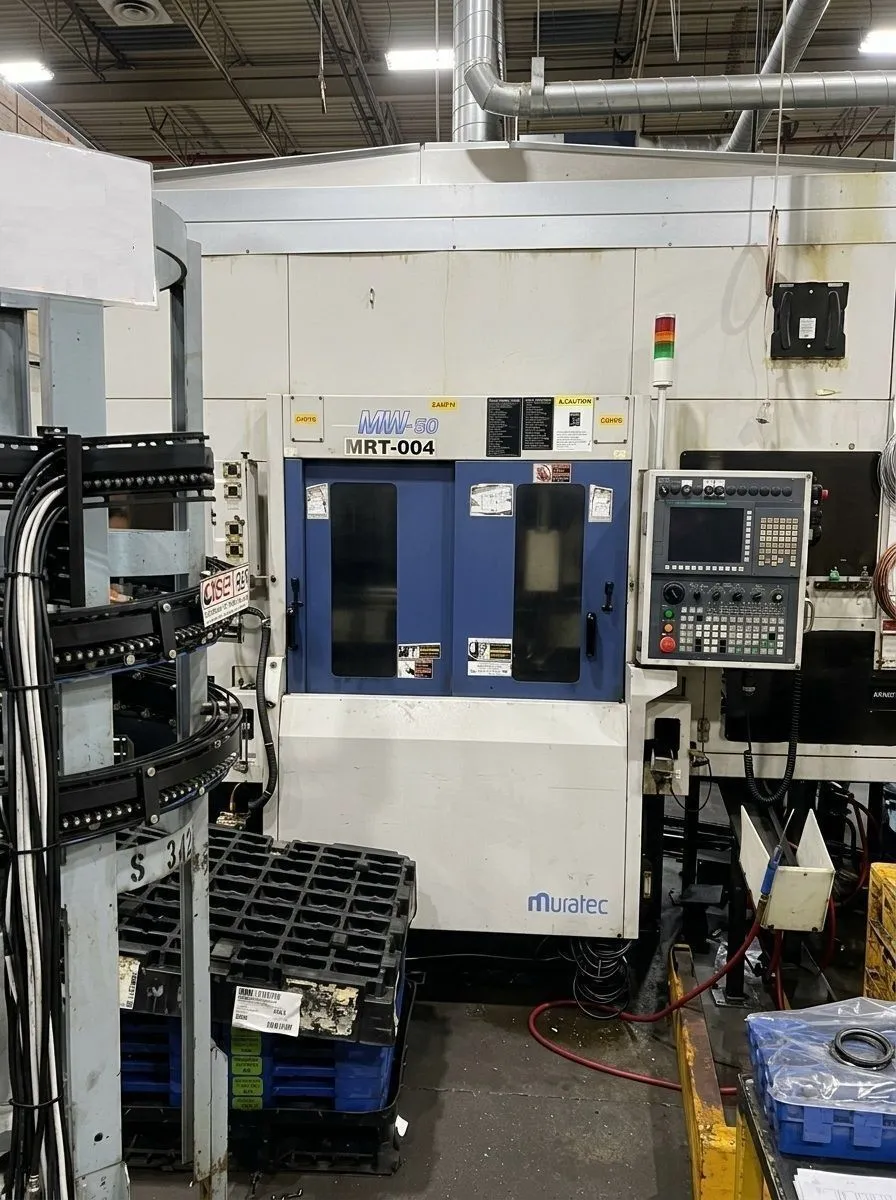

Muratec MW50 Twin Spindle CNC Lathe (2015)

• Maximum Chuck Size: 6 inches / ø 165 mm
• Target Workpiece Size: ø 50 mm × 50 mm (2" x 2")
• Distance Between Spindles: 620 mm
• Maximum Swing: 6.5 inches
• Distance Between Centers: 7.9 inches

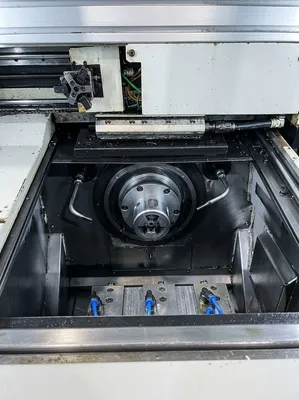

Spindle Specifications

• Number of Spindles: 2 (parallel horizontal configuration)
• Maximum Spindle Speed: 6,000 RPM
• Spindle Drive Motor: 7.5 kW (30-min rating) × 2 spindles (Optional: 5.5 kW × 2 configuration)
• Spindle Nose Size: Flat nose / JIS A2-5
• Spindle Bearing Diameter: 80 mm (front bearing)
• Spindle Bore Diameter: 32 mm or 47 mm (depending on selected spindle option)

Turret & Tooling

• Number of Turrets: 2 gang-style tooling blocks
• Turret Stations / Plate Width: 270 mm width tool plates
• Standard Capacity: Usually mounts up to 4 tools per block
• Tool Diameter/Shank Size: 25 mm

Axis Travel & Motion

• X-Axis Travel: 200 mm
• Z-Axis Travel: 200 mm
• X-Axis Rapid Traverse Rate: 18 m/min
• Z-Axis Rapid Traverse Rate: 24 m/min
