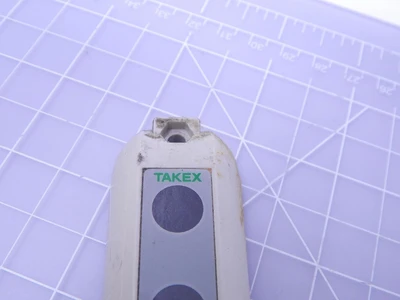

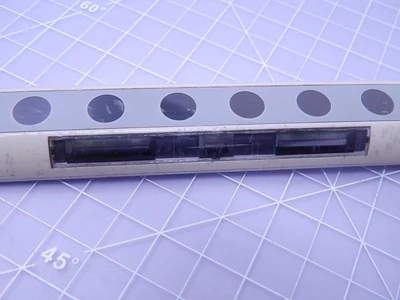

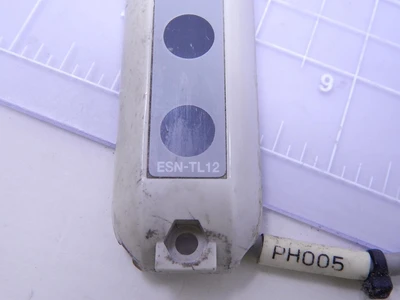

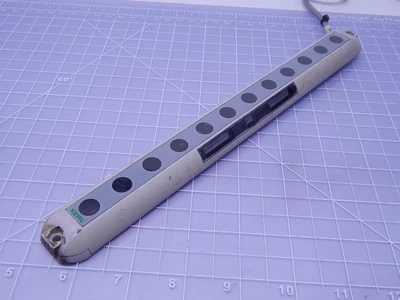

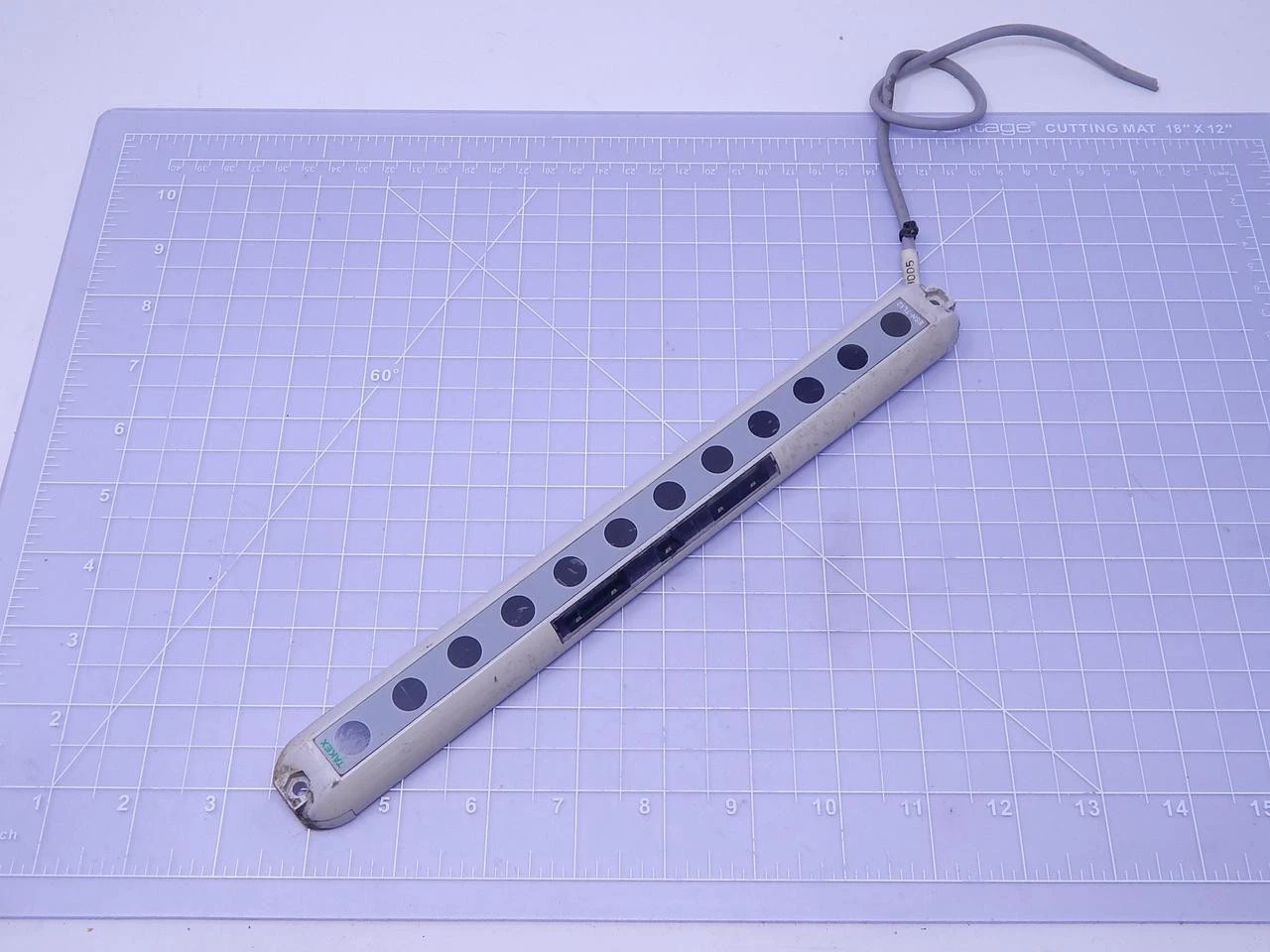

TAKEX ESN-TL12 LIGHT CURTAIN SENSOR T112915

Detection: troughbeam, range: 5 m max, detecting object: 30 mm max, opaque object, optical axis pitch: 20 mm, No. of optical axis: 12, detecting width: 220 mm, power supply: 12-24 VDC 0 % Ripple 10 % max, current consumption: 110 mA max, output mode: NPN output: open collector, rating: sink current 100 mA, 30 VDC max, PNP output: open collector, rating: source current 100 mA, 30 VDC max
