MITUTOYO 176-558A 71-34302-01 VISION MEASURING MACHINE

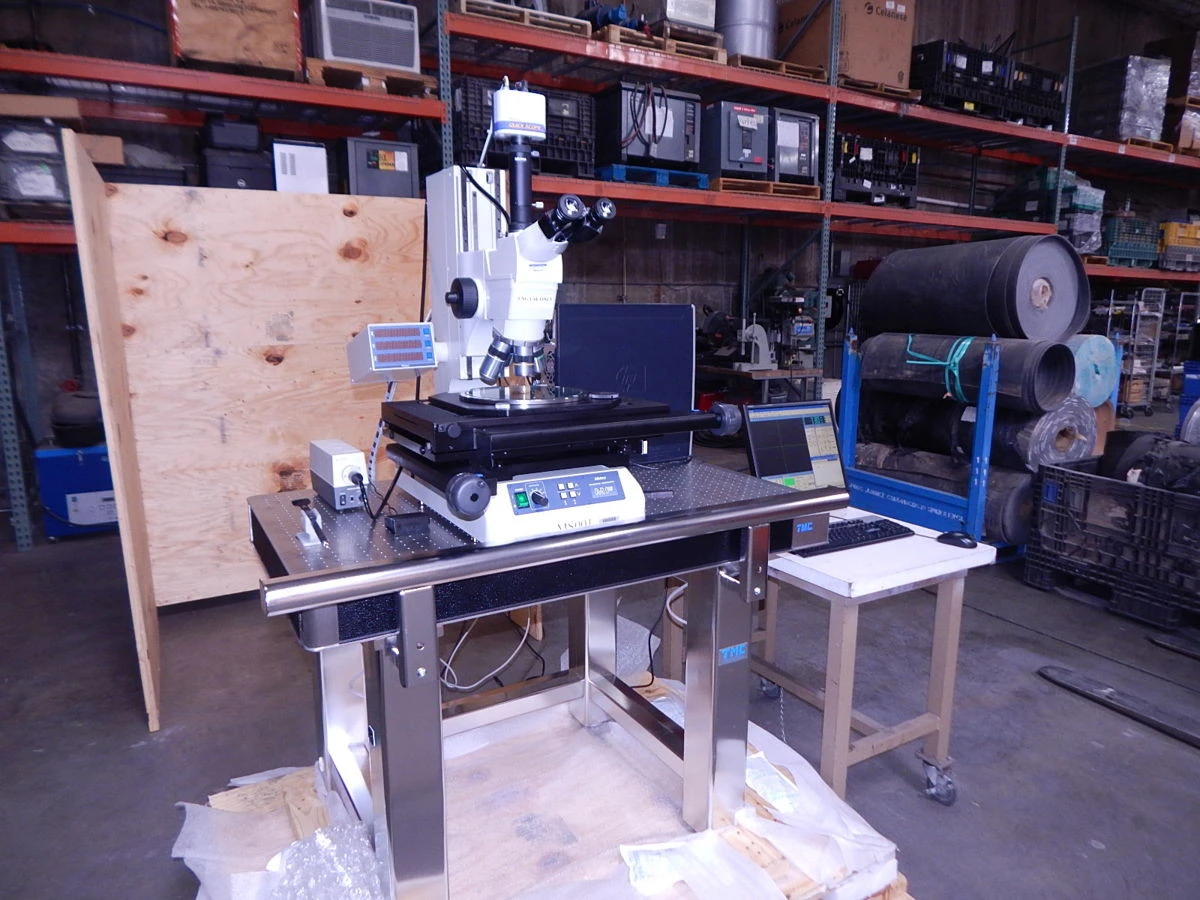

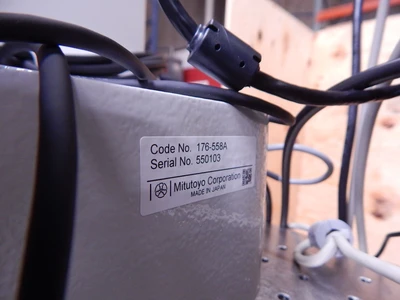

Mitutoyo 176-558A / 71-34302-01 CNC Vision Measuring Machine (Quick Vision Series) – Used, Excellent Condition

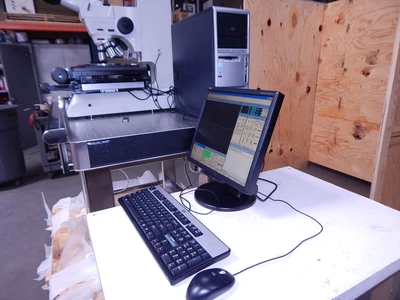

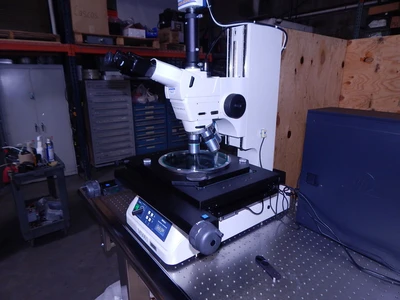

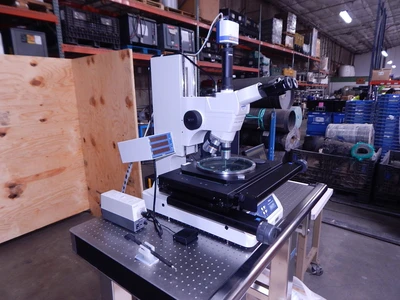

This is a high-precision Mitutoyo Vision Measuring System (often part of the Quick Vision family) designed for fast, accurate, non-contact 2D/3D dimensional inspection. It uses advanced video imaging with a high-resolution color camera, programmable zoom optics, LED illumination (coaxial, transmitted, and ring light), and automated edge detection for repeatable measurements on small to medium-sized parts, PCBs, stamped components, plastics, and precision machined parts.

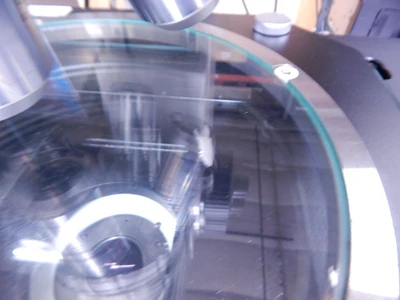

Unit is in great condition with just one small scratch in the stage aperture glass and other in the stage plate.

DRO is working ok when you measure with the application program, but fails to rezero the stage at startup, giving

a "error occurred in ABS execution" (probably a program bug). The application program loads and works ok. Both lights working fine.

Microscope includes:

      (1) lens BD Pan Apo 10x/0.28 f=200 P/N K96005206

      (1) lens BD Pan Apo 20x/0.42 f=200 P/N G74022806

      (1) lens BD Pan Apo 50x/0.55 f=200 P/N E31055803

      (1) lens BD Pan Apo 100x/0.70 f=200 P/N H32007405

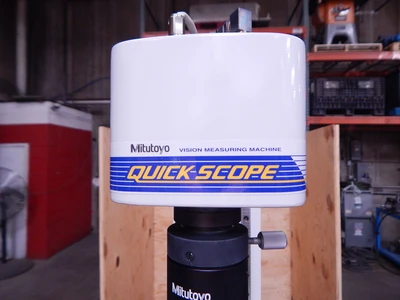

      (1) Mitutoyo Quick Scope Camera.

      (1) SCHOTT Megalight 100 camera

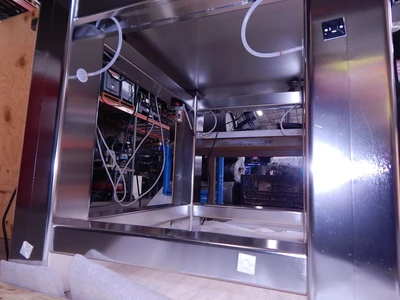

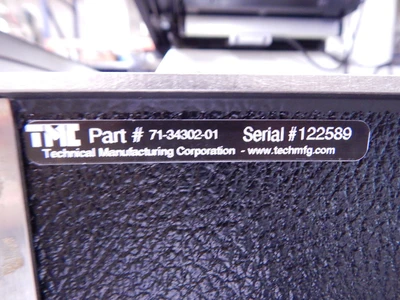

      (1) TMC Technical manufacturing Vibration Control Table P/N 71-34302-01.

Unit came in original wooden crate.

Manuals not included.
