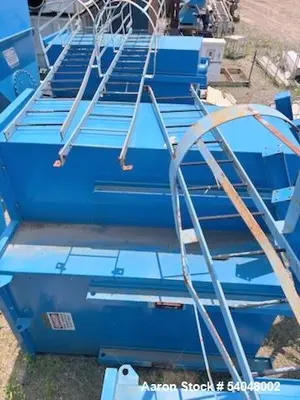

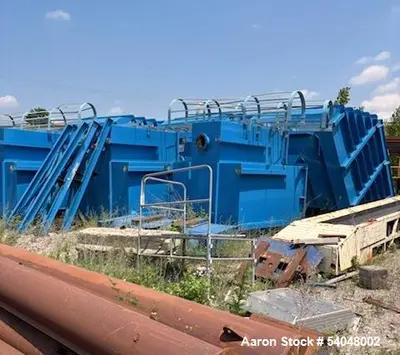

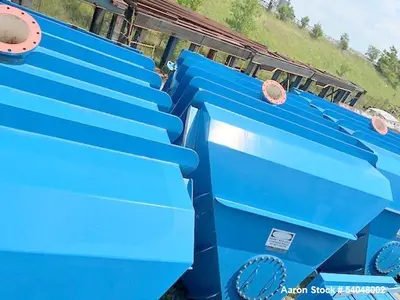

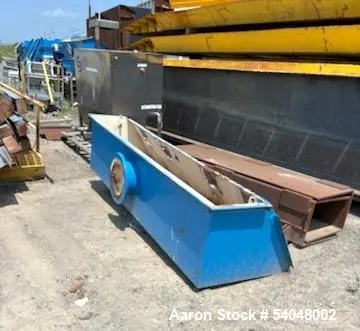

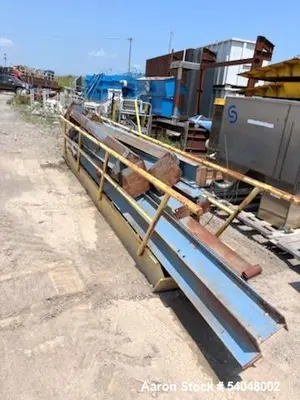

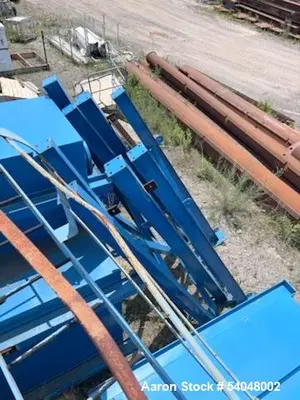

USED HYDROFLOW CMCIPC-2500-2.0-HP

Manufacturer Information:

Manufacturer: HydroFloTech

Model: CMCIPC-2500-2.0-HP

System Type: High Profile Inclined Plate Clarifier

Condition: Used

Flow Capacity: 500 GPM (design flow)

Description:
This used HydroFloTech ClariMax Inclined Plate Clarifier is a high-efficiency, high-profile solids settling system designed for industrial wastewater treatment. Engineered with a 2500 sq. ft. Projected Surface Area (PSA) and a Hydraulic Loading Rate of 0.2 GPM/sq. ft., the system is optimized for 500 GPM throughput. The clarifier includes removable and serviceable plate packs mounted in 55° sloping chambers for superior sedimentation and ease of cleaning. Additional features include 3000-gallon flash/flocculation chambers, a 20 GPH polymer pump, 260 GPM sludge pump, 12" ANSI flange inlets/outlets, and a 2900-gallon polyethylene effluent tank. The system is skid-mounted with stainless steel framing and includes a bottom sludge collection chamber (no auger).

Specifications:

Model: CMCIPC-2500-2.0-HP

Flow Rate Capacity: 500 GPM

Projected Surface Area (PSA): 2500 sq. ft.

Hydraulic Loading Rate (HLR): 0.2 GPM/sq. ft.

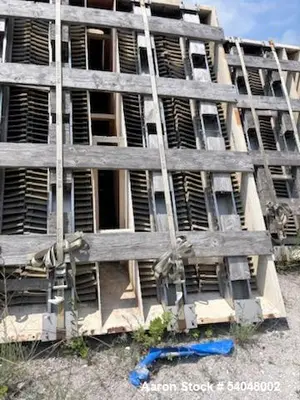

Plate Pack Configuration: Multi-chamber, removable, 55° angle

Flash/Floc Chambers: 3000-gallon total capacity (600/2400 split)

Polymer Pump: 20 GPH, internal and external control

Sludge Pump: 260 GPM, mounted

Inlet/Outlet Fittings: 12" – 150# ANSI flange

Sludge Collection: Bottom chamber (no auger)

Effluent Tank: 2900-gallon polyethylene tank

Mounting: Stainless steel skid-mounted

Condition: Used

Applications:

Industrial Wastewater Clarification

Food & Beverage Effluent Treatment

Pulp and Paper Mill Wastewater

Metal Finishing and Plating Waste

Chemical Plant Effluent

Oil & Gas Process Water

Stormwater Runoff Settling

Sludge Thickening

Leachate Treatment

Mining & Aggregate Processing Water

What Might This Be Used For:

Removing suspended solids from high-volume wastewater streams

Clarifying industrial process water before reuse or discharge

Treating oily water or heavy particulate waste flows

Preparing water for filtration or discharge compliance

Thickening sludge prior to dewatering

Acting as a primary clarifier in a multi-stage water treatment plant

Improving performance of downstream filters and membranes

Lowering TSS and turbidity levels in effluent streams

Pre-treatment for biological or chemical water systems

Collecting and isolating sludge from clarifier overflow
