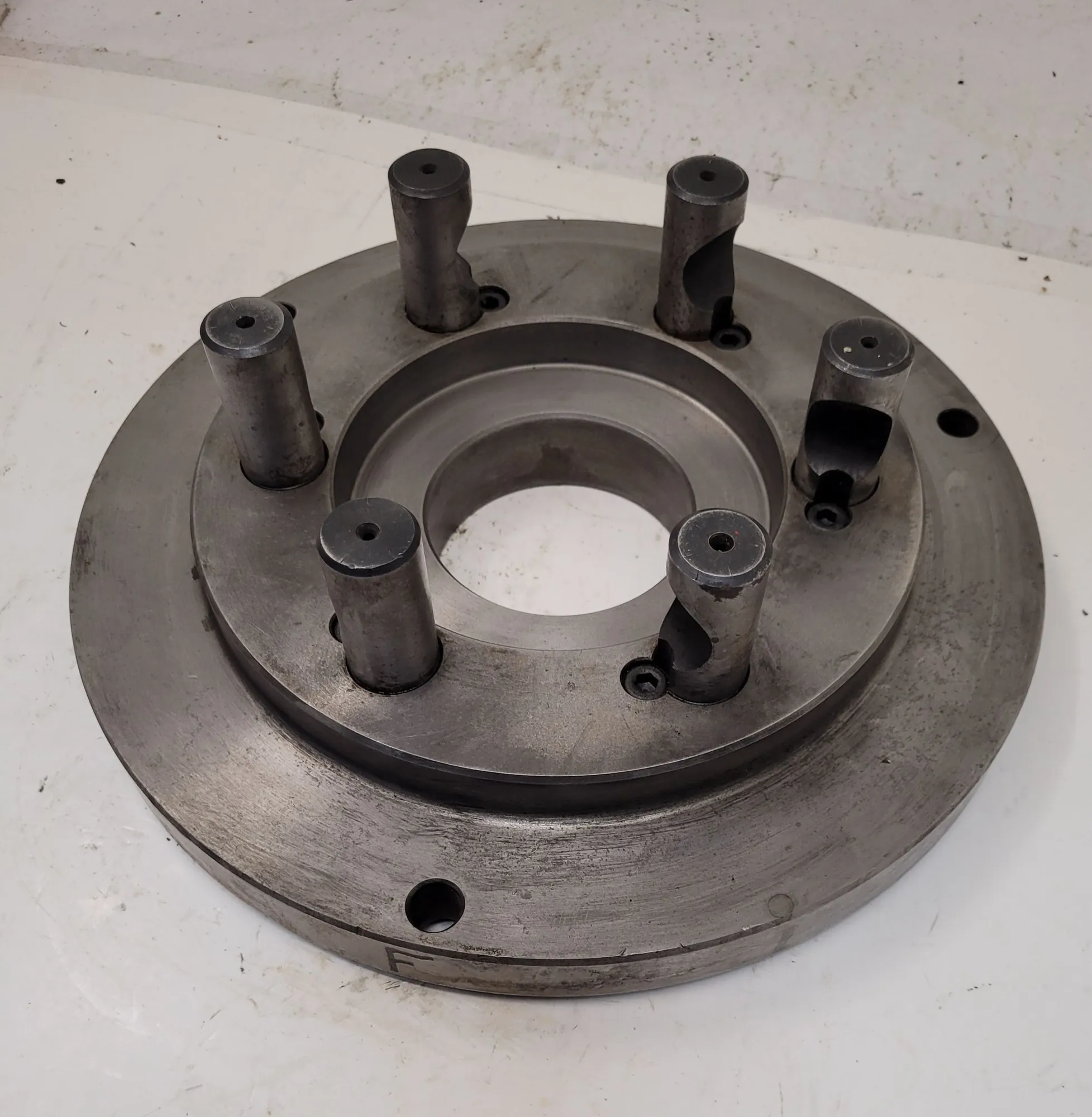

USED Buck Chuck D1-8 Lathe Chuck Mount – 12in Diameter

Buck Chuck D1-8 Lathe Chuck Mount Adaptor, 12-inch diameter, used. Features include 1-inch thickness, six 1-inch diameter pins, and a 10-inch locating hub. Ideal for tooling and lathe chuck setups. Suitable for precise applications.

D1-8 Lathe Chuck Mount Adaptor – 12in Diameter

Overall Diameter: 12”
Thickness: 1”
Through Holes: .54”
1” Diameter Pins, 6 Pins total
Diameter of hole on pin side: 5.5” / .7” deep
10” Diameter Locating Hub
3.38” ID Hole
.245” Hub thickness to main plate
