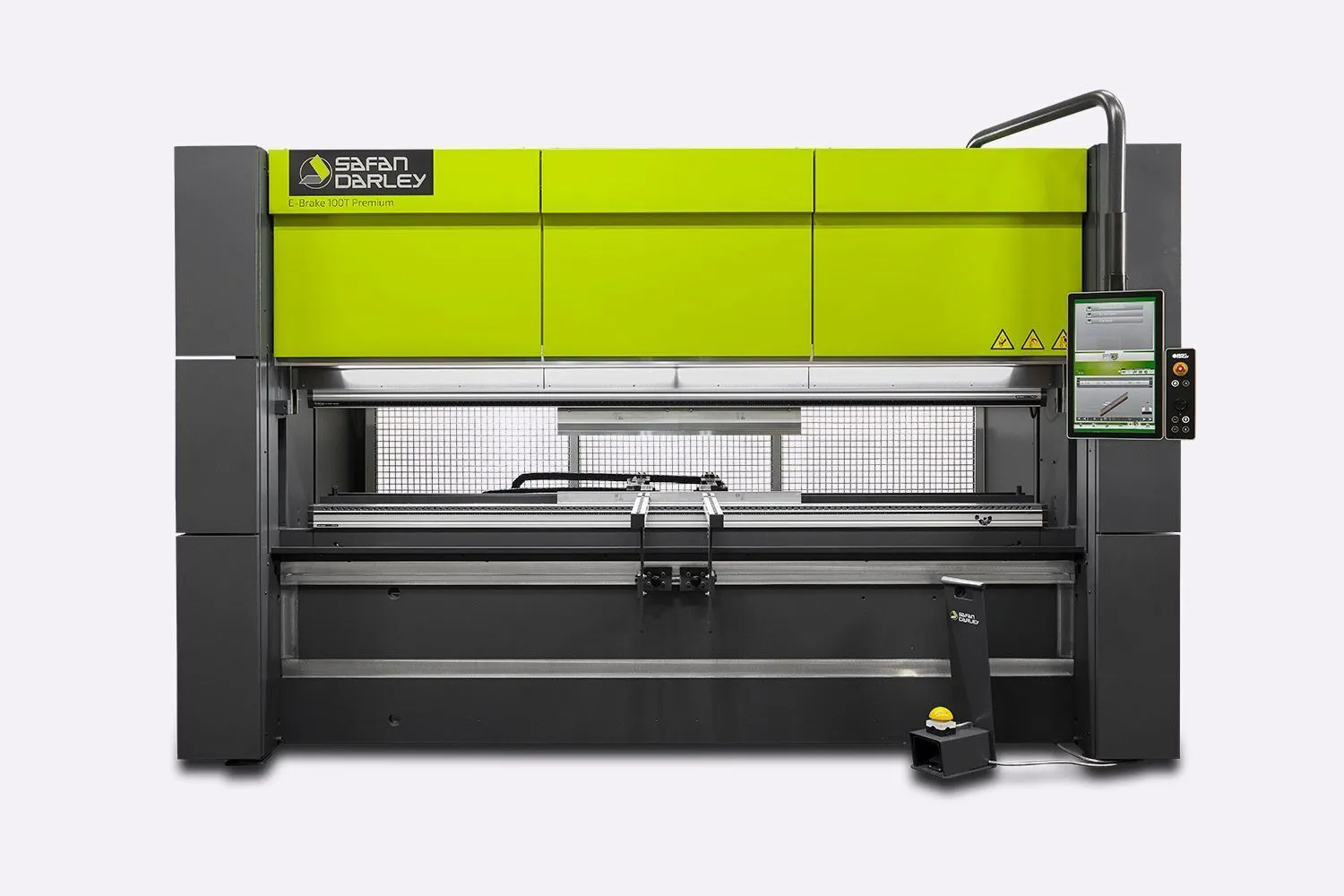

NEW SAFAN DARLEY 50-2050
Overview
Productive all-around machine
E-Brake Premium is the successor to the current E-Brake up to 143T. One key feature is the new design, which significantly improves the ergonomics. The controls are also given a new design and are Industry 4.0-ready, which means that they communicate with external systems.
The Premium series of E-Brakes are our most popular sellers. The Premium comes in US Tons of 39T, 44T, 55T, 88T, 110T, 143T.
Key Features
Efficiency
Up to 30% shorter cycle times
Economy
Up to 50% energy saving
Reliability
Mechanical drive system with 5 year warranty
Stability
Reinforced O-frame for optimum stability
Safety
Integrated safety system and absence of hydraulic oil
Usability
The most functional and intuitive Man-Machine interface
Specs
Pressure force in US Ton 55
Bending length in inches 80
Maximum stroke in inches 12
Q size in inches 23
Closing speed in inch/min 378
Bending speed max. in inch/min 48
Return speed in inch/min 378
Motor power in kW 11
Machine weight in lb 13.4
Machine length in inches 130
Machine height in inches 106
Equipped With
EC10 press brake control, single screen with splitscreen
1 Hold to Run operating console
CNC-controlled R-axis
CNC-controlled Y1-Y2 axis (top beam adjustable inclined +/- 0.1 inch)
CNC-controlled back gauge (X-axis) with a wide range
Manual variable adjustment of back gauge fingers width across a linear guide
Build in size of 23.22 inch (Q-dimension)
NSCL I MC Pro top tool mechanical clamping system
OB/S-3 lower tool mechanical clamping system
2 Support arms (11.81 inch)*
Programmable and integrated safety light guard*
Safety in compliance with CE*
* Standard only for CE countries
