Productive all-around machine

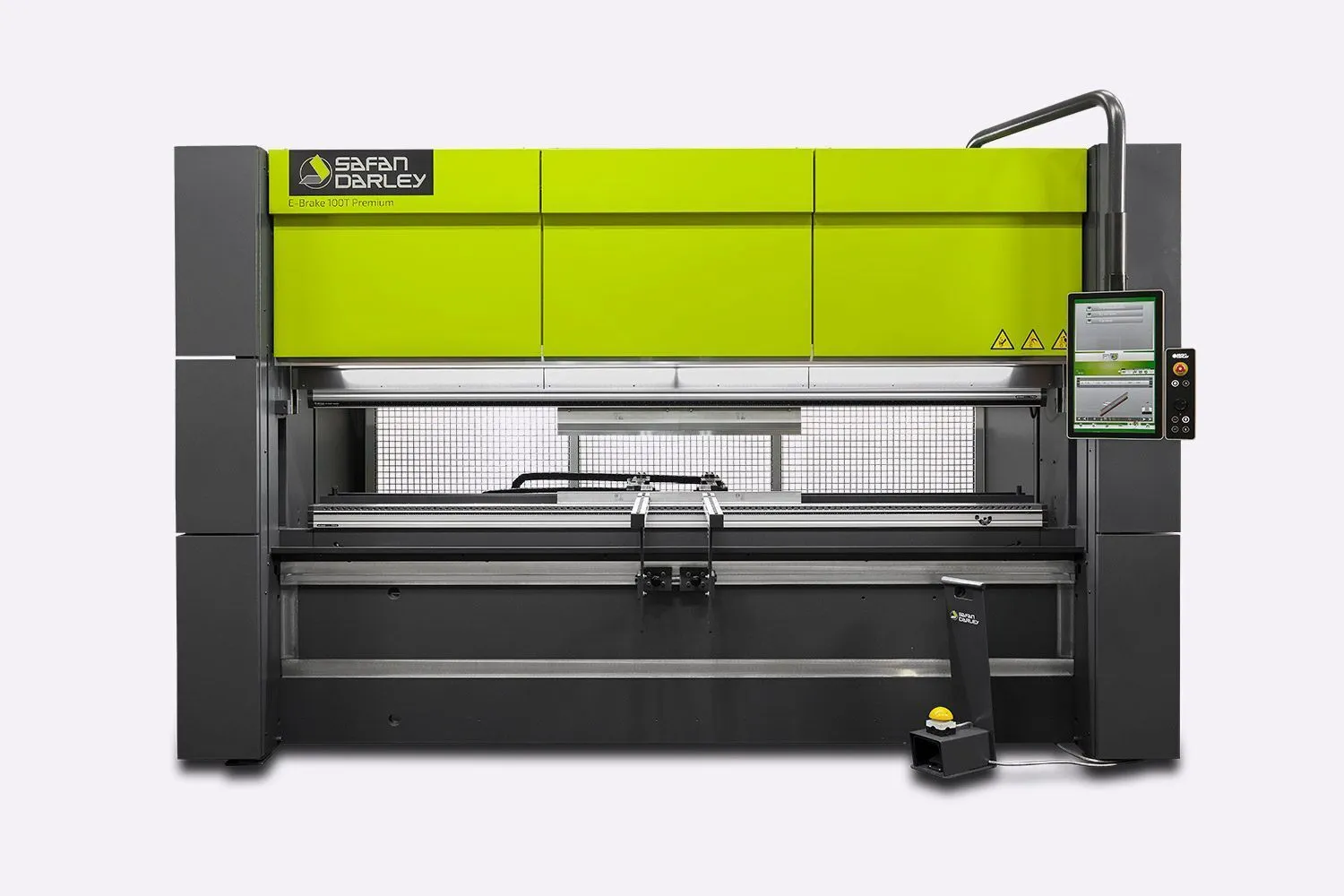

E-Brake Premium is the successor to the current E-Brake up to 143T. One key feature is the new design, which significantly improves the ergonomics. The controls are also given a new design and are Industry 4.0-ready, which means that they communicate with external systems.
The Premium series of E-Brakes are our most popular sellers. The Premium comes in US Tons of 39T, 44T, 55T, 88T, 110T, 143T.
Key Features
Efficiency
Up to 30% shorter cycle times
Economy
Up to 50% energy saving
Reliability
Mechanical drive system with 5 year warranty
Stability
Reinforced O-frame for optimum stability
Safety
Integrated safety system and absence of hydraulic oil
Usability
The most functional and intuitive Man-Machine interface
| Tonnage | 143 T | 129.728 t |
| Type | ELE | ELE |
| Overall Length | 14.17' | 4.3 m |
| Between Housings | 14.17' | 4.3 m |
| Stroke | 12" | 304.8 mm |
| Control | CNC (EC10 press brake control) | CNC (EC10 press brake control) |
| Dimensions | 172 in x 114 in | 172 in x 114 in |
EC10 press brake control, single screen with splitscreen
1 Hold to Run operating console
CNC-controlled R-axis
CNC-controlled Y1-Y2 axis (top beam adjustable inclined +/- 0.1 inch)
CNC-controlled back gauge (X-axis) with a wide range
Manual variable adjustment of back gauge fingers width across a linear guide
Build in size of 23.22 inch (Q-dimension)
NSCL I MC Pro top tool mechanical clamping system
OB/S-3 lower tool mechanical clamping system
2 Support arms (11.81 inch)*
Programmable and integrated safety light guard*
Safety in compliance with CE*
* Standard only for CE countries
