USED KENNAMETAL KSS800ASD43N750
Overview
Description

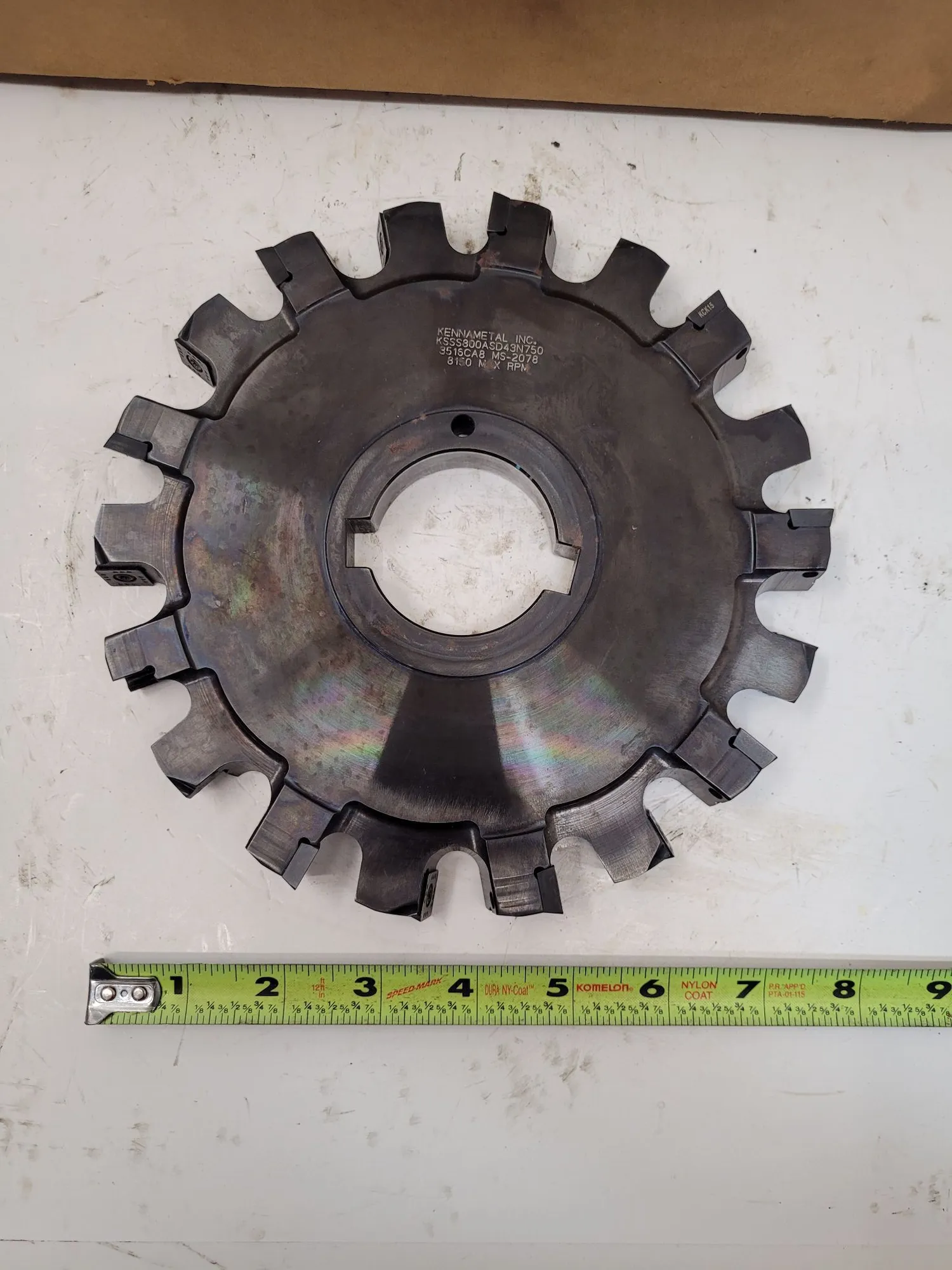

Kennametal KSS800ASD43N750 8" Slotting Milling Cutter available. With 18 teeth, this used tool offers a 2" hole diameter and supports styles SDCW, SDPT, SDCT, SDET. Maximum RPM 8150. Note: 1 insert is missing. Ideal for precision applications.
Specifications
Kennametal KSS800ASD43N750 - 8" Slotting Milling Cutter
Manufacturers Catalog Number KSSS800ASD43N750
Cutter Body Width (Decimal Inch) 0.6660
Insert Inscribed Circle (Inch) 1/2
Number Of Teeth & Inserts 18
Connection Type Arbor
Maximum Depth of Cut (Decimal Inch) 2.5420
Hole Diameter (Inch) 2
Hole Diameter (Decimal Inch) 2.0000
Cutter Diameter (Decimal Inch) 8.0000
Cutter Diameter (Inch) 8
Shank Diameter (Inch) 2
Shank Diameter (Decimal Inch) 2.0000
Cutting Direction Neutral
Insert Holding Method Screw
Compatible Insert Style SDCW; SDPT; SDCT; SDET
Rake Neutral
Hub Diameter (Decimal Inch) 2.8800
Maximum RPM 8150
1 Insert is missing.
