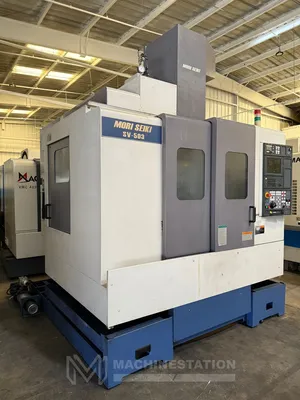

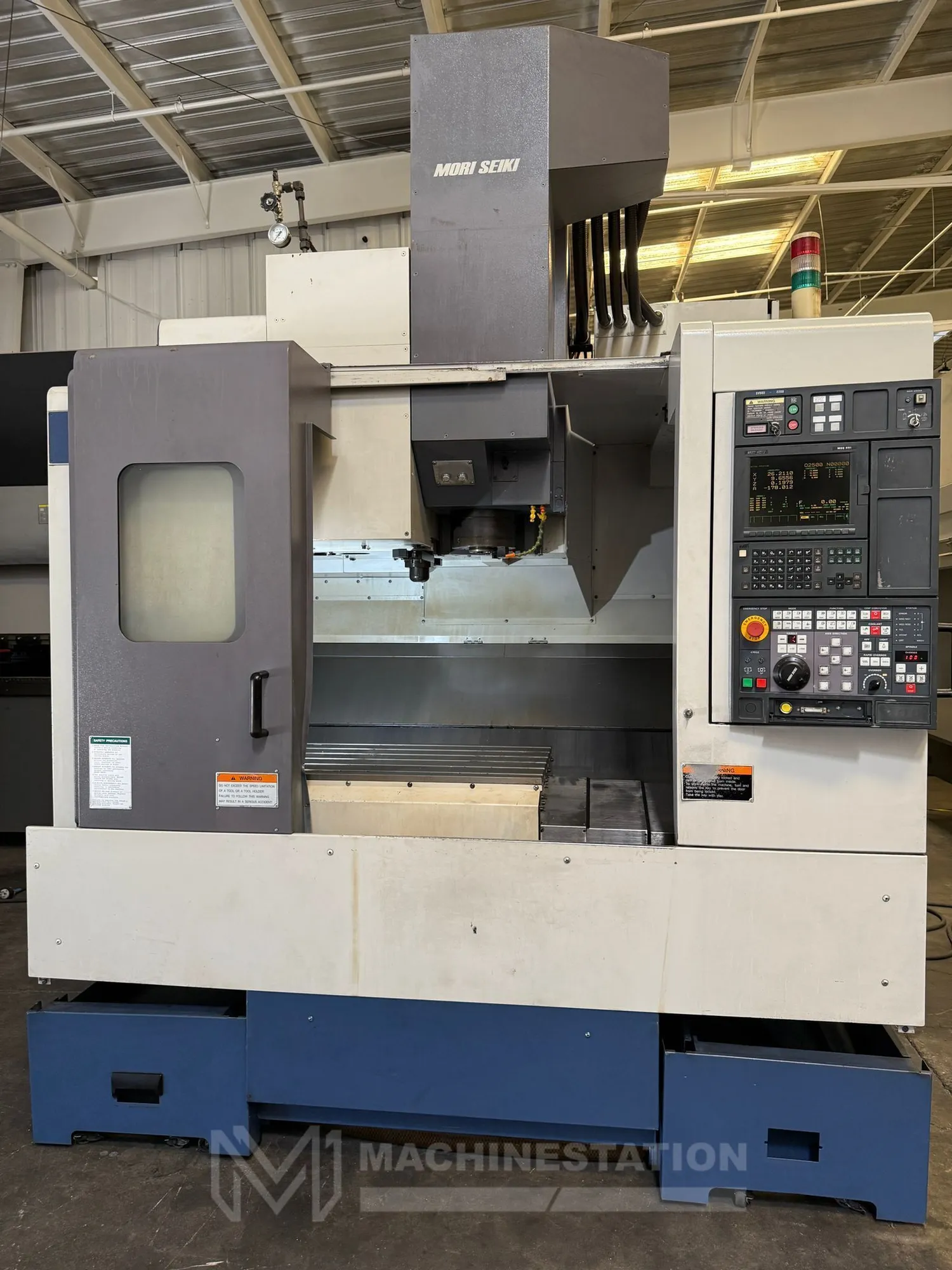

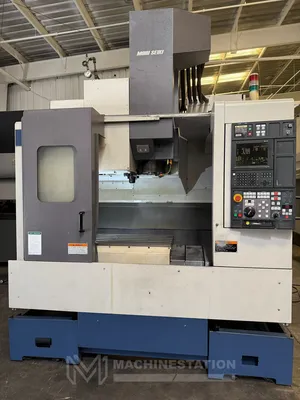

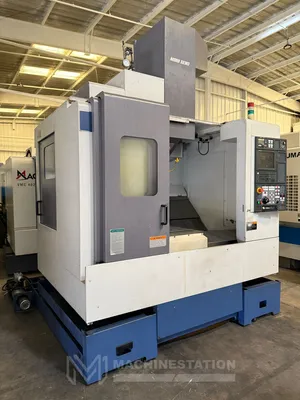

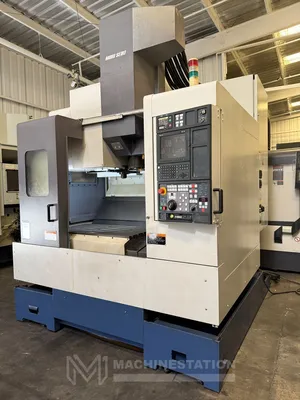

USED 2000 MORI SEIKI SV-503/40
Overview
Specifications
| X Axis | 31.5" | 800.1 mm |
|---|---|---|
| Y Axis | 20.1" | 510.54 mm |
| Z Axis | 20.1" | 510.54 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 23.62" | 599.95 mm |
| Table-L | 43.31" | 1,100.1 mm |
| # Axis | 4 | 4 |
| Control | CNC (MSG 501 ( Fanuc )) | CNC (MSG 501 ( Fanuc )) |
| Dimensions | 180″ L X 102″ W X 120″ High | 180″ L X 102″ W X 120″ High |
| Weight | 15,430 lbs | 15,430 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

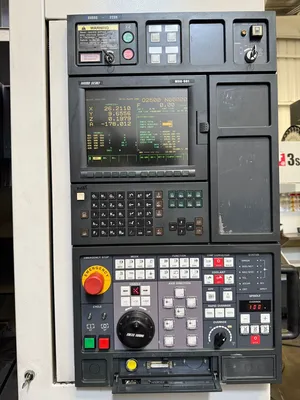

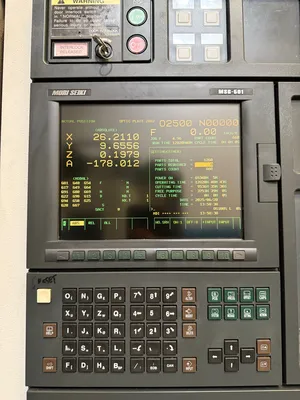

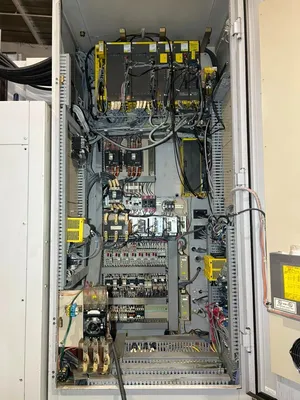

MSG 501 ( Fanuc ) CNC Control
9,536 Hours Cutting Time
Box Way Construction
Powerful 30 HP high torque Spindle Motor
Spindle Orientation

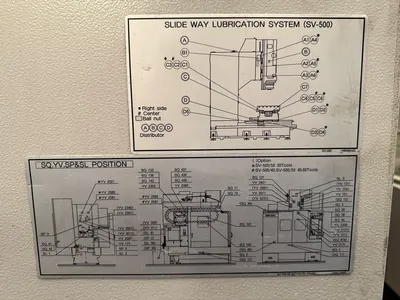

Automatic Lubrication System
Coolant System
Travels:
X-Axis: 31.5″
Y-Axis: 20.1″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

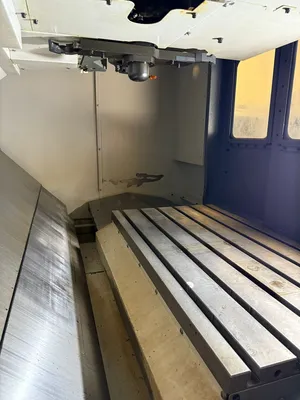

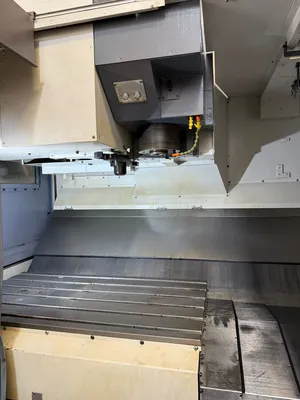

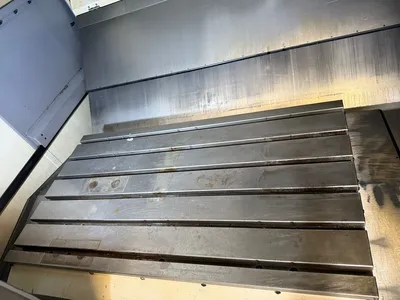

Table:
Length: 43.31″
Width: 23.62″
Max Weight on Table: 2200 lbs

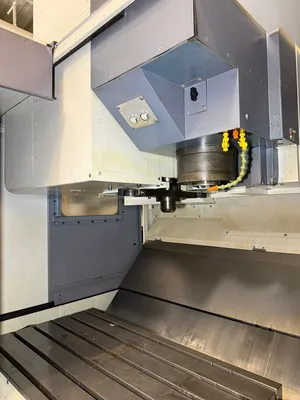

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Feed Rate:
Rapid X Y & Z: 1260 inch/PM
Cutting Feed rate: 630 inch/PM
Automatic Tool Changer:
Capacity: 40 Tools
Max Tool Weight: 33 lbs
Max Tool Length: 11.8″
Max Tool Dia: 4.9″
General:
Air Required: 80 psi 4 scfm

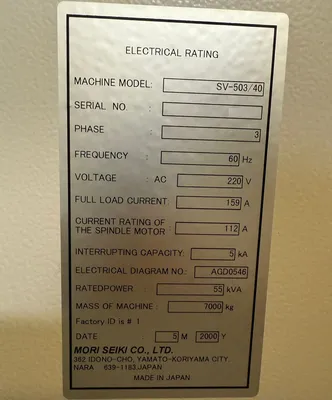

Power: 205-220v / 66FLA / 3-Phase / 55 kva
Overall Dimensions: 180″ L X 102″ W X 120″ High
Weight: 15,430 lbs
Equipped With
4th Axis Ready
CAT-40 Taper 12,000 RPM Spindle
Through Spindle Coolant
40 Station Automatic Tool Changer
Rigid Tapping
Spindle Chiller Unit
