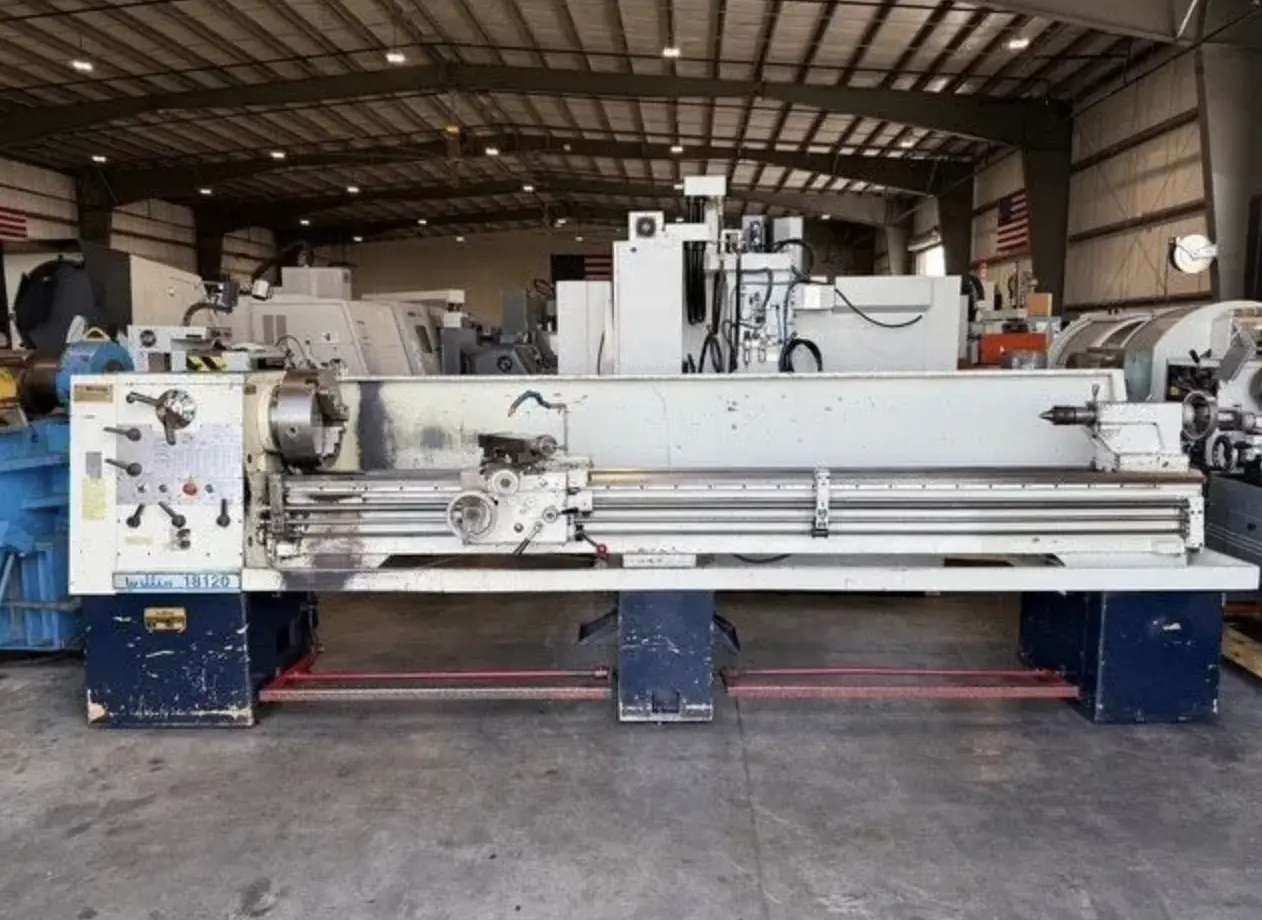

Engine Lathe for sale, featuring an 18" swing over bed, 120" centers, and a versatile D1-8 spindle nose. Comes with a 16" BISON 3 Jaw Chuck and 10 H.P. motor. Wired for 230V, 3-phase, 60 HZ.
| Centers | 120" | 3,048 mm |
| Spindle Bore | 3" | 76.2 mm |
| RPM | 1,700 RPM | 1,700 RPM |
Swing over bed- 18”
Swing in gap- 28”
Swing over cross slide- 11-1/2”
Distance between centers- 120”cc
Spindle nose- D1-8
Spindle bore- 3-1/8”
Spindle speeds- (16) 22 – 1,700 R.P.M.
Bed width- 13”
Cross slide travel- 10-1/2”
Compound travel- 5-1/4”
Tailstock quill travel- 7”
Tailstock taper- #5 Morse
Inch threads- (45) 2 – 72 T.P.I.
Metric threads- (39) .04 – 14mm
Longitudinal feeds- .0015 - .04 I.P.R.
Cross feeds- .00075 - .02 I.P.R.
16” BISON 3 Jaw Chuck
10 H.P. Spindle motor
Machine is wired for 230 volt / 3 phase / 60 H.Z.
