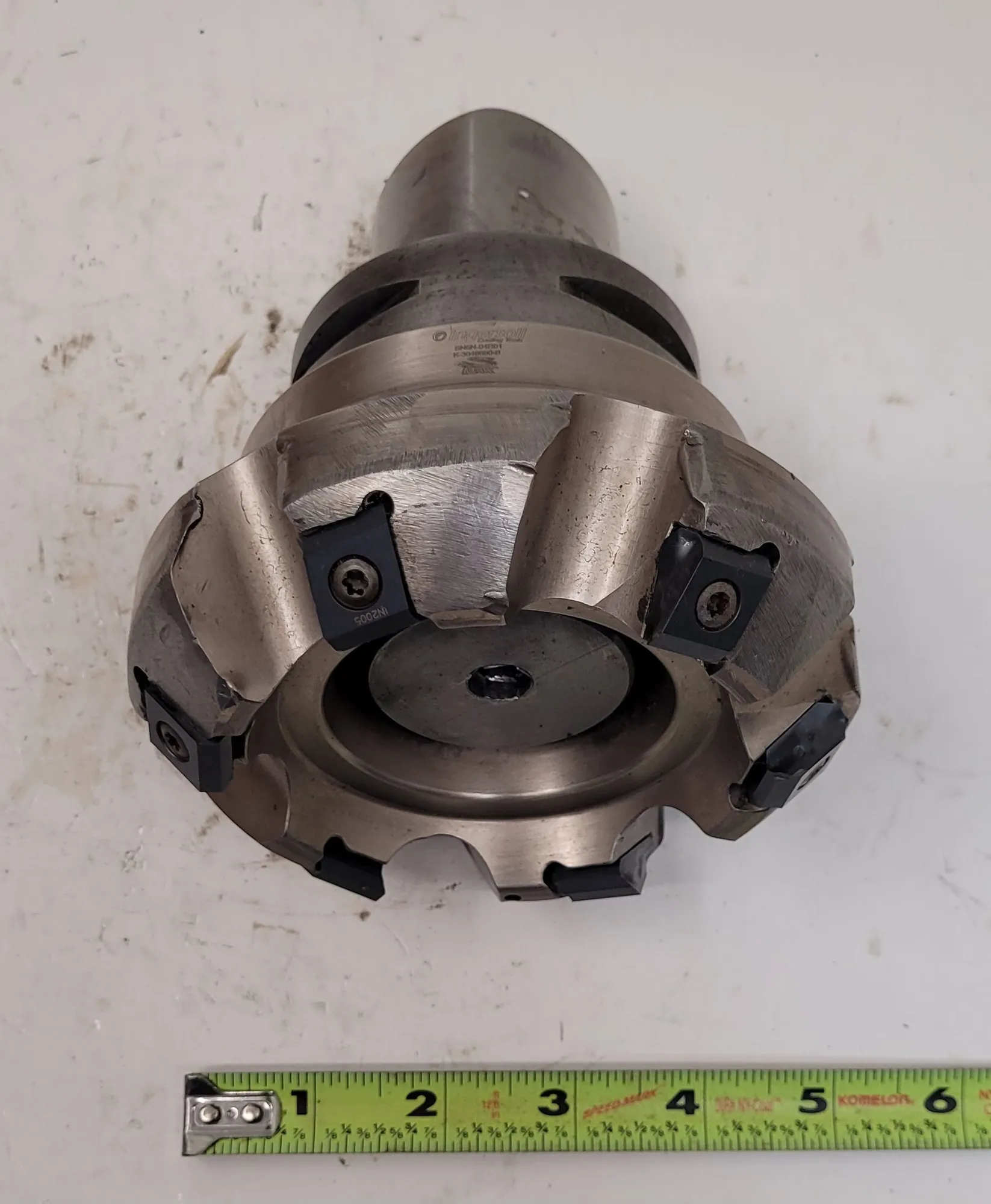

USED INGERSOLL CUTTING TOOLS SN6N-04R01

Used Ingersoll SN6N-04R01 Face Mill with Capto C8 Tool Holder, offering a 4.69" cutting diameter, right-hand cutting direction, and six inserts. Perfect for chamfering, facing, and slanted shoulder work. Overall length 5.5".

Ingersoll SN6N-04R01 Face Mill w/ 6 Inserts

This Item comes with a Capto C8 C8-A391.05-38 030
FACEMILL ADAPTOR Tool Holder attached.

Specs for mill cutter:
USED
Cutting Diameter 4.69″
Arbor Style A
Cutting Diameter 4″
Cutting Diameter Maximum 4.69″
Body Material Steel
Cutting Item Count 6
Cutting Direction (HAND) Right Hand
Depth of Cut Maximum 0.35″
Application | Chamfering | Facing | Slanted Shoulder & Chamfer |
Connection Diameter Machine Side ‎1-1/2″
Overall Length (OAL) ‎2-3/8″
Tool Cutting Edge Angle 45 Degrees
Hub Diameter 2.48″

Overall Length with tool holder: 5.5"
