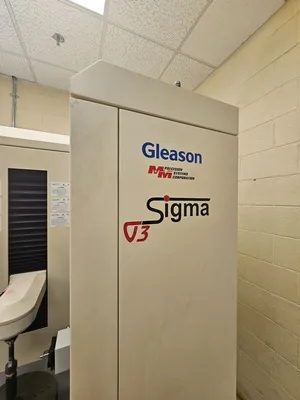

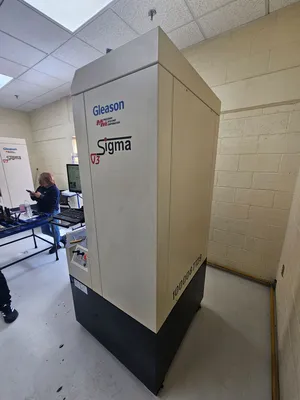

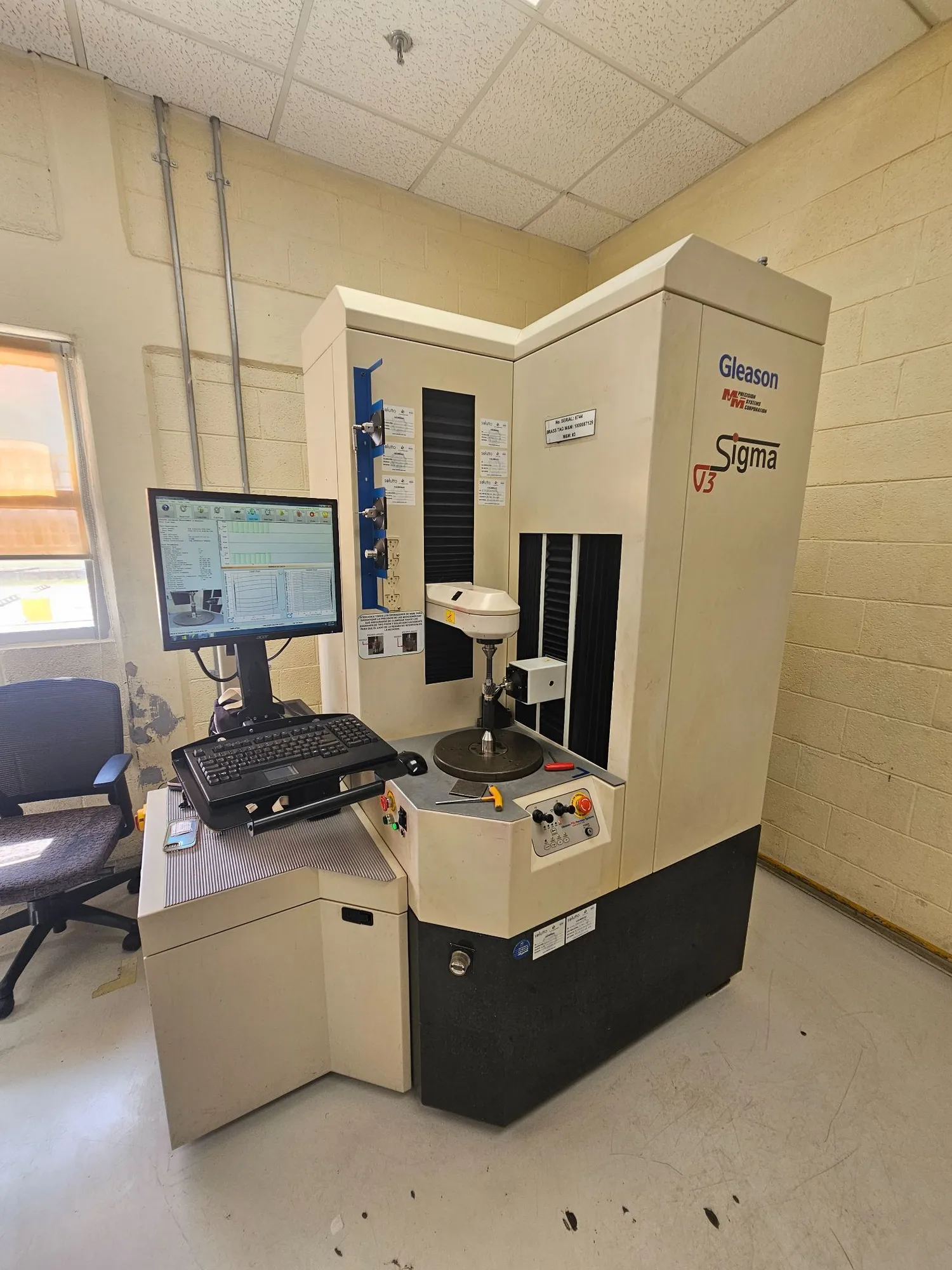

USED 2008 GLEASON SIGMA V3
Overview

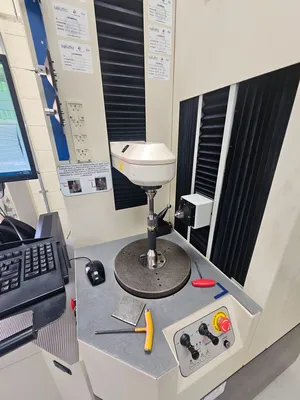

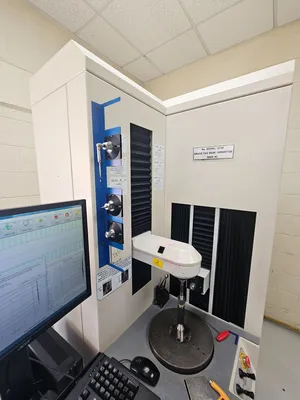

The GLEASON SIGMA V3 (also known as Sigma 3) is a precision CNC gear testing machine that uses a granite base, 3 linear motor-driven axes (X, Y, Z), and a rotary C-axis to inspect gears. It is designed for production and laboratory use. It can handle gears up to 12" in diameter. The machine features a 3D scanning probe, often a Renishaw SP80H, which provides high-speed and high-accuracy measurements.
Specs
Specifications:
Maximum Gear Diameter: 14"
A-axis, 360 Degrees of Travel, Table Diameter: 11.8"
X-axis, Right to Left Travel of the Measuring Slide: 7.25"
Y-axis, Front to Back Travel of the Measuring Slide: 19.75"
Z-axis, Up and Down Travel of the Measuring Slide: 18.5"
Maximum Length Part Between Centers: 26.5"
Maximum Weight of Part to be Checked: 400 lb

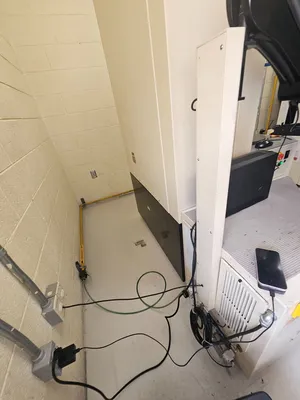

Power Requirements: 110 VAC/220 VAC, 10/5 Amps
Dimensions: 70" X 43" X 84"
Weight 6,500 kg
Equipped With
Calibrated 4/8/2026
Probe Rack
Probes
Gage Ball Base
Tailstock W/Center

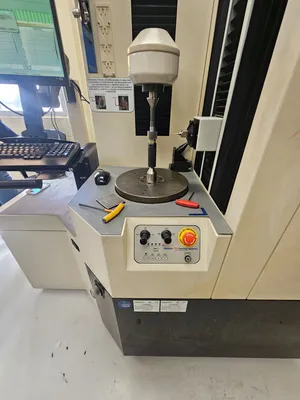

Rotary Table W/Center

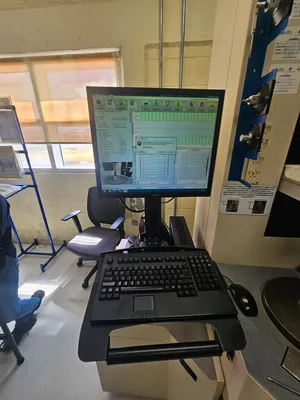

Computer
Display
Printer
