USED SPX G185Q-4.7P

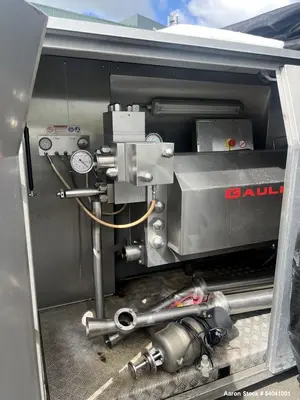

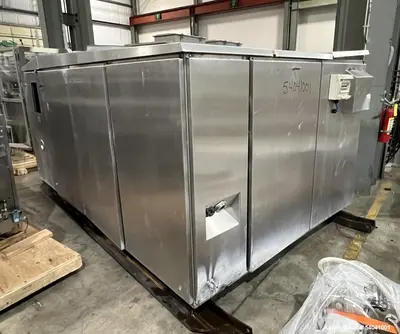

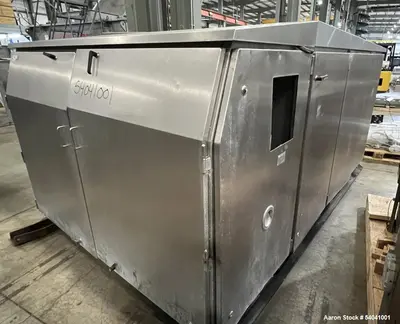

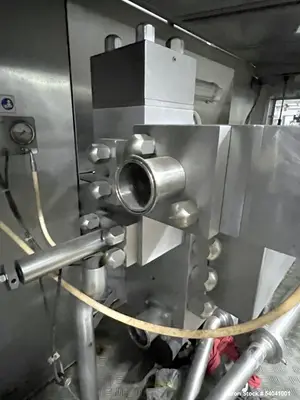

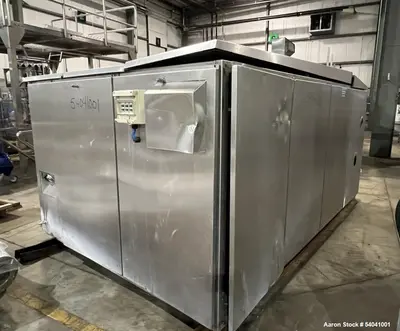

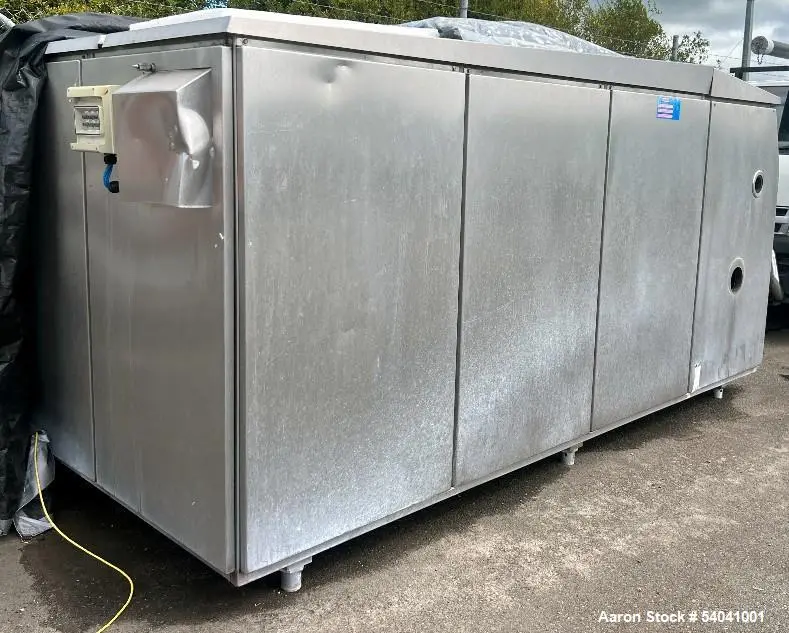

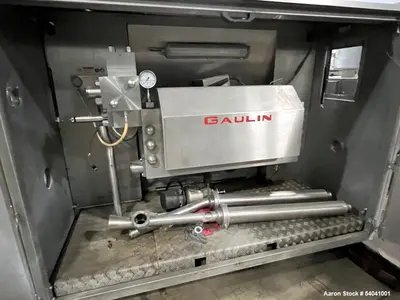

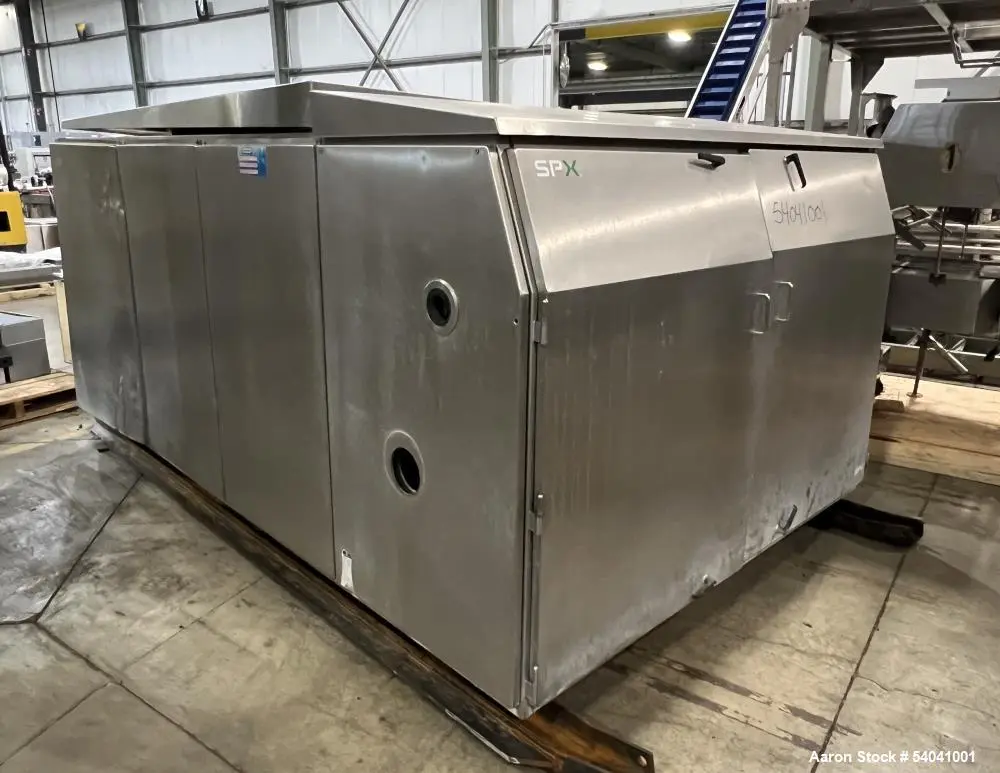

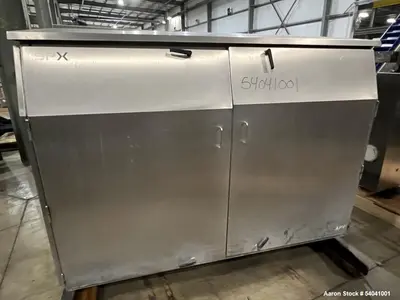

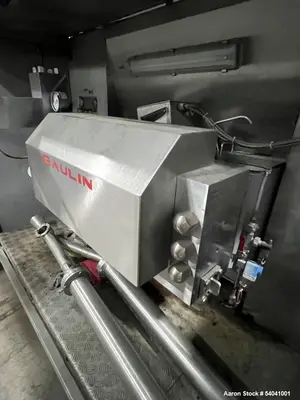

Used SPX APV Gaulin UHT Homogenizer, Model G185Q-4.7P, Stainless Steel. Rated capacity 18,000 L/H (4,755 GHP). Intake pressure: 3-10 bar (43 - 145 psi). Max operating pressure 12 bar. Working temperature 5 - 85 degrees C., max temperature 160 degrees C. (45min/24 hours). Outlet pressure 25 bar (363 psi). Driven by a 200 Kw (268hp) 50hz 415v 1490 rpm motor. Serial# J2-13.462. Approximately 833 hours. Includes Schneider VFD Drive. Ideal for use in the food, beverage, cosmetic, etc. Industries. Spare parts available at extra cost. Our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.

Used Equipment Facts About This Machine
🏭 Manufacturer Information

Manufacturer: SPX Flow / APV Gaulin

Model: G185Q-4.7P

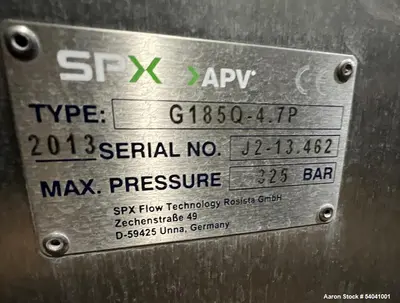

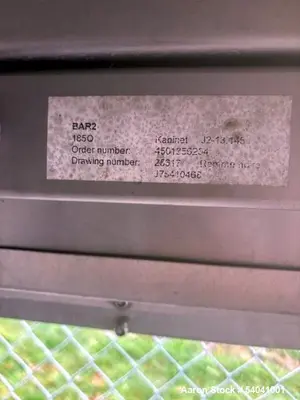

Serial Number: J2-13.462

Condition: Used (Excellent, only ~833 operating hours)

Construction: All stainless steel product contact components

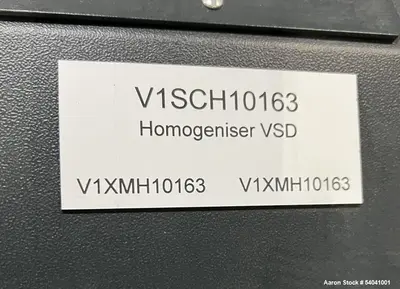

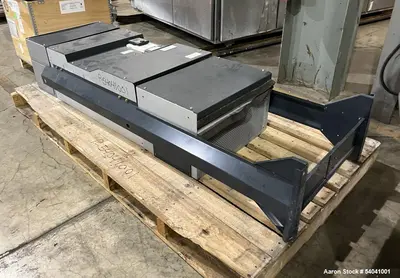

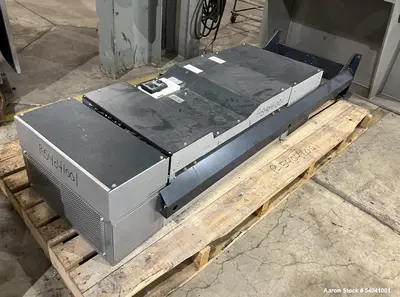

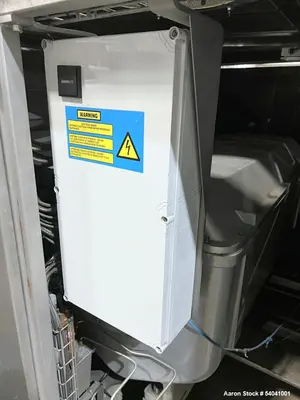

Drive System: Schneider Variable Frequency Drive (VFD) included

Country of Manufacture: USA / Denmark (SPX APV Global)

⚙️ Product Description

The SPX APV Gaulin Model G185Q-4.7P UHT Homogenizer is a high-capacity, stainless steel, ultra-high temperature (UHT) homogenization system engineered for continuous processing of liquids in food, beverage, dairy, and cosmetic industries.
With a rated throughput of 18,000 liters per hour (4,755 gallons per hour), this homogenizer delivers uniform particle size reduction and product stability through precise, high-pressure processing.

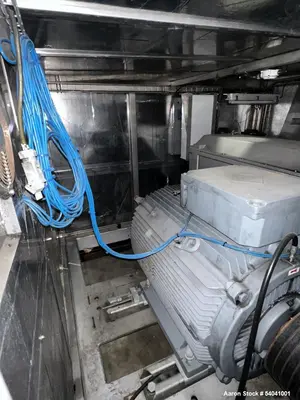

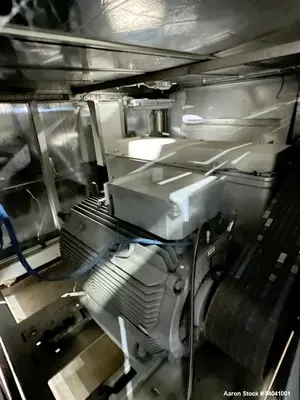

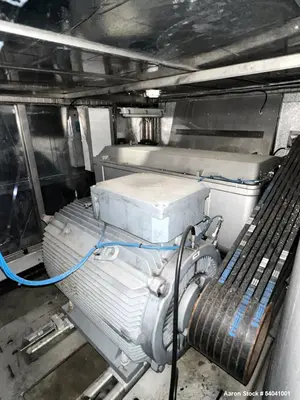

Equipped with a 200 kW (268 HP), 415V, 50Hz motor (1490 RPM) and a Schneider variable frequency drive, the system provides reliable, adjustable operation for a wide range of viscosities and formulations.
Operating parameters include intake pressure of 3–10 bar, outlet pressure of 25 bar, and maximum operating temperature of 160°C (for short intervals), making it suitable for UHT, aseptic, and continuous liquid food processing.

📏 Specifications

Model: G185Q-4.7P

Rated Capacity: 18,000 L/H (≈ 4,755 GPH)

Intake Pressure: 3–10 bar (43–145 psi)

Outlet Pressure: 25 bar (363 psi)

Max Operating Pressure: 12 bar

Working Temperature: 5–85°C

Max Temperature (short duration): 160°C (for 45 min/24 hrs)

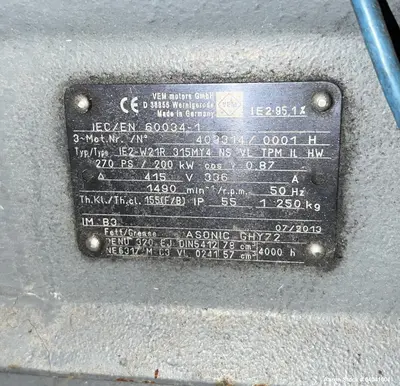

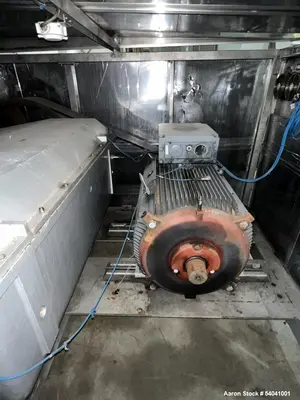

Drive Motor: 200 kW (268 HP), 415V, 50Hz, 1490 RPM

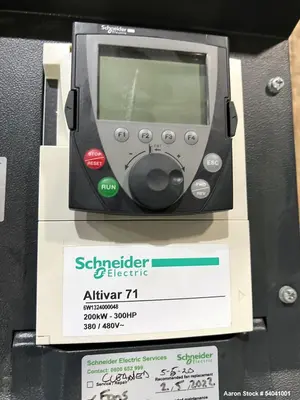

Drive Control: Schneider Variable Frequency Drive (VFD)

Material of Construction: Stainless Steel (product contact areas)

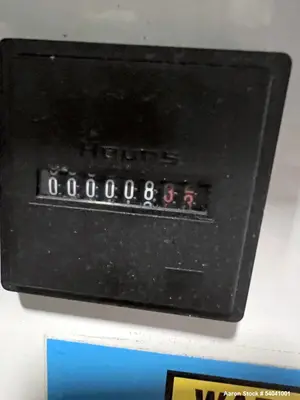

Operating Hours: Approximately 833 hours (low-use)

Condition: Used, excellent, food-grade ready

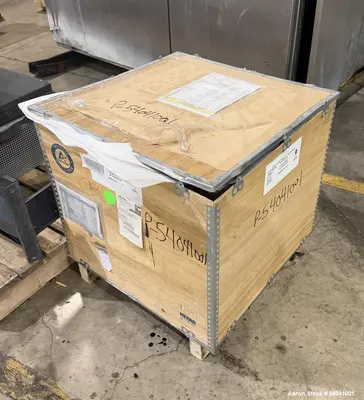

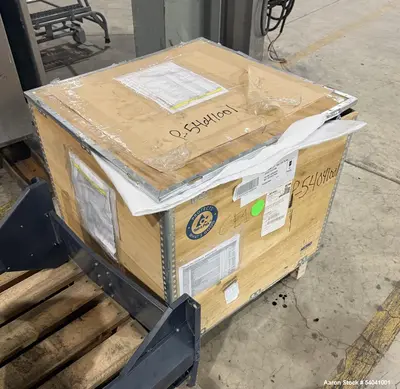

Spare Parts: Available at extra cost

Logistics Support: Freight and customs assistance available

🧩 Applications

UHT (Ultra-High Temperature) processing

Dairy product homogenization (milk, cream, yogurt, etc.)

Juice, smoothie, and beverage production

Flavor and emulsified concentrate blending

Nutraceutical and protein drink processing

Cosmetic cream and lotion homogenization

Sauce, puree, and soup preparation

Chemical and pharmaceutical emulsions

Plant-based milk and protein beverage processing

Laboratory and pilot plant scale-up production

💧 What Might This Be Used For

The SPX APV Gaulin UHT Homogenizer is designed for high-pressure mixing and particle size reduction to achieve emulsions, dispersions, and product stability. It is widely used in UHT food and beverage production, ensuring consistent texture, extended shelf life, and uniform product quality in milk, cream, juice, and cosmetic emulsions.

🧴 Products That Could Use This Machine

Milk and dairy beverages

Yogurt and cream

Fruit juices and smoothies

Sauces and soups

Nutritional and protein drinks

Plant-based milk (soy, oat, almond)

Cosmetic creams and emulsions

Pharmaceutical suspensions

Flavored syrups and concentrates

Food pastes and condiments
