USED PAUL O ABBE 12

Manufacturer Information:

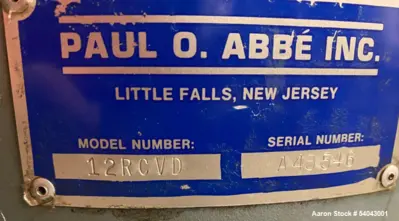

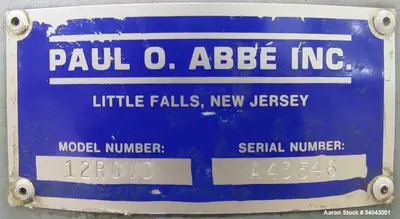

Dryer Manufacturer: Paul O. Abbe

Dryer Model: 12" Rota-Cone Vacuum Dryer

Dryer Serial #: A45546

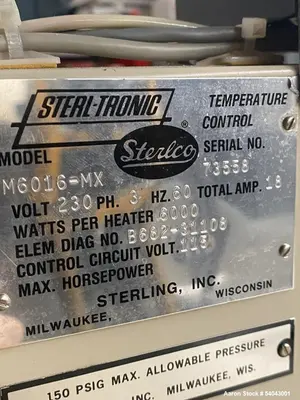

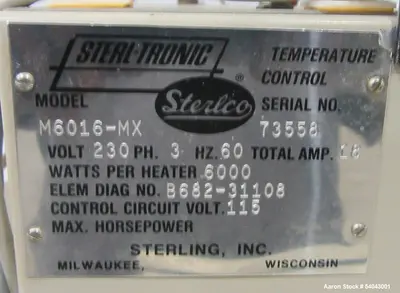

Heater Manufacturer: Sterlco

Heater Model: M6016-MX

Heater Serial #: 73558

Year Built: 1992

Condition: Used

Vacuum Pump: Not included (available at additional cost)

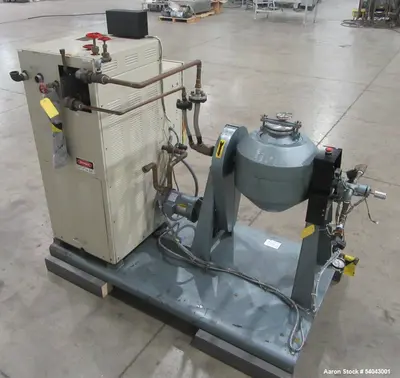

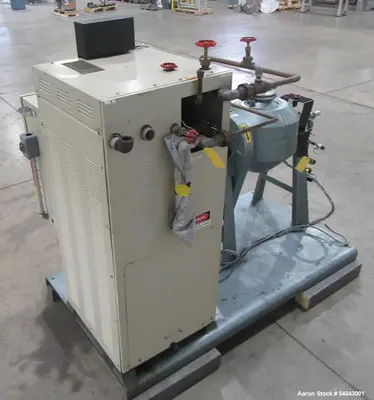

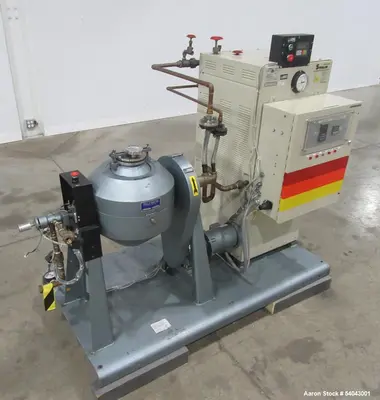

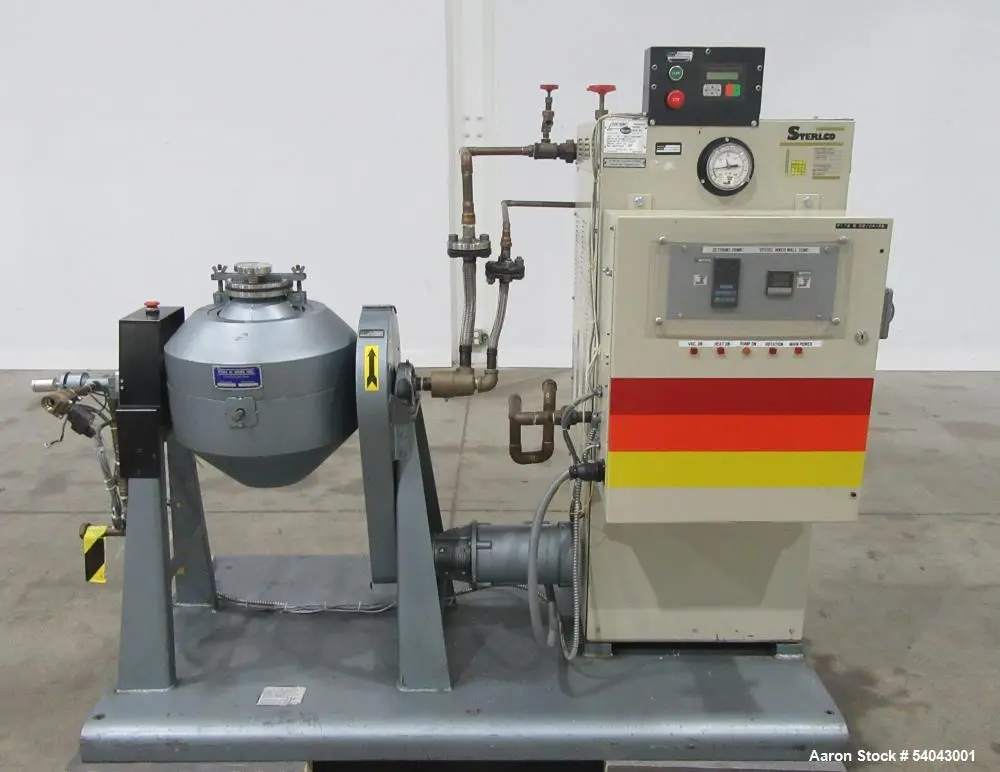

Mounting: Skid-mounted with packaged heating system

Description:

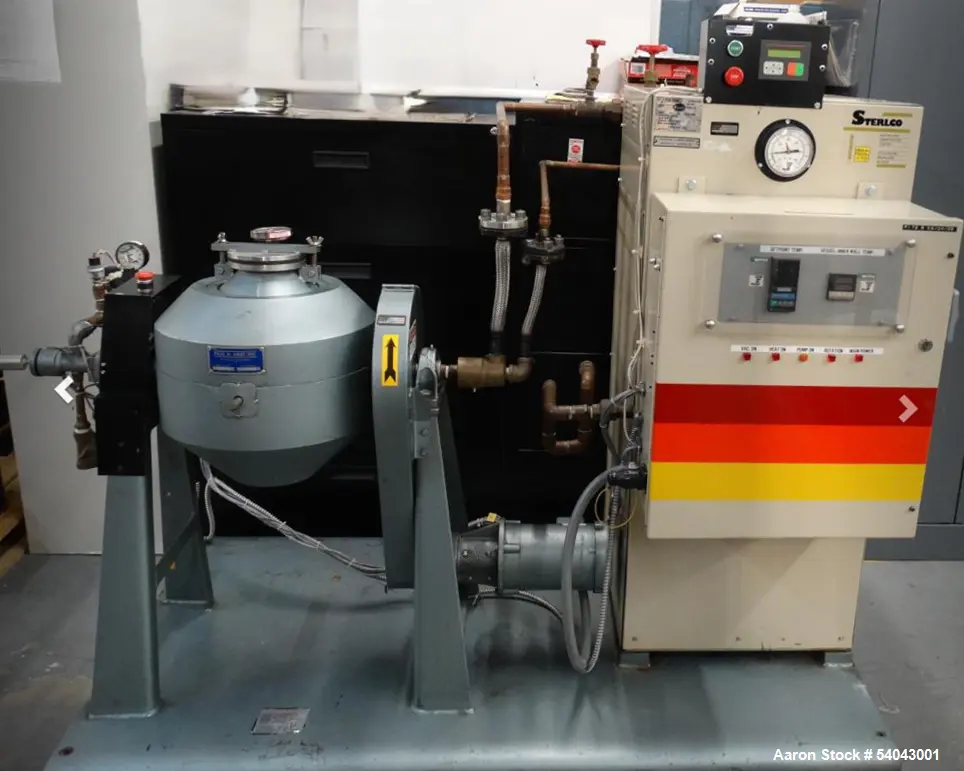

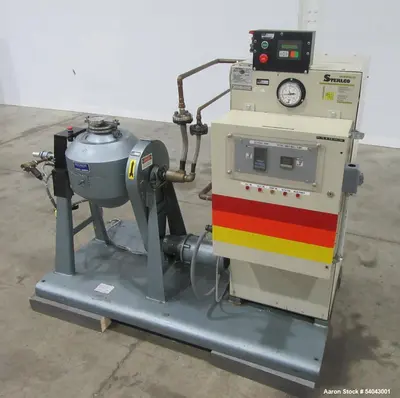

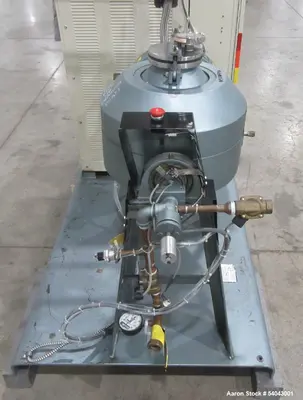

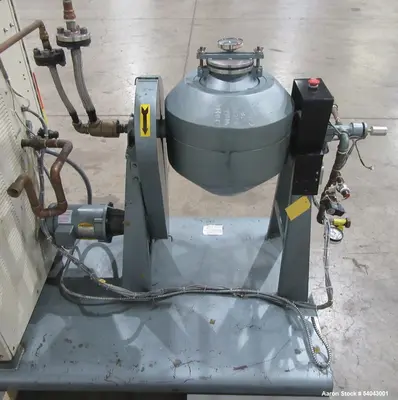

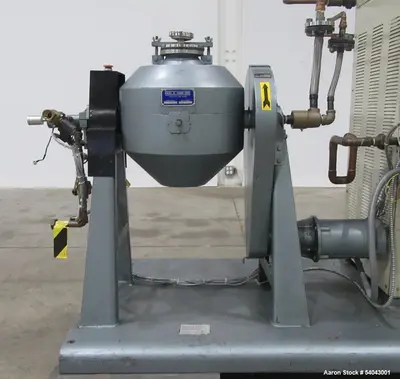

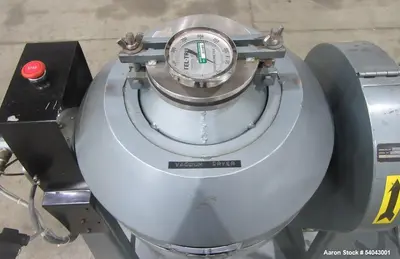

This used Paul O. Abbe 12" Rota-Cone Vacuum Dryer is a compact, high-efficiency drying system designed for sensitive materials requiring gentle tumbling under vacuum. The vessel is constructed from T316 stainless steel with a carbon steel jacket, and features a 0.5 cubic foot volume with an interior 180 grit (4$) polish for sanitary or precision drying applications. Operating at 250°F (121°C) with a maximum vacuum of 14.7 psi, the unit tumbles at 9 RPM to ensure uniform drying. The jacket is rated for 14.7 psi, and the unit includes a Sterlco Sterl-Tronic Heater (6000 watts, 150 psig) for consistent temperature control. Vacuum pump not included, but available separately. Ideal for pharmaceutical, chemical, and R&D scale drying.

Specifications:

Dryer Type: Rota-Cone Vacuum Dryer

Vessel Volume: 0.5 cu ft

Material of Construction: T316 Stainless Steel

Jacket Material: Carbon Steel

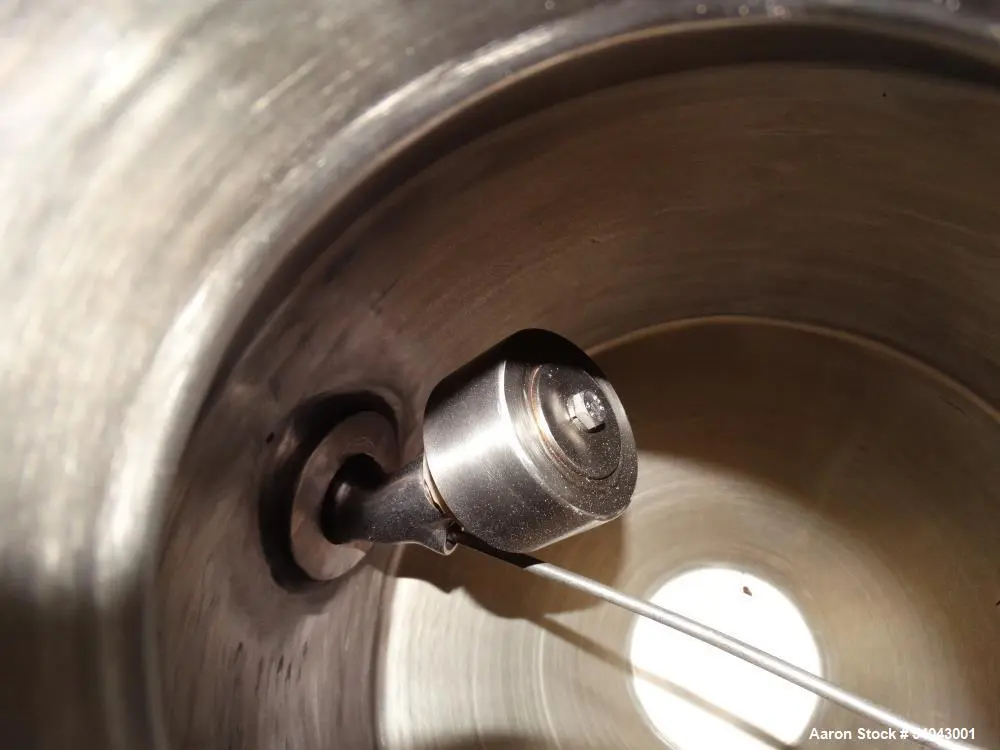

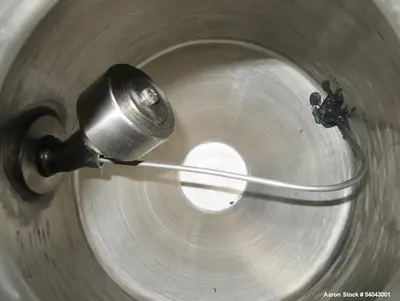

Interior Finish: 4$ Polish (180 Grit)

Operating Temperature: Up to 250°F (121°C)

Vessel Speed: 9 RPM

Vacuum Rating: Full Vacuum to 14.7 psi

Jacket Pressure Rating: Max 14.7 psi

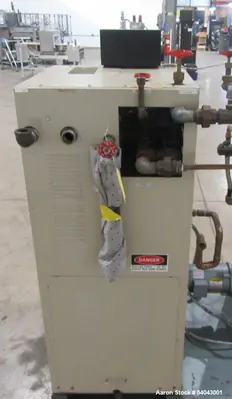

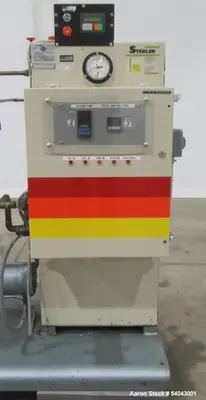

Heater:

Brand: Sterlco Sterl-Tronic

Model: M6016-MX

Power: 6000 Watts

Pressure Rating: 150 psig

Mounting: Skid-mounted

Build Year: 1992

Applications:

Pharmaceutical Powder Drying

Chemical Compound Finishing

Nutraceutical Ingredient Drying

Cosmetic Powder and Paste Dehydration

R&D and Pilot-Scale Batch Processing

Laboratory Drying of Sensitive Materials

Polymer and Resin Post-Processing

Drying of Metal Salts or Oxides

Biotech Material Dehydration

Small-Scale Vacuum Thermal Processing

What Might This Be Used For:

Drying heat-sensitive materials under low-pressure environments

Removing solvents from fine chemical or pharma intermediates

Producing free-flowing powders for formulation

Tumbling fragile granules or crystals without degradation

Small-batch product development in regulated environments

Precision drying of specialty polymers or lab-scale formulations

Compact pilot operations in cleanroom or R&D settings

Post-reaction drying in chemical synthesis

Moisture removal from cosmetic or nutraceutical ingredients

Testing vacuum drying protocols before scale-up
