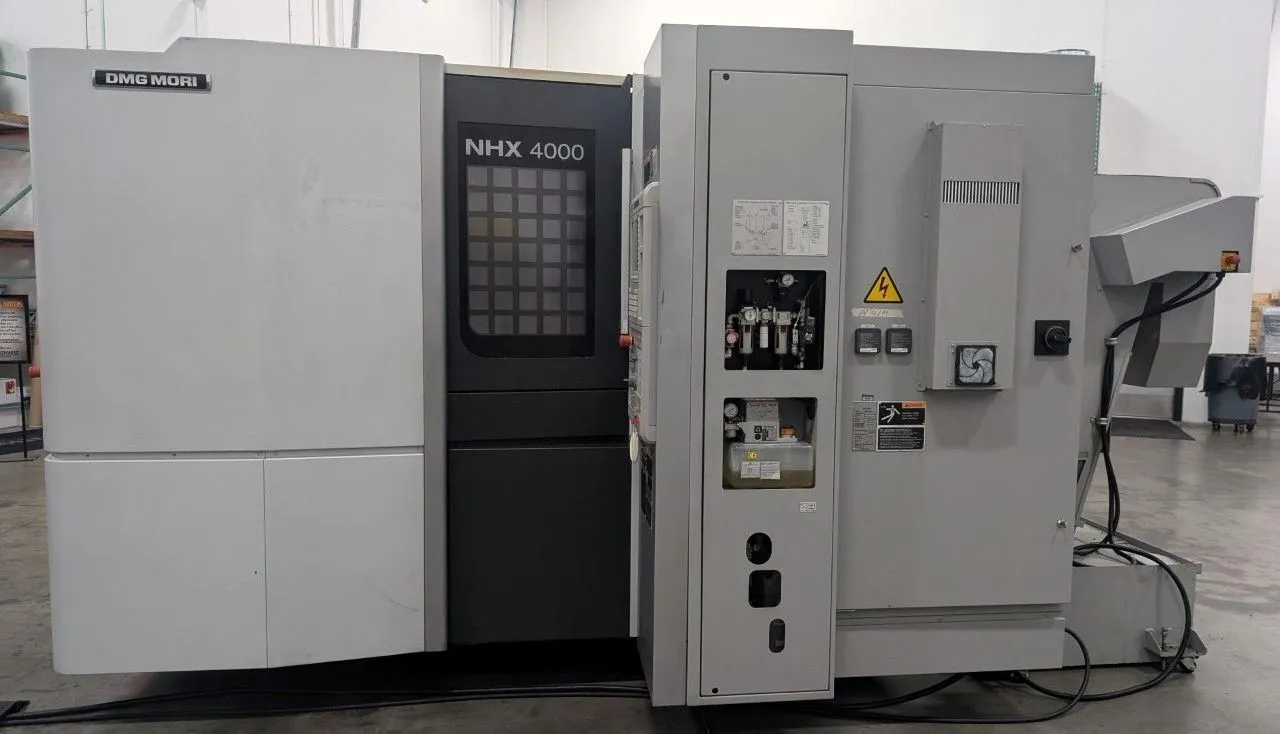

DMG MORI NHX-4000, New in 2014. Horizontal Machining Center. Chip Conveyor. 60 Station ATC. 12,000 RPM Spindle Speed. Chip Blaster unit. Thru Spindle Coolant
| X | 22" | 558.8 mm |
| Y | 22" | 558.8 mm |
| Z | 26" | 660.4 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT-40 | CAT-40 |
| Pallet-W | 15.7" | 398.78 mm |
| Pallet-L | 15.7" | 398.78 mm |
| # Axis | 3 | 3 |
TRAVELS:
- X-AXIS: 22"
- Y-AXIS: 22"
- Z-AXIS: 26"
PALLET SIZE: 15.7" x 15.7"
MAX. WORKPIECE DIAMETER: 24.8"
MAX. WORKPIECE HEIGHT: 35.4"
PALLET LOAD CAPACITY: 881.8 LBS
PALLET STATIONS: 2
RAPID TRAVERSE RATE: 2,362 IPM
SPINDLE:
- TAPER: CT40
- SPEED: 12,000 RPM
- DRIVE MOTOR: 40 HP
Chip Conveyor
60 Station ATC
12,000 RPM Spindle Speed
Chip Blaster unit
Thru Spindle Coolant
