| X-Axis | 206.69" | 5,249.9 mm |
| Y-Axis | 114.17" | 2,899.9 mm |
| Z-Axis | 23.62" | 599.95 mm |
| Power | 33 hp | 24.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Taper | ISO 50 | ISO 50 |
| Table-W | 98.42" | 2,499.9 mm |
| Table-L | 196.85" | 5,000 mm |
SPECIFICATIONS:
X-Axis Table Travel: 206.69"
Y-Axis Head Travel: 114.17"
Z-Axis Quill Travel: 23.62"
W-Axis Vertical Rail Travel: 55.11"
Width Between Columns: 112.20"
Distance Spindle to Table: 11.81" to 90.55"

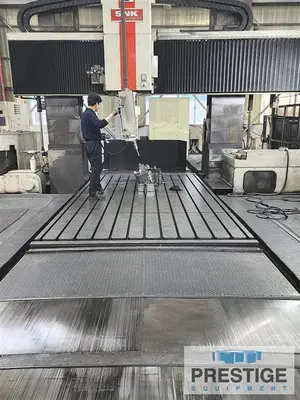

Table Size: 196.85" x 98.42"
Table Load Capacity: 44,000 Lbs.
Spindle Speeds: 40-6000 RPM
Spindle Taper: ISO 50 Taper
Spindle Drive Motor: 33 HP / 25 HP
Rapid Feed X & Y Axes: 787.40 IPM
Cutting Feed Rate: 393.70 IPM
Equipped With:

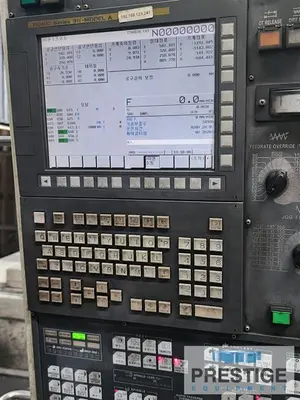

Fanuc 31iA CNC Control
40-Position Automatic Tool Changer

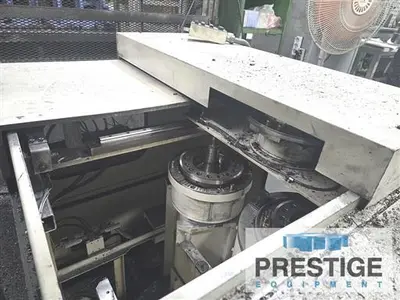

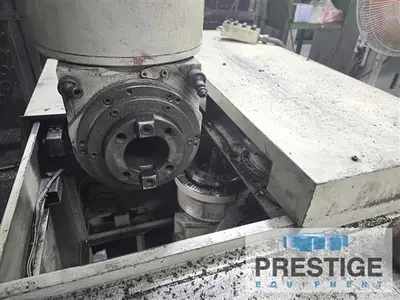

3-Station Automatic Attachment Changer

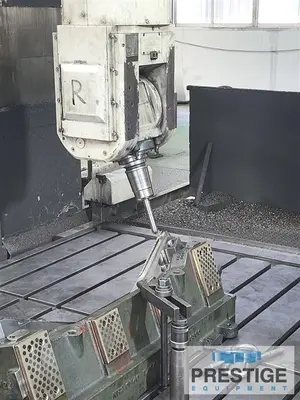

5-Axis Head
90 Degree Head
Scales on X,Y & Z Axis
Laser Length Measurement
(3)Chip Conveyors
HOURS:

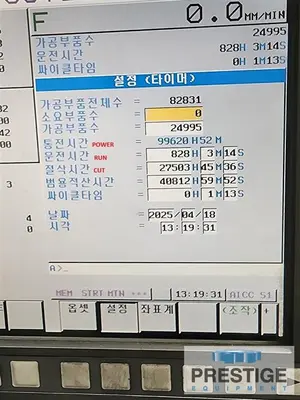

27,503 Cutting Hours
Features:
Fanuc 31iA CNC Control
40-Position Automatic Tool Changer
3-Station Automatic Attachment Changer
5-Axis Head
90 Degree Head
Scales on X,Y & Z Axis
Laser Length Measurement
(3)Chip Conveyors
