USED CERATIZIT A270.500.R.07-12-B150-200-EF

Ceratizit A270.500.R.07-12-B150-200-EF MaxiMill Shell Mill. Used tool in good condition with a 5" cutting diameter, 0.236" max depth of cut, and 7 face-mounted inserts. Ideal for precise machining tasks with a max RPM of 4300.

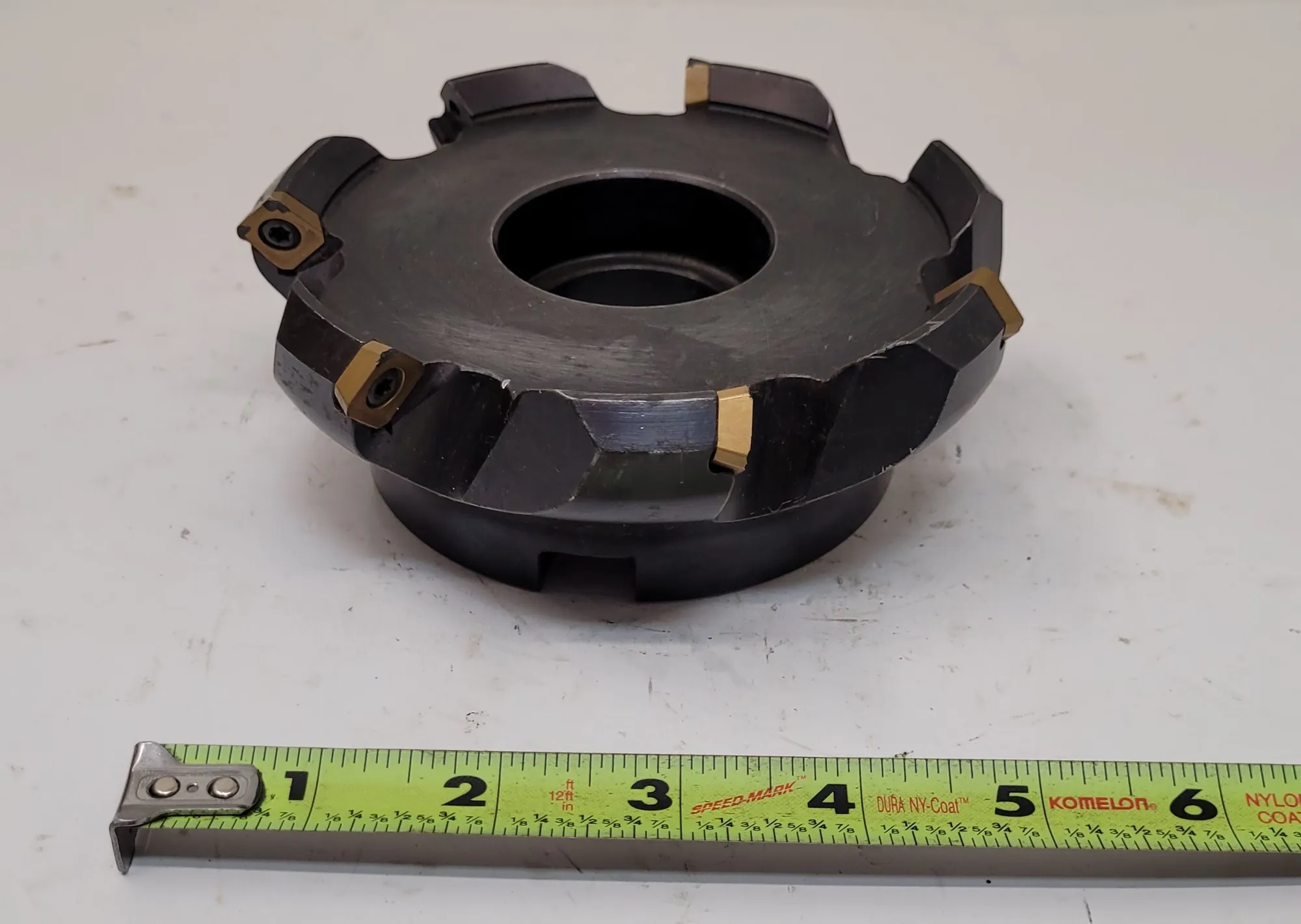

Ceratizit A270.500.R.07-12-B150-200-EF MaxiMill Shell Mill

USED
Cutting diameter 5.0000" 127.000 mm
Depth of cut maximum 0.2360" 5.994 mm
Face mounted insert count 7
Overall length / OAL 3.7500" 95.250 mm
Hub diameter 3.7500" 95.250 mm
Mounting spigot diameter 1.5000" 38.100 mm
Rotational speed maximum / RPMX 4300 1/min.
Insert SD.. 1204..
torque moment 5 Nm
Tool cutting edge angle / KAPR 45 °
