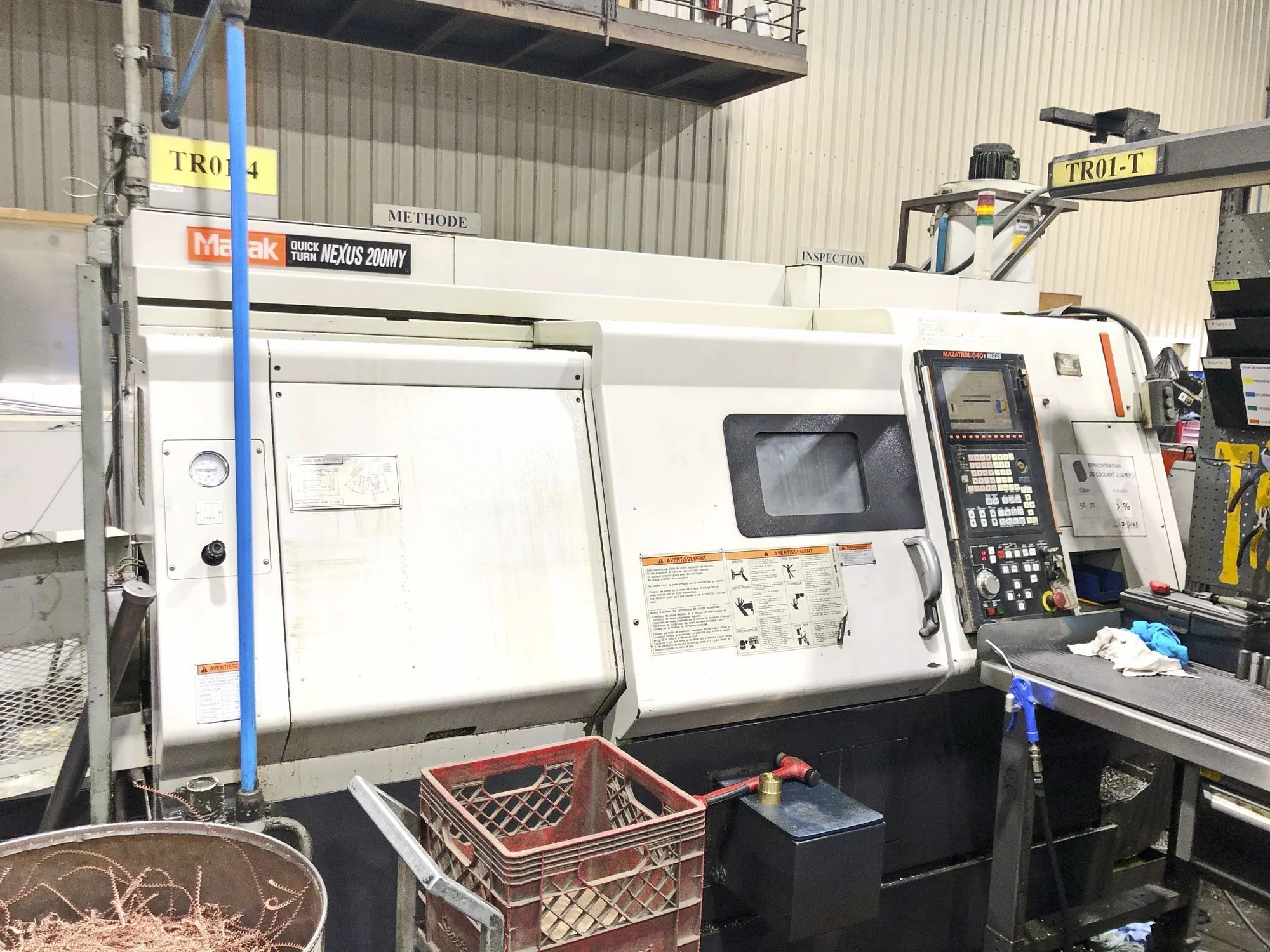

2005 Mazak Quick Turn Nexus 200MY Multi-Axis CNC Lathe, Y-Axis, Milling Tool, Parts Catcher, Tailstock, Mist Collector, Chip Conveyor, Synchronized Mill Tapping, Scale Feedback
| Max Swing | 26.5" | 673.1 mm |
| # Axis | 4 | 4 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 35 hp | 26.1 kW |
| Power (Milling Tool) | 7.5 hp | 5.6 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Max RPM (Milling Tool) | 4,500 RPM | 4,500 RPM |
| X-Axis Travel | 7.09" | 180.09 mm |
| Y-Axis Travel | ±2.0" | ±2.0" |
| C-Axis Rotation | 360° | 360° |
| Z-Axis Travel | 22.64" | 575.06 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
| Sub Spindle | No | No |
| Rapid Traverse (X/Z) | 1,181 in/min. | 1,181 in/min. |
| Rapid Traverse (Y) | 472 in/min. | 12 m/min. |
| Turret Capacity | 12 | 12 |
| Control | CNC (Mazatrol 640T) | CNC (Mazatrol 640T) |
| Dimensions | 137″ X 86.6" X 82.7" | 137″ X 86.6" X 82.7" |
| Weight | 10,807 lb | 10,807 lb |
INCLUDED TOOLS
Static Holders – VDI 40
1" Turning Holder (FWD – right hand) OH110 – Qty 3
1" Turning Holder (REV – left hand) OH100 – Qty 1
Boring Bar Holder 1-1/2" ID BH040 – Qty 2
1" ID Boring Bar Socket – Qty 1
1-1/4" ID Boring Bar Socket – Qty 1
Drill Socket M.T. #2 – Qty 1
Facing Holder FH010 – Qty 1
U-Drill Holder 40mm ID UH010 – Qty 1
Cap Plug TE500 – Qty 1
Driven Holders – VDI 40
V-Type Offset Driven Tool ER32 (6,000 rpm) MCX20 – Qty 1
H-Type Driven Tool ER32 (6,000 rpm) MCHX4 – Qty 2
ER32 Collet 12mm (.472") – Qty 1
ER32 Collet 16mm (.630") – Qty 1
Y-axis
Milling tool
C-axis
Parts catcher
Servo tailstock
FX 4000 mist collector
Chip conveyor
Scale feedback
Synchronized mill tapping
User macros
Assorted tooling
